Milestone ultraWAVE 3 - High Pressure Compressor (Optional)

Milestone Srl MA245-003 – ultraWAVE 3 – User Manual
45
High pressure compressor (Optional)
The High pressure compressor, allows to load the pressure in the reactor, in case the gas line inlet is
lower than 50 bar.
Therefore, this configuration is useful for all laboratories that do not have the possibility of keeping a
cylinder near the instrument, or laboratories that do not have a high-pressure line (at least 50 bar)
available to which they can connect the instrument directly or with the automatic gas loading module.
In addition, this configuration includes the automatic flushing of pressure line, therefore it is not
necessary to perform manual flushing for cleaning the pressure line (described in the cleaning /
maintenance chapter).
High pressure compressor can be connected to a gas cylinder or a Nitrogen generator unit.

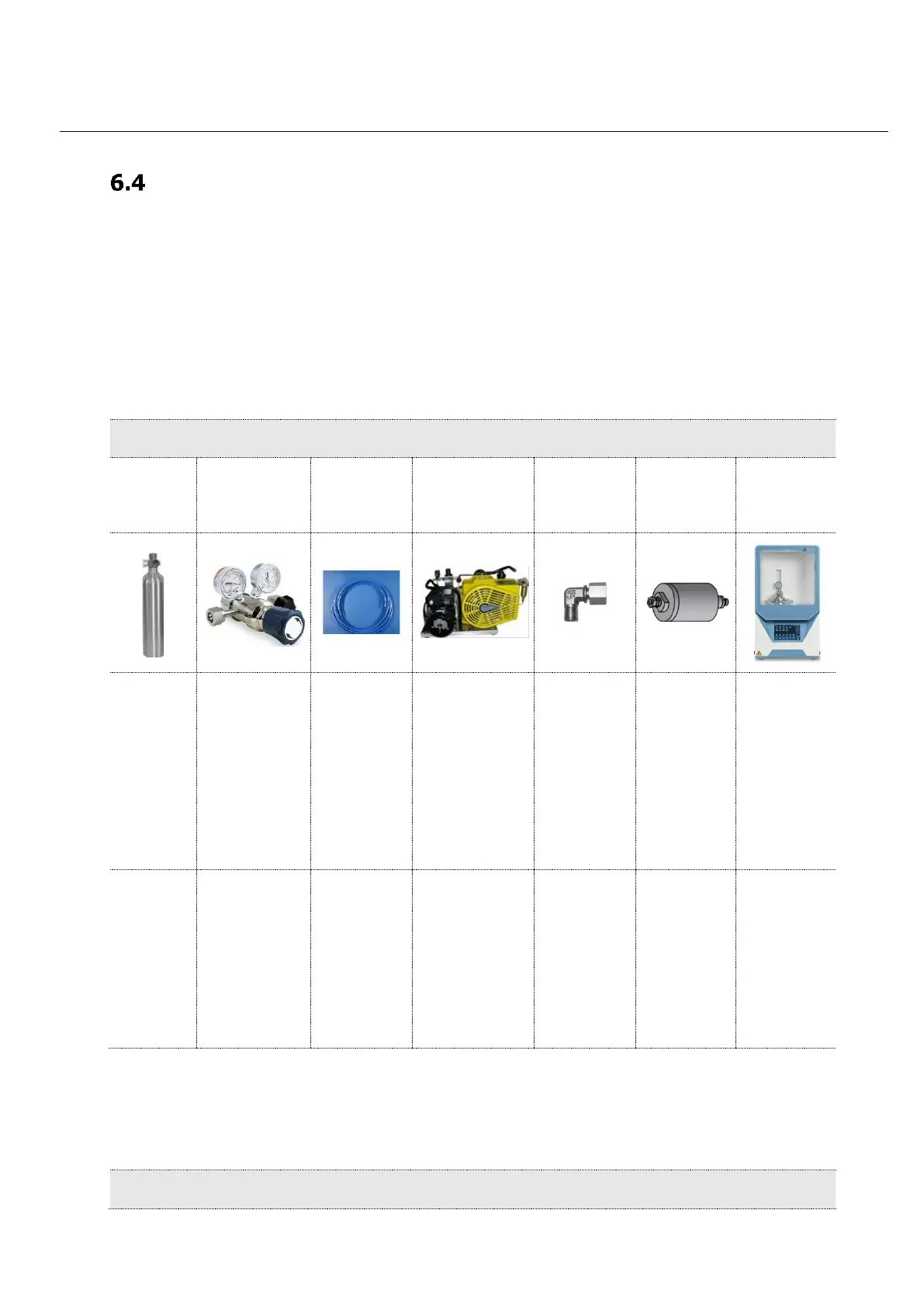

High pressure compressor connected to Nitrogen / Argon cylinder
Gas
source
Standard
pressure
regulator
Connectio
n with
booster
High
pressure
compressor
Connectio
n with
filter
Filter
ultraWAV
E 3 unit
Nitrogen /
Argon
cylinder
Standard
pressure
regulator (0-
10 bar)
Pneumatic
booster
requires 4-
10bar
pressure
Polymer
tube: 2m
length
6mm (ID) –
8mm (OD)
High pressure
compressor to
load pressure
into the
ultraWAVE
reactor
Connection
for filter
Filter with
non-return
valve to
avoid
particles
from
compressor
Microwave
unit
Not
included
in the
ultraWAV
E 3
package.
Not included
in the
ultraWAVE 3
package
P/N SL0050
Included in
the
compressor
package
P/N UC86050
Optional, can
be ordered
separately
P/N SG0080
Elbow
shaped
fitting.
Included in
the
compressor
package
P/N
CLAR0635A
Included in
the
ultraWAVE
3 package
High pressure compressor connected to Nitrogen generator
