Milestone ultraWAVE 3 - Installation of the High-Pressure Compressor

Milestone Srl MA245-003 – ultraWAVE 3 – User Manual
46
Gas
source
Standard
pressure
regulator
Connectio
n with
booster
High
pressure
compressor
Connectio
n with
filter
Filter
ultraWAV
E 3 unit
Nitrogen
generator
Standard
pressure
regulator (0-
10 bar)
Pneumatic
booster
requires 4-
10bar
pressure
Polymer
tube: 2m
length
6mm (ID) –
8mm (OD)
High pressure
compressor to
load pressure
into the
ultraWAVE
reactor
Connection
for filter
Filter with
non-return
valve to
avoid
particles
from
compressor
Microwave
unit
Not
included
in the
ultraWAV
E 3
package.
Not included
in the
ultraWAVE 3
package
P/N SL0050
Included in
the
compressor
package
P/N UC86050
Optional, can
be ordered
separately
P/N SG0080
Elbow
shaped
fitting.
Included in
the
compressor
package
P/N
CLAR0635A
Included in
the
ultraWAVE
3 package

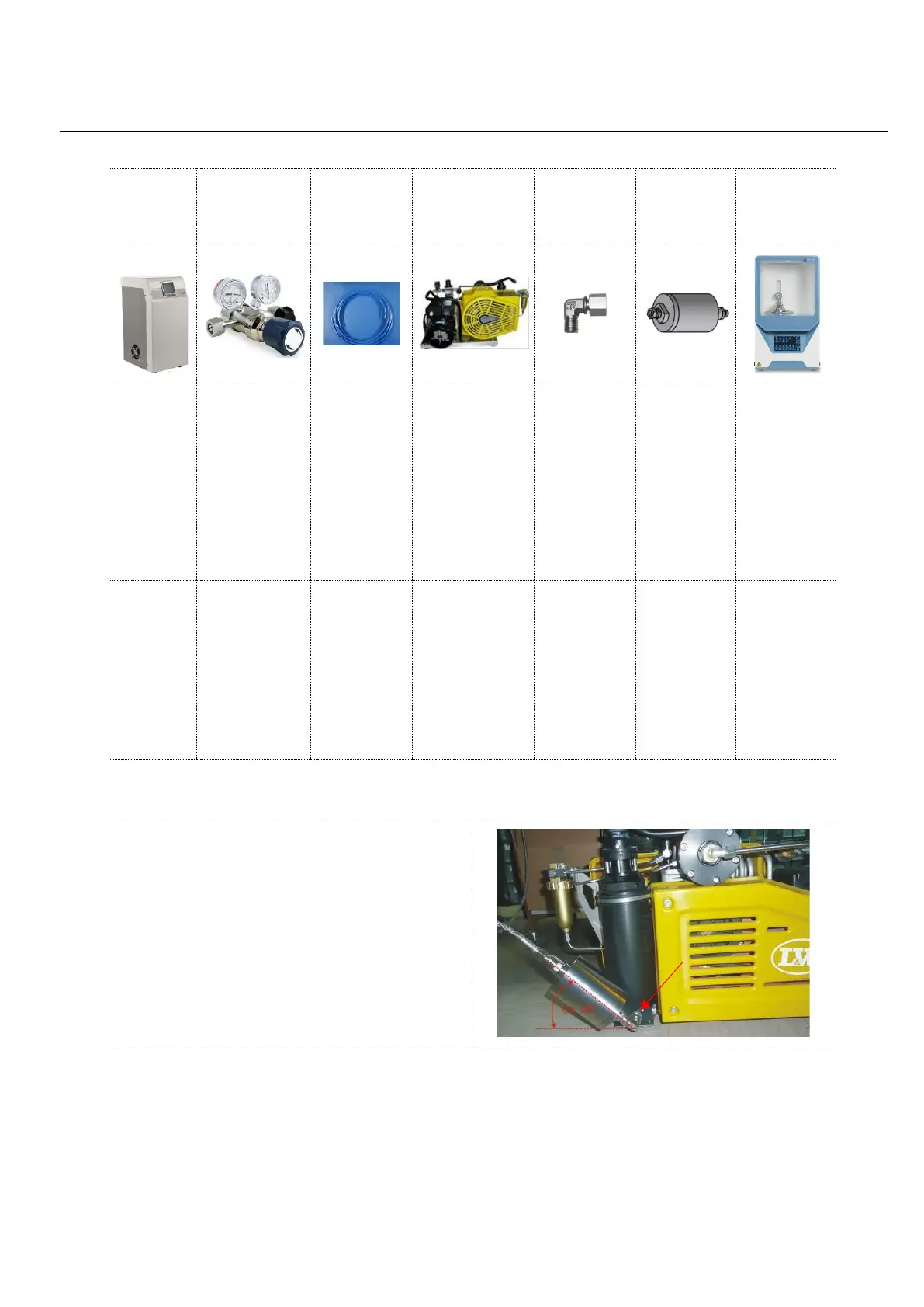

Installation of the High-pressure compressor
Connect the elbow shaped fitting to the outlet of
the compressor and the filter.
Adjust the filter at ca. 45° and fix the elbow
shaped fitting to the compressor (with a SW19mm
wrench).
