6 PRESSURE LINE INSTALLATION
Connection of ultraWAVE 3 to the Nitrogen or Argon gas line
ultraWAVE 3 requires a pressure line in order to preload the reactor with Nitrogen or Argon before the
microwave digestion program.
The initial pressure to be loaded into the ultraWAVE 3 reactor is 40 bar, therefore it is necessary to have
an inlet pressure of at least 50 bar.
Depending on the needs of the laboratory, Milestone provides different options for connecting and
loading the gas into the ultraWAVE 3 reactor:
• Direct connection to the gas cylinder
• Pneumatic booster
• High pressure compressor
Direct connection to the gas cylinder

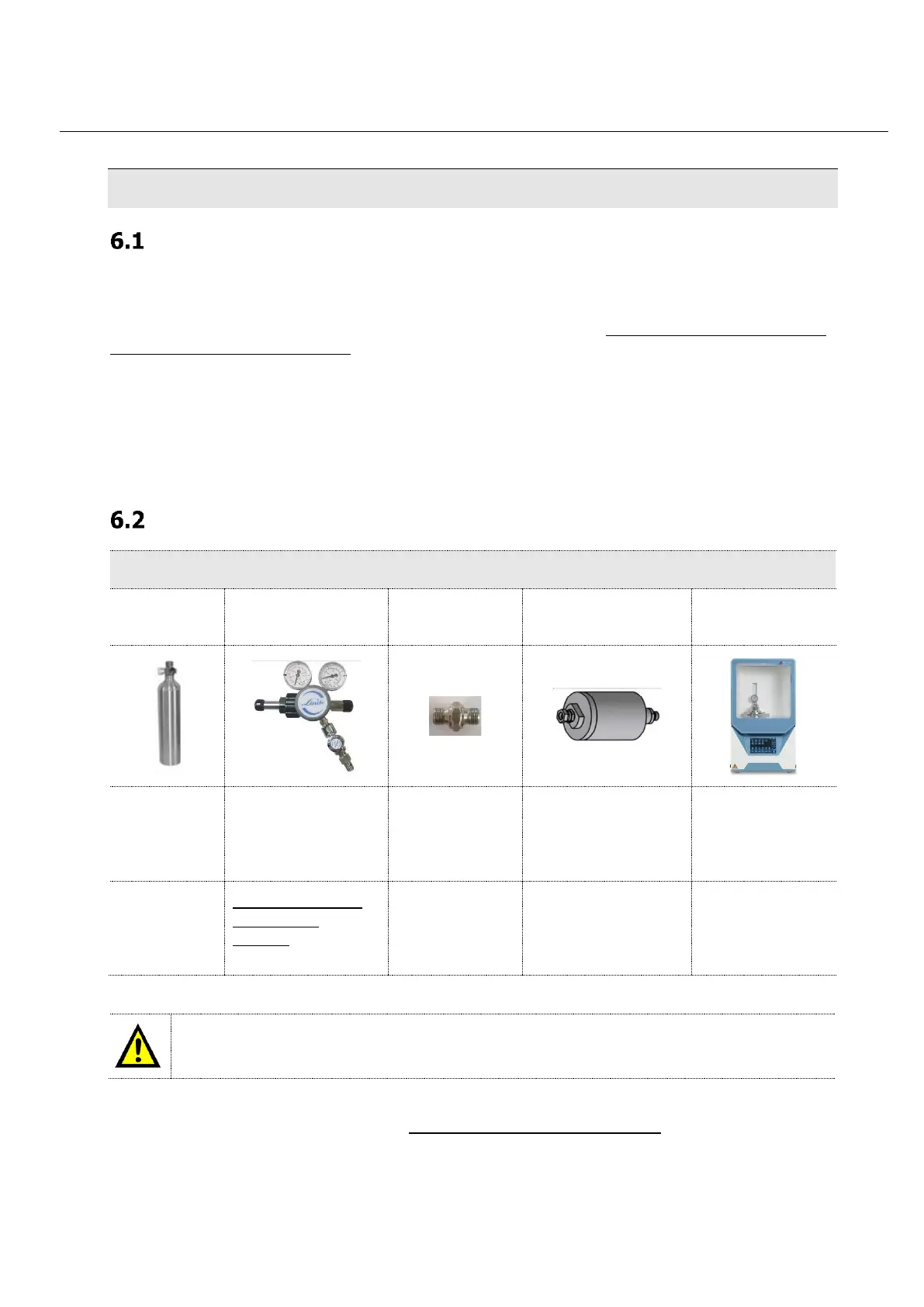

Direct connection to the gas cylinder (manual loading)
Gas source
High pressure
regulator
Connection
with filter
Filter
ultraWAVE 3
unit
Nitrogen or
Argon
cylinder 200
bar
High pressure
regulator (0-100 bar)
for gas cylinders 200
bar.
BSP connection
(male 1/4"-male
1/4")
Filter with non-return
valve to avoid
particles from cylinder
Microwave unit
Not included
in the
ultraWAVE 3
package.
Not included in the
ultraWAVE 3
package
P/N 65793
Included in the
ultraWAVE 3
package
P/N CLAR0635A
Included in the
ultraWAVE 3 package
For gas loading, the appropriate safety rules must be strictly followed (for any questions please
contact the gas supplier).
To connect the Nitrogen or Argon cylinder directly to the unit, prepare the following items:
• A suitable high-pressure regulator (this is not included with ultraWAVE 3. See the pre-installation
file for more details about the high-pressure regulator to use)
• Filter connection (P/N 65793)
• Filter (P/N CLAR0635A)
