Milestone Srl MA245-003 – ultraWAVE 3 – User Manual
39
• High pressure hose (P/N MCL0666)

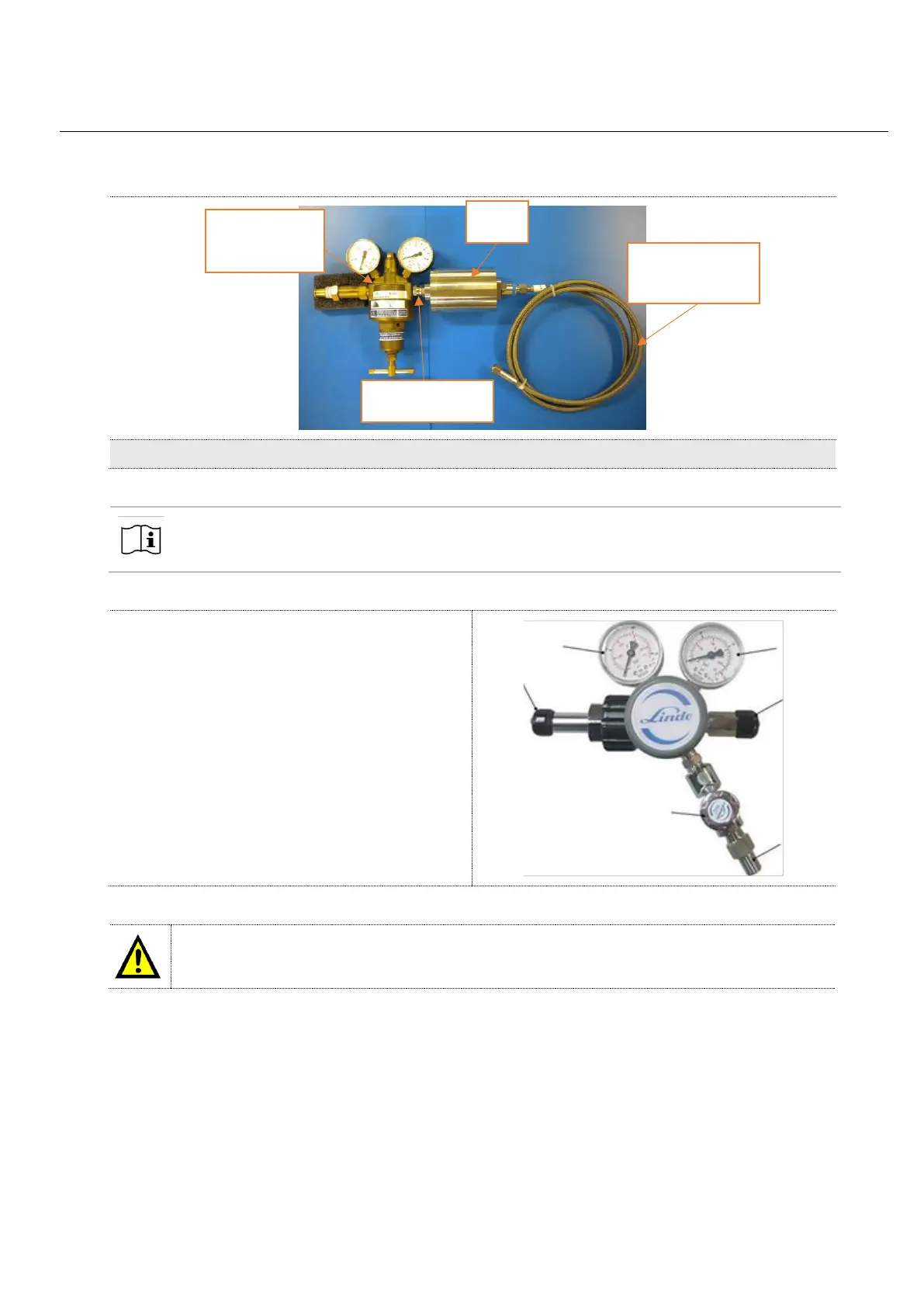

Pressure reducer with high pressure hose
Always place the gas bottles in safe place and conditions to prevent accidental fall-down, and
protect them against frost and overheat.
A. Connection gas bottle
B. High pressure manometer (400 bar)
C. Medium pressure manometer (80 or 100
bar)
D. Overpressure valve
E. Outlet connection
F. Stop valve (optional)
G. Screw for working pressure setting
Always follow the safety prevention rules when working with high pressure cylinder.
• Set the cylinder near the ultraWAVE 3 unit in conformity with the recognized safety regulations.
• Unscrew the cylinder cap.
• Carefully check the valve thread of cylinder for possible damages.
• Connect the High-pressure regulator to the nitrogen cylinder through connection (A)
• Loosen completely the screw (G) used for pressure setting, so that the compression spring is
completely untightened.
