10 Communications via USB
122

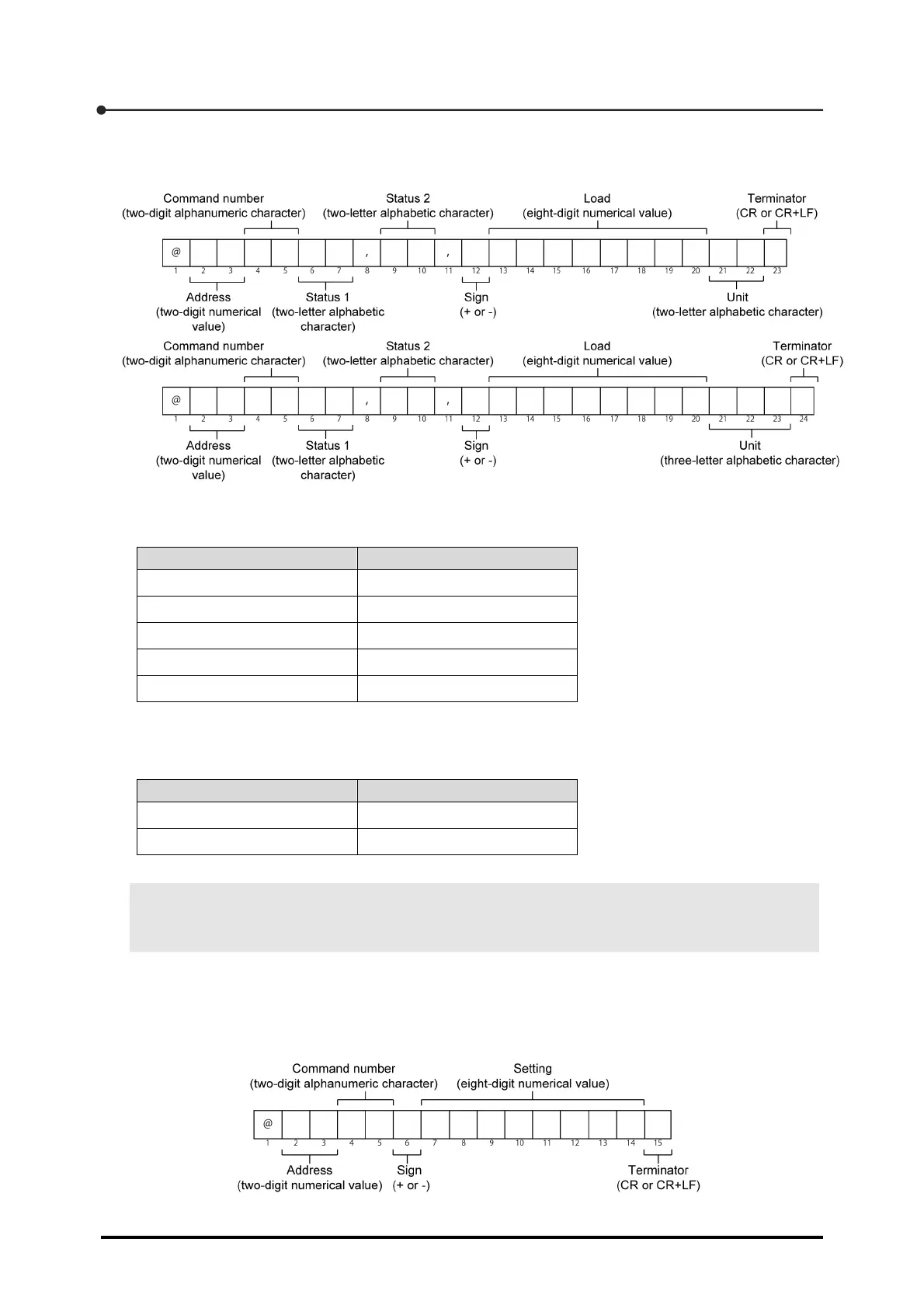

When you specify command number 26 (Reference the displayed load with status), the following
data format is returned:
This time, the Status 1 field has a two-letter alphabetic character describing the condition of the
CSD-709, among those listed below.
Alphabetic character Meaning
OL OL
TR TRACK
PE PEAK
ME MEAS
ED END
Also, Status 2 field has a two-letter alphabetic character showing the meaning of the numerical value
entered into the Load field (eight-digit numerical value), among those listed below.
Alphabetic character Meaning
PE Peak
TR Track
POINT
Whether the number of digits of unit should be two or three is determined by the setting of function F-44.
▼ Referencing the comparison value via command numbers 30 to 39
When you specify command number 30 (Reference the comparison value (S0)), 31 (Reference the comparison value (S1)), 32
(Reference the comparison value (S2)), or 39 (Reference the current calibration number), the following data format is returned:
