▼ Referencing via command numbers 40 to 45

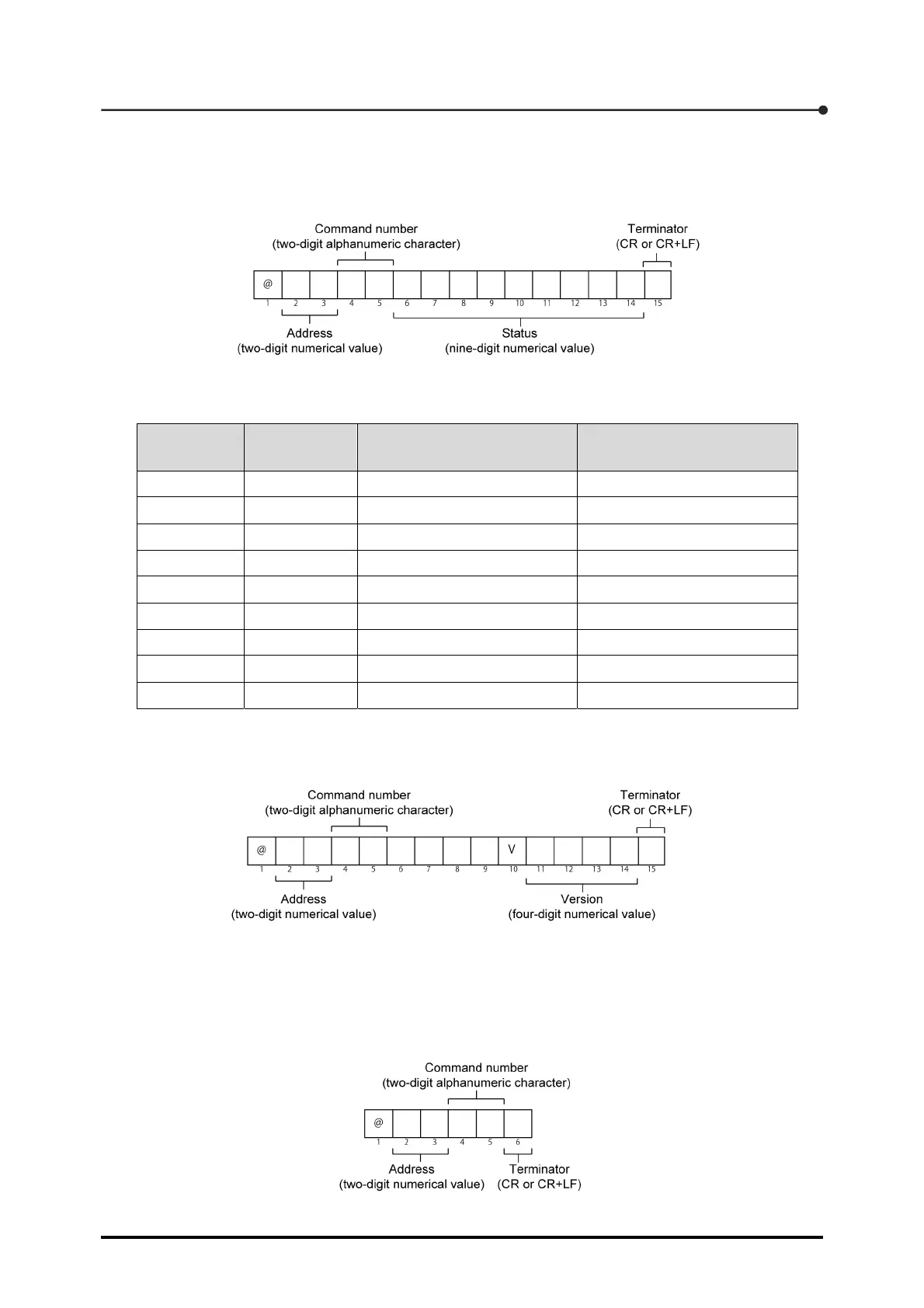

When you specify command number 40 (Reference the status of the status window (LED)) or 41
(Reference the status of the external control output), the following data format is returned:
This time, the nine-digit numerical value showing the status takes [0] (Off) or [1] (On). Individual
digits have the following meanings.
Digit
Number in
illustration
40 (Reference the status of
the status window (LED))
41 (Reference the status of
the external control output)
Ninth digit
6 SEL1 OUTPUT1
Eighth digit
7 SEL2 OUTPUT2
Seventh digit
8 CHECK OUTOUT3
Sixth digit
9 HOLD OUTOUT4
Fifth digit
10 PEAK OUTPUT5
Fourth digit
11 MEAS OUTPUT6
Third digit
12 END
－(Not used)
Second digit
13 LOCK
－(Not used)
First digit
14
－ (Not used) －(Not used)
When you specify command number 45 (Reference the version), the following data format is
returned:
▼ Setting via command numbers 50 to 69
When you specify command number 50 (Set PEAK/TRACK), 51 (Set RESET), 52 (Execute the zero
set), 53 (Execute the zero set clear), or 54 (Forcibly terminate multimode), the following command
format is sent:
