E Voltage Output Card CSD-709-29
158

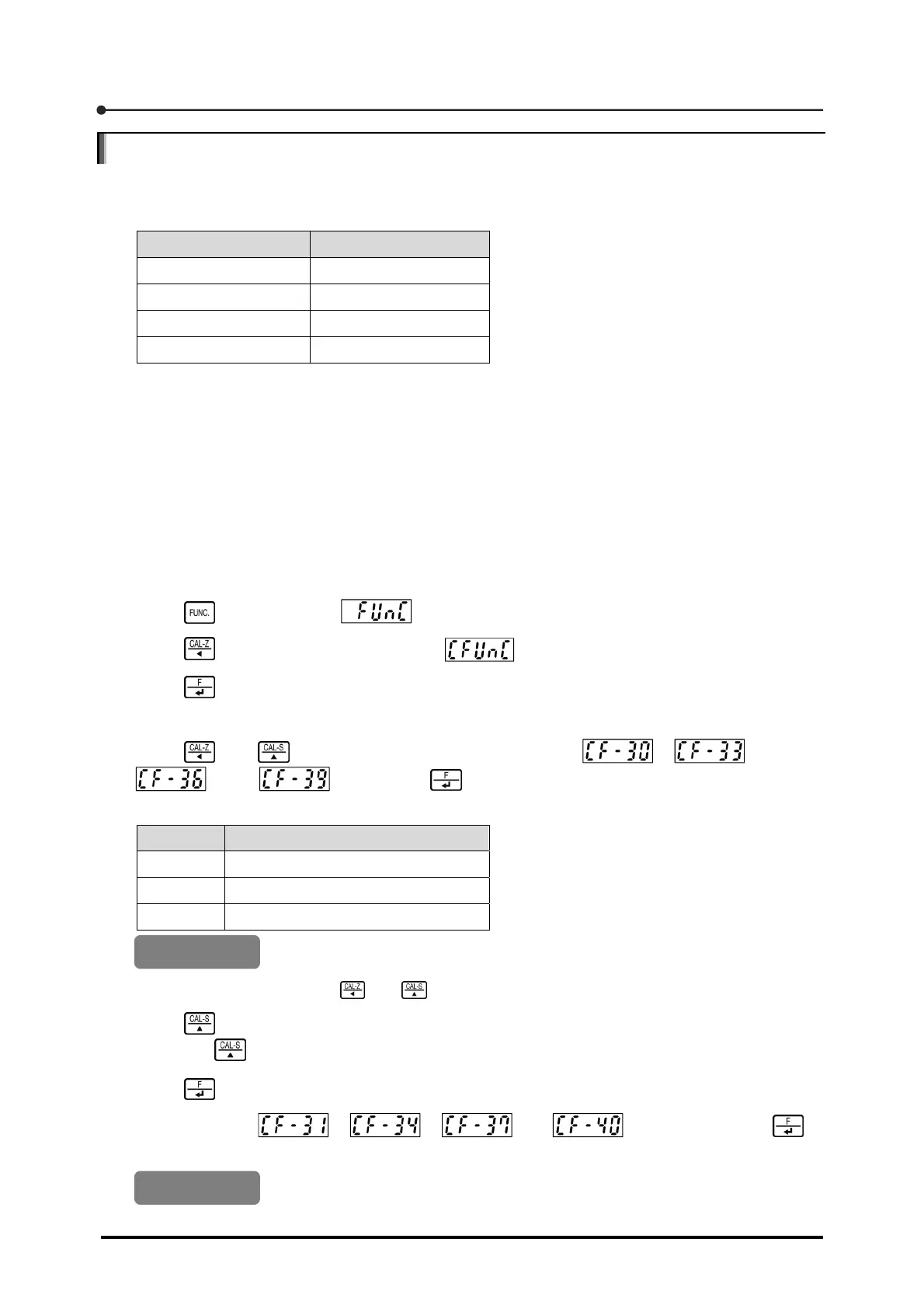

E.2 Setting
The voltage output card outputs the voltage according to settings of C functions CF-30 to CF-41
connected to the calibration numbers, as shown below.
Calibration number C function used
0 CF-30 ~ 32
1 CF-33 ~ 35
2 CF-36 ~ 38
3 CF-39 ~ 41
In each of C functions connected to these calibration numbers, you should give the following
settings.
What parameter, display interlock, track, or peak, should be defined as the output target.
Minimum display value
Maximum display value
Described below are setting procedures used to output the voltage according to the calibration
numbers.
1. Press once to display .
2. Press once to change the display to .
3. Press .
C Function mode is activated, and the display changes to a two-digit numerical value prefixed by [CF-].
4. Using and , change the numerical value to any of , ,
, and , then press .
Any of the following numbers showing the currently set output target appears.
Number Output target
0 Display interlock
1 Track
2 Peak
0 (Display interlock)
For setting procedures with and , see Section 1.6, "Basic key operation".
5. Press to set the output target.
Whenever is pressed, the number times through the values from 0 to 2 in ascending order.
6. Press .
7. After confirming , , , or is displayed, press .
The currently set minimum display value appears.
0
Default
Default
