F Current Output Card CSD-709-07
165
F
Current Output Card CSD-709-07
F.1 Wiring
WARNING
Turn off power before connecting or disconnecting cables. The CSD-709 is not
equipped with a power switch. When you conduct work with the CSD-709 turned on,
electric shock or equipment damage may result.
CAUTION
The connector board on the rear panel of the CSD-709 is a resin component. Do not
drop it or subject it to strong impact.
Always use shielded cables, except for power cables. Separate cables from noise
sources, including power cables of peripheral devices and control I/O.
In the conduit, arrange cables only for the CSD-709. Avoid joint use with other lines
in the conduit.
Ground the CSD-709 based on Type D single grounding using a protective ground
connector. Also, do not use the grounding line of the CSD-709 to ground the power
supply system.

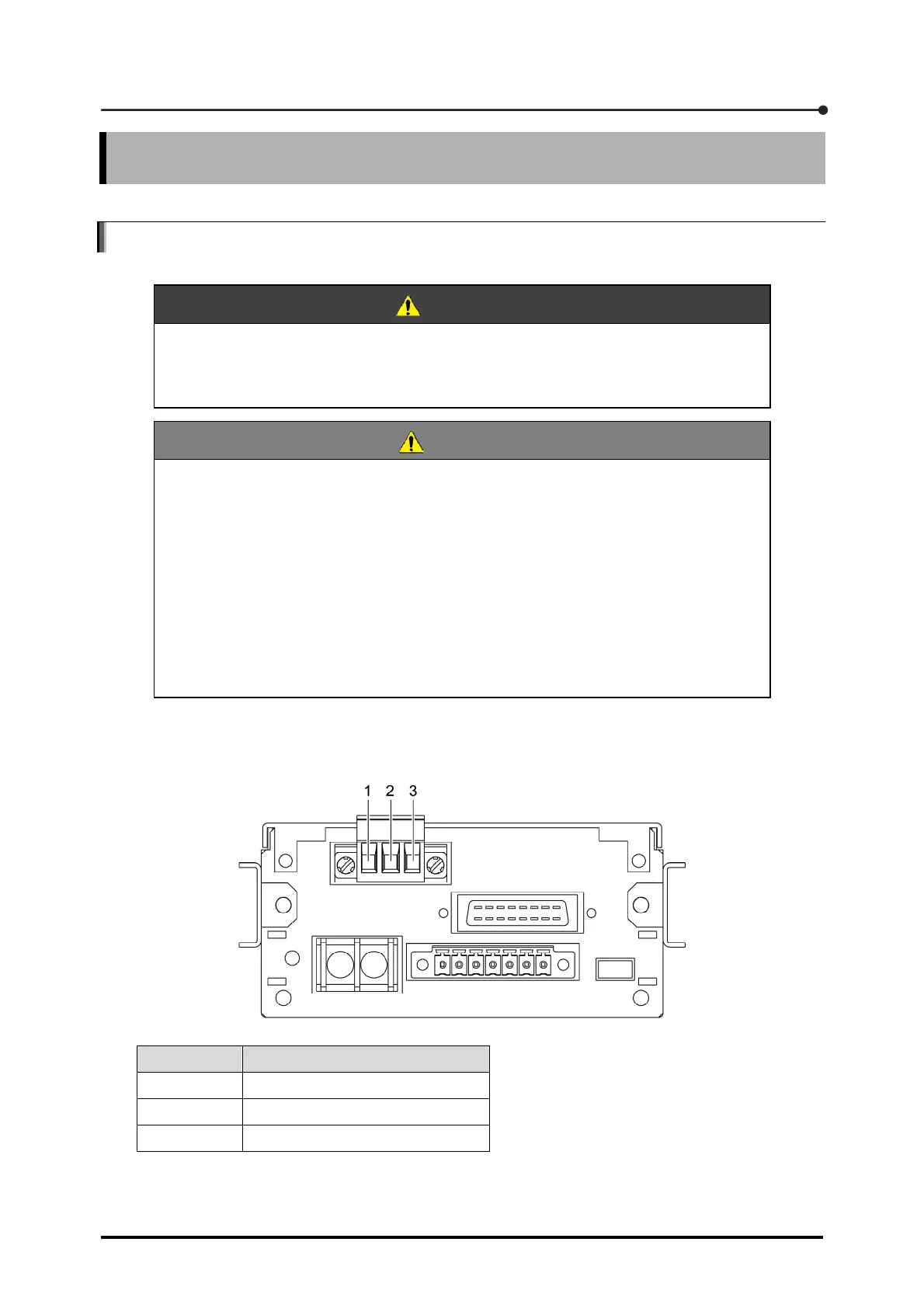

Using the current output card can output current ranging from 4 to 20 mA in agreement with the
displayed value. Shown below are terminals arranged on the current output card.
No. Terminal
1 Current output (+)
2 Current output (-)
3 Frame ground (F.G.)
To Next Page
