Minebea CSD-709 User Manual

E Voltage Output Card CSD-709-29
162

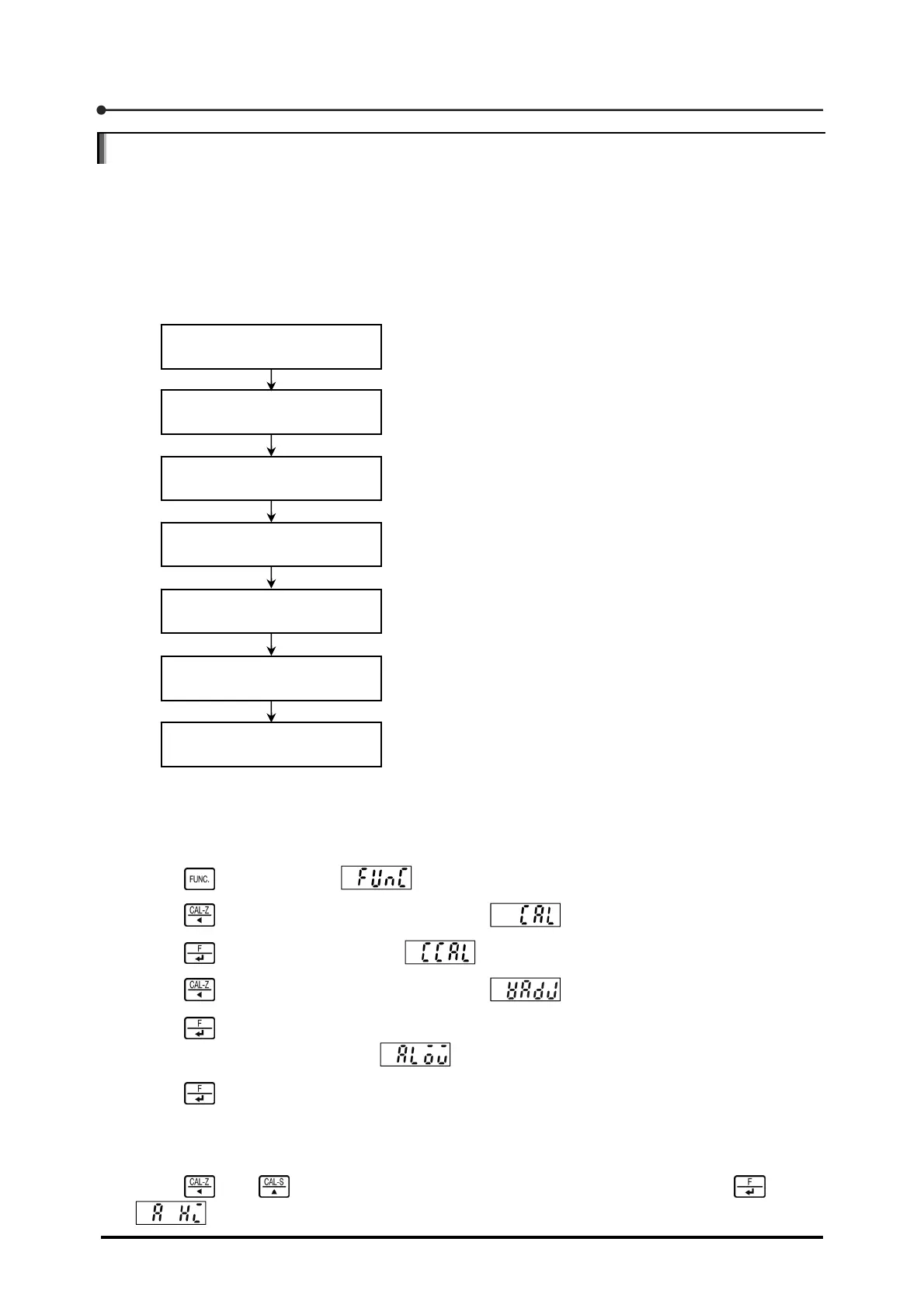

E.4 Adjustment
After the voltage output from the voltage output card is calibrated, an error may be generated
between displayed and actual voltages due to the environment in which the CSD-709 is used. In
such a case, fine adjustment should be implemented for the output from the voltage output card
using the following procedures.
Described below are fine adjustment procedures.
1. Press once to display .
2. Press three times to change the display to .
3. Press to change the display to .
4. Press three times to change the display to .
5. Press .
The VADJ mode is activated and appears.
6. Press .
The current load appears. Adjust the input from the measuring unit so that it will be the minimum
display value.
7. Using and , adjust the voltage of the minimum display value, then press .
appears.
Transition to the VADJ mode
Adjustment of input from
measuring unit
Adjustment of input from
measuring unit
Registration
Adjustment of voltage
Adjustment of voltage
Transition to the CAL
selection mode
To execute calibration, enter CAL selection mode.
To fine-adjust the output voltage, enter VADJ mode.
A
djust the input from the measuring unit so that it will
be the minimum display value.
A
djust the voltage of the minimum display value.
A
djust the input from the measuring unit so that it will
be the maximum display value.
A
djust the voltage of the maximum display value.
Register the calibration data.
