Minebea CSD-709 User Manual

F Current Output Card CSD-709-07
168

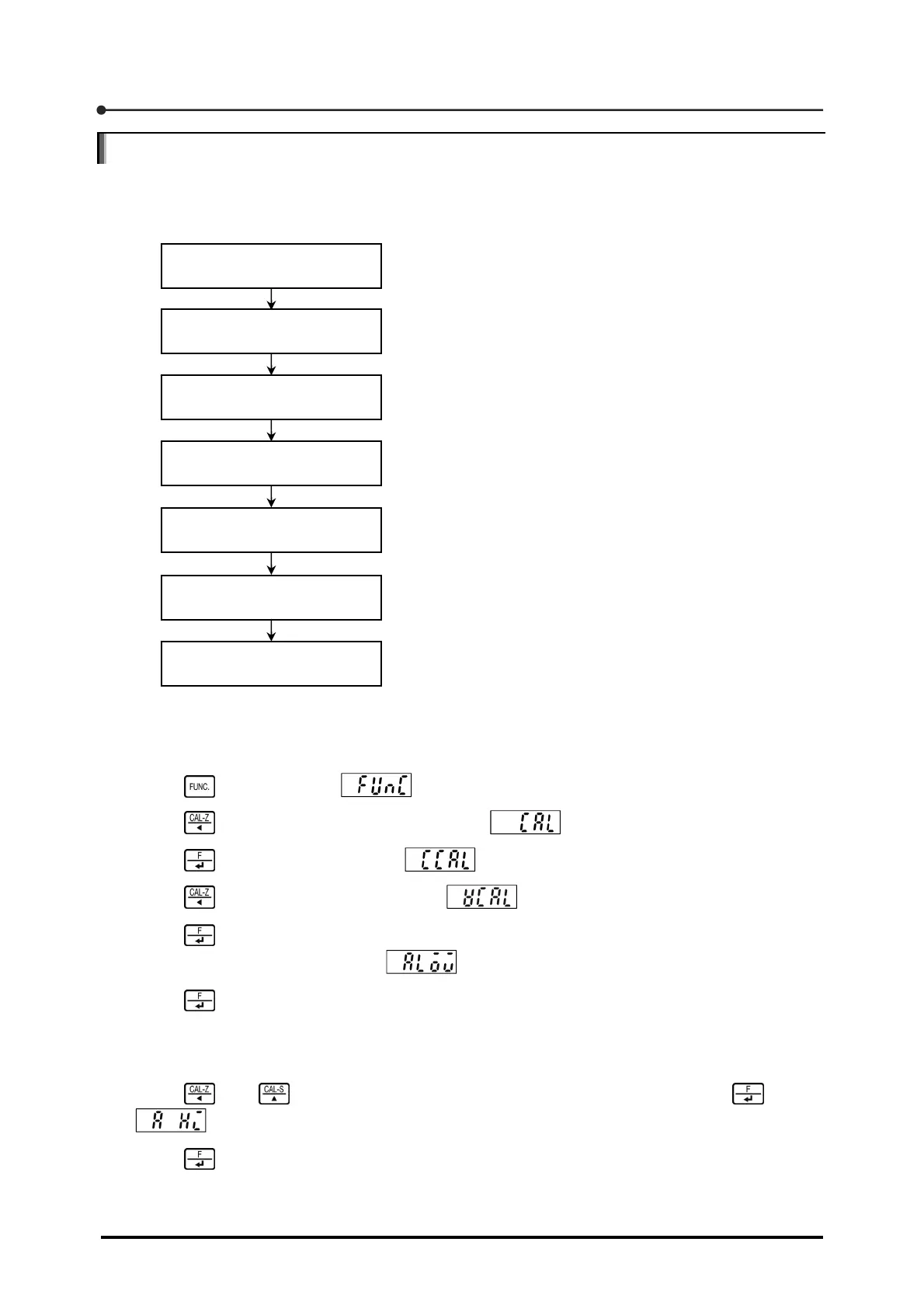

F.3 Calibration
Once you set the current output from the current output card within the display range from 4 to 20 mA,
you should calibrate the current actually output from the card using the following procedures.
Described below are the output current calibration procedures.
1. Press once to display .
2. Press three times to change the display to .
3. Press to change the display to .
4. Press twice to change the display to .
5. Press .
The VCAL mode is activated, and appears.
6. Press .
The current load appears. Adjust the input from the measuring unit so that it will be a minimum
display value.
7. Using and , adjust the current of the minimum display value, then press .
appears.
8. Press .
The current load appears. Adjust the input from the measuring unit so that it will be a maximum
display value.
Transition to the VCAL mode
Adjustment of input from
measuring unit
Adjustment of input from
measuring unit
Registration
Adjustment of current
Adjustment of current
Transition to the CAL
selection mode
To execute calibration, enter CAL selection mode.
To calibrate the output current, enter VCAL mode.
A
djust the input from the measuring unit so that it will
be the minimum display value.
A
djust the current of the minimum display value.
A
djust the input from the measuring unit so that it will
be the maximum display value.
A
djust the current of the maximum display value.
Register the calibration data.
