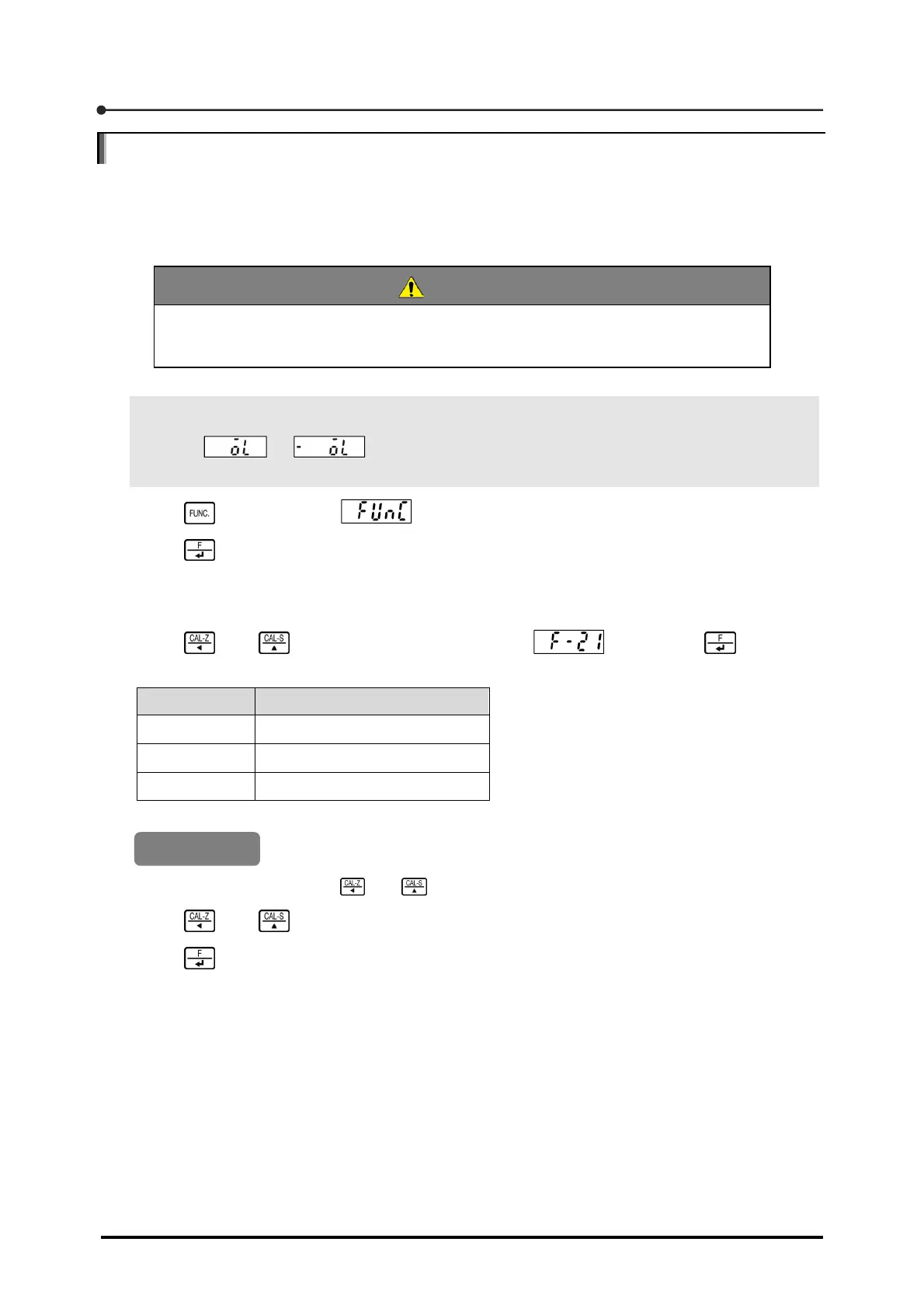

6 Settings Related to Comparison
84
6.3 Setting the comparator operating condition
Which parameter, track, or peak to be defined as a comparison target in the comparator is set to
Function F-21. You should set the post-comparison action to Function F-22. Described below are the
setting procedures for comparison targets and operating conditions.
CAUTION
If you fail to correctly set the on/off operation of the open collector output for the
comparison value, peripheral devices may malfunction.
POINT
When or is observed in the load window, the displayed value used in the
comparison by the comparator is handled as [+∞ (infinity)] or [-∞ (infinity)].
1. Press once to display .
2. Press .
Function mode is activated, and the display changes to two-digit numerical value prefixed by
[F-].
3. Using and , change the numerical value to , then press .
The three-digit number showing the currently set comparison target appears.
Digit Comparison target
Third digit S2
Second digit S1
First digit S0
The comparison target is indicated by [0] (Track) or [1] (Peak).
000
For setting procedures with and , see Section 1.6 "Basic key operation".
4. Using and , set the comparison target.
5. Press .
Default
[F-21], [F-22]
To Next Page
