7 Settings Related to Operation
99

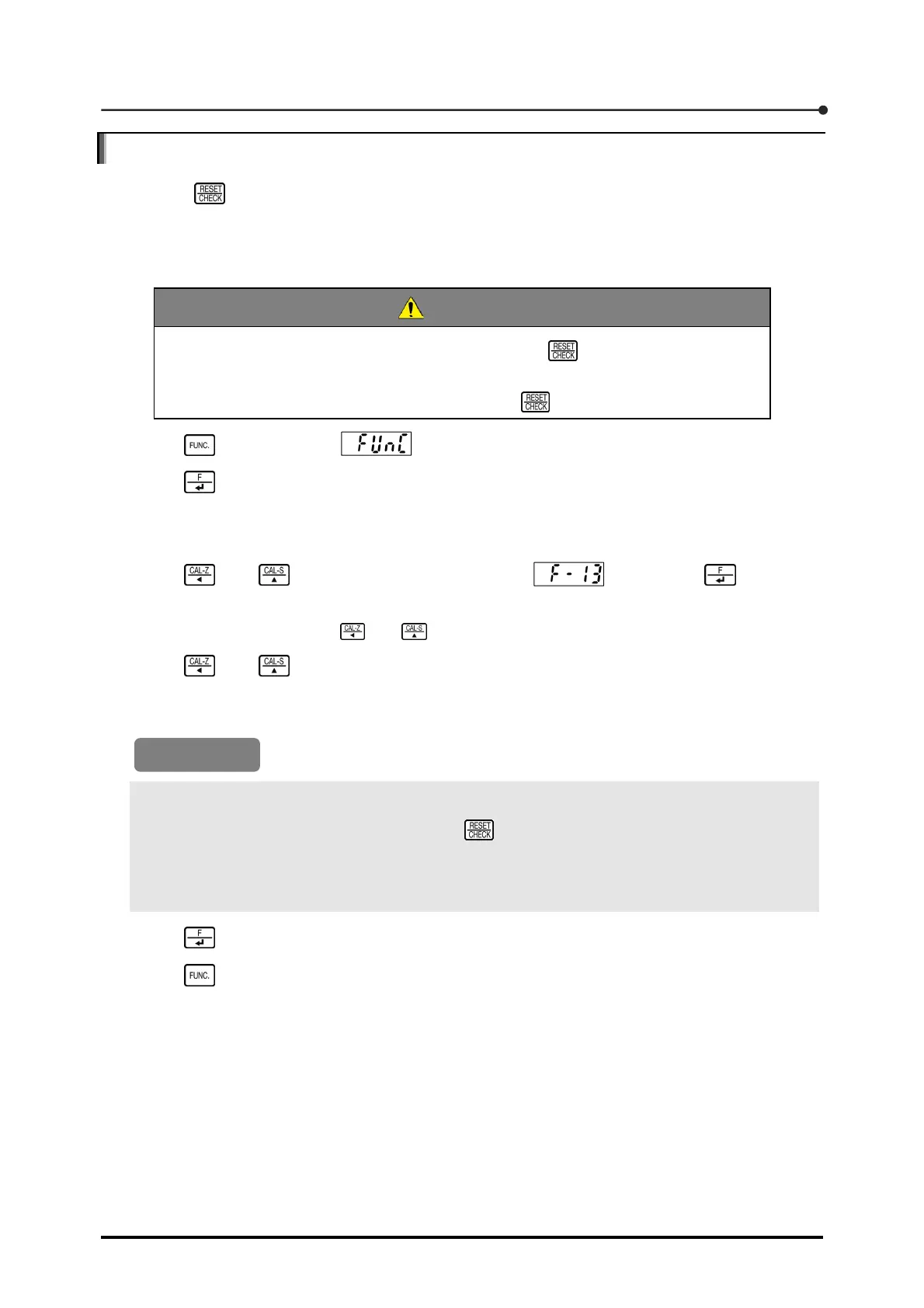

7.6 Output of CHECK value
By pressing to display the already determined value in the load window, you can check
whether the currently selected calibration value is correct. This time, the value determined based on
the voltage set to function F-13 as the CHECK value appears in the load window. Described below
are the CHECK value setting procedures.
CAUTION
If you display the CHECK value output by pressing , the [CHECK] LED in the
status window goes on.
To terminate output of the CHECK value, press once again.
1. Press once to display .
2. Press .
The Function mode is activated, and the display changes to a two-digit numerical value prefixed
by [F-].
3. Using and , change the numerical value to , then press .
The currently set CHECK value appears.
For setting procedures with and , see Section 1.6, "Basic key operation".
4. Using and , set the CHECK value.
You can set any value between 00 and 30. The CHECK value actually output in mV/V is the
displayed value multiplied by 0.1.
3 (0.3 mV/V)
POINT
If [00] is set as CHECK value, even pressing will not change the value displayed in the load
window, and the [CHECK] LED will go on. This is because the voltage connected to the set
CHECK value is 0.0 mV/V.
The set CHECK value is applied to all calibration results for calibration numbers 0 to 3.
5. Press .
6. Press twice to return to Measurement mode.
Default
[F-13]
