K Serial Interface Card CSD-709-77
197
K
Serial Interface Card CSD-709-77
K.1 Connection
WARNING
Turn off power before connecting or disconnecting cables. The CSD-709 is not
equipped with a power switch. When you conduct work with the CSD-709 turned on,
electric shock or equipment damage may result.
CAUTION
The connector board on the rear panel of the CSD-709 is a resin component. Do not
drop it or subject it to strong impact.
Always use shielded cables, except for power cables. Separate cables from noise
sources, including power cables of peripheral devices and control I/O.
In the conduit, arrange cables only for the CSD-709. Avoid joint use with other lines
in the conduit.
Ground the CSD-709 based on Type D single grounding using a protective ground
connector. Also, do not use the grounding line of the CSD-709 to ground the power
supply system.

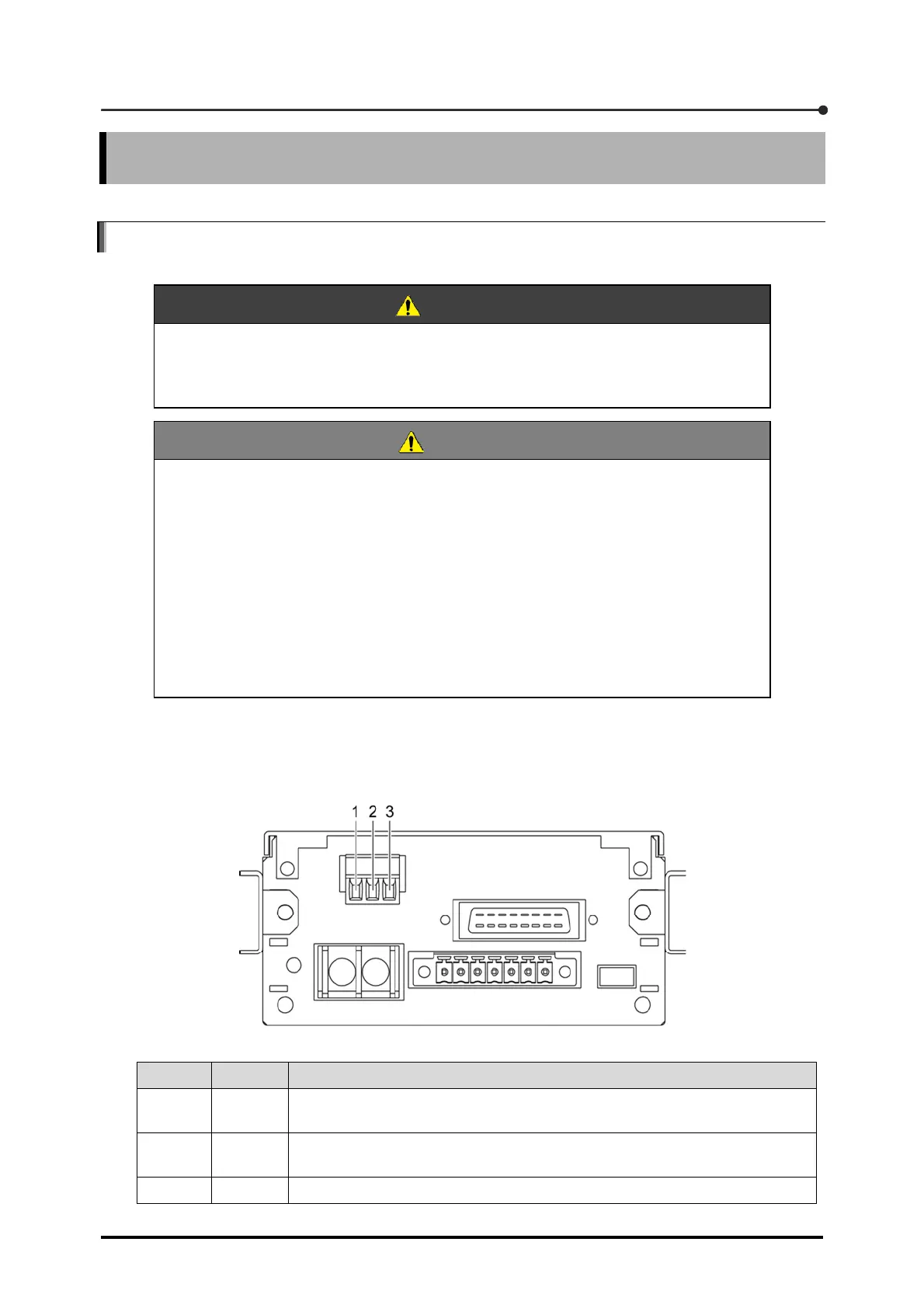

Using the serial interface card can output the load displayed on the CSD-709 to the printer. Shown
below are terminals arranged on the serial interface card.
Pin No. Signal Description
1 SI/F+
Connect this pin to the serial interface terminal (+) of the device to be
plugged in.
2 SI/F-
Connect this pin to the serial interface terminal (-) of the device to be
plugged in.
3 F.G. Frame ground
