E Voltage Output Card CSD-709-29
160

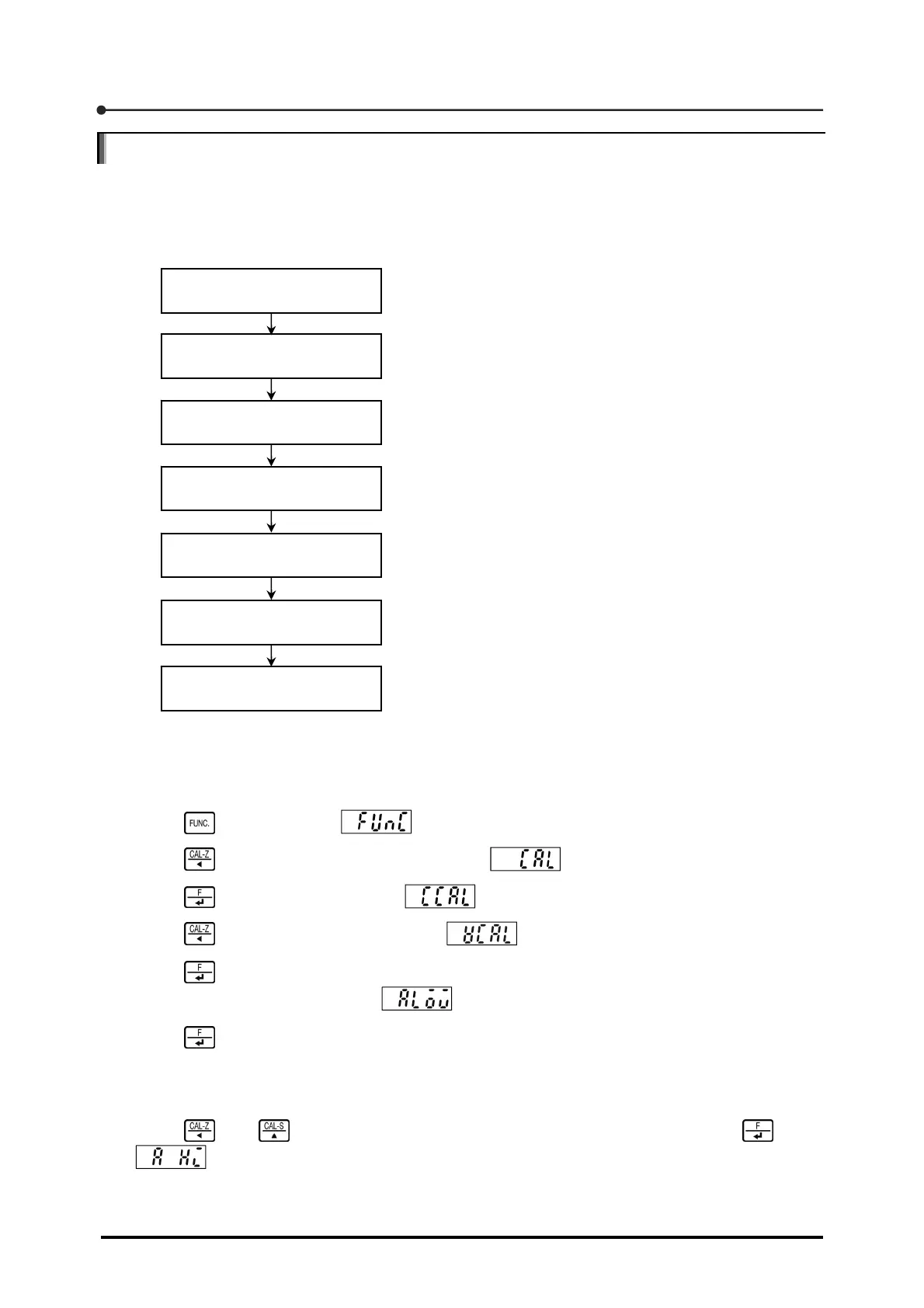

E.3 Calibration
Once you set the display range of ±10 V output from the voltage output card, you should calibrate the
voltage actually output from the card using the following procedures.
Described below are output voltage calibration procedures.
1. Press once to display .
2. Press three times to change the display to .
3. Press to change the display to .
4. Press twice to change the display to .
5. Press .
The VCAL mode is activated and appears.
6. Press .
The current load appears. Adjust the input from the measuring unit so that it will be minimum
display value.
7. Using and , adjust the voltage of the minimum display value, then press .
appears.
Transition to the VCAL mode
Adjustment of input from
measuring unit
Adjustment of input from
measuring unit
Registration
Adjustment of voltage
Adjustment of voltage
Transition to the CAL
selection mode
To execute calibration, enter CAL selection mode.
To calibrate the output voltage, enter VCAL mode.
djust the input from the measuring unit so that it will
be the minimum display value.
djust the voltage of the minimum display value.
djust the input from the measuring unit so that it will
be the maximum display value.
djust the voltage of the maximum display value.
Register the calibration data.
To Next Page
