C Character Display Pattern
144
C
Character Display Pattern

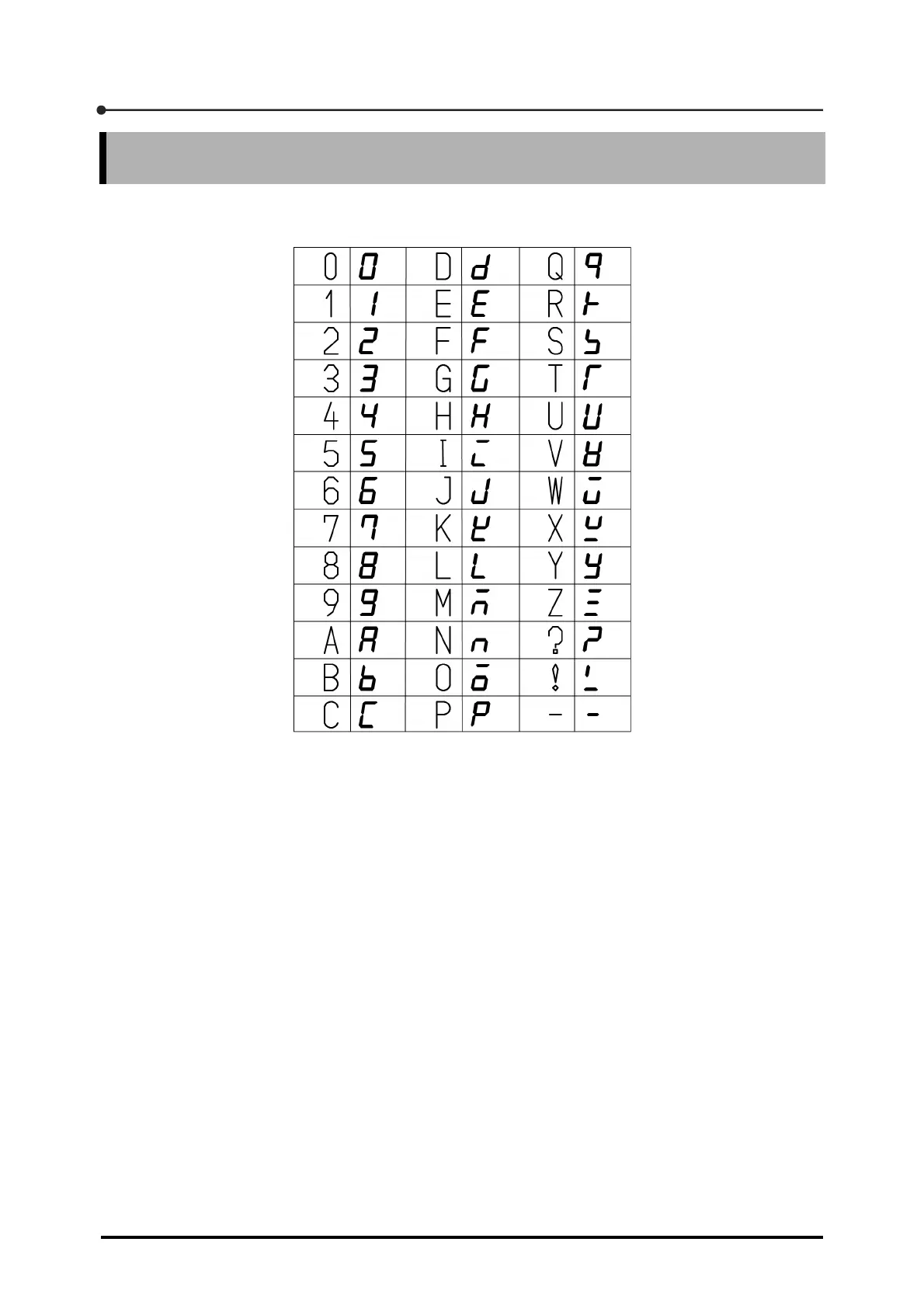

Shown below are display patterns in the 7-segment LED of the CSD-709.
