2 Installation and Wiring
17
2
Installation and Wiring
2.1 Installation
2.1.1 Precautions
Use the CSD-709 within the temperature and humidity ranges specified below.
Ambient temperature -10°C ~ 50°C
Ambient humidity 85 %RH, max (No condensation is permitted.)
WARNING
 Do not install the CSD-709 in any of the locations listed below.
 Locations exposed to direct sunlight or high temperatures
 Damp locations
 Locations exposed to vibrations or impact
 Locations exposed to lots of dust or fine particles
 Environments containing corrosive gases or salt
 Locations subject to sudden temperature or humidity fluctuations
 Close to equipment that generates magnetic or electromagnetic radiation
 Locations subject to the effects of radiation and radioactive materials
 Locations such as laboratories where chemical changes may occur
2.1.2 Installing the CSD-709

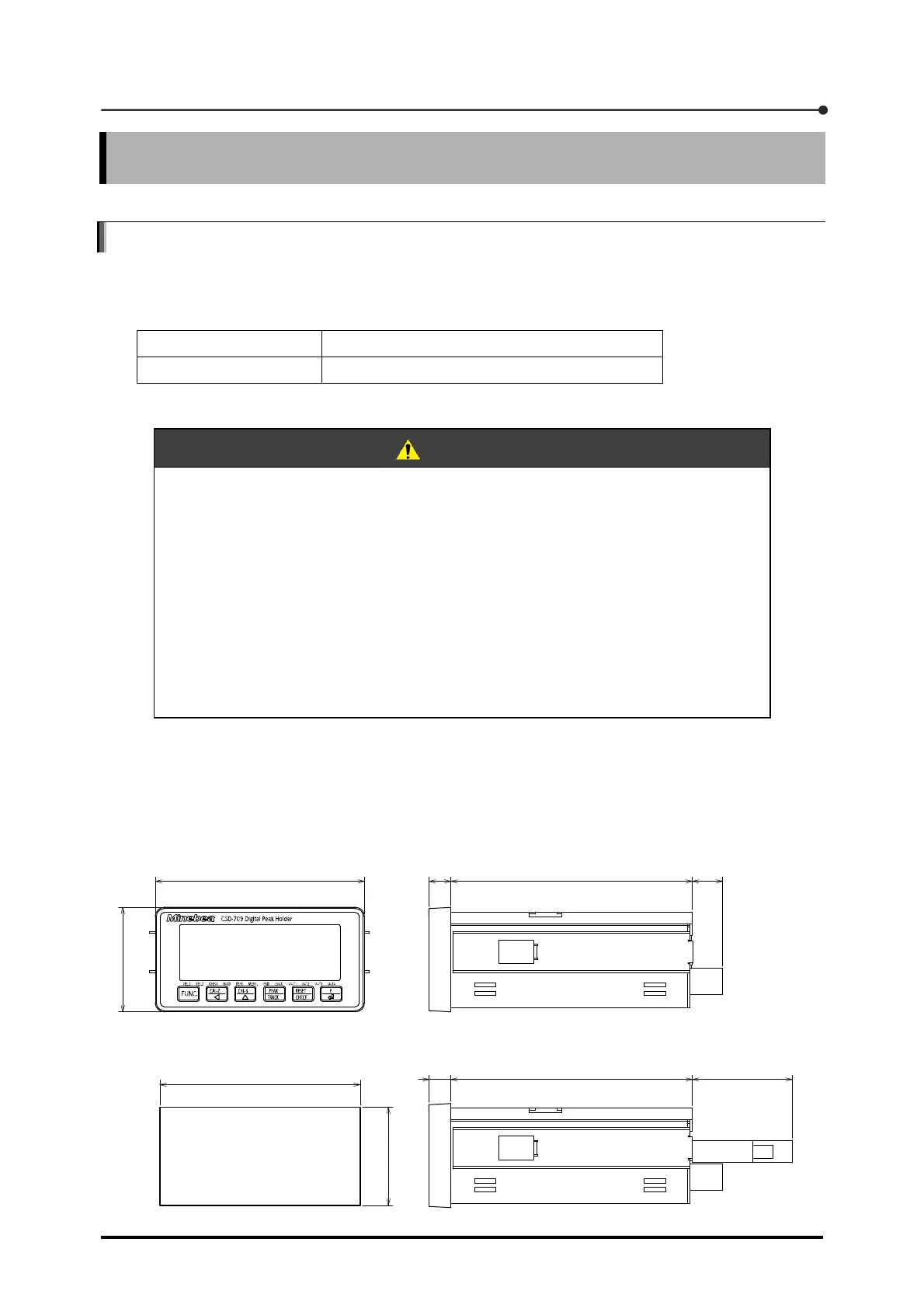

This section describes the external dimensions of the CSD-709 and the appropriate installation
procedures. Shown below are its external dimensions and panel cut dimensions.
External control input/output connector plugged in:
Strain-gage-based transducer connector plugged in:
Panel cut dimensions
92
45
96
48
1411110
10 111 (46)
