2 Installation and Wiring

Described below are the installation procedures for the CSD-709.

1. Drill holes in the panel according to the panel cut dimensions.

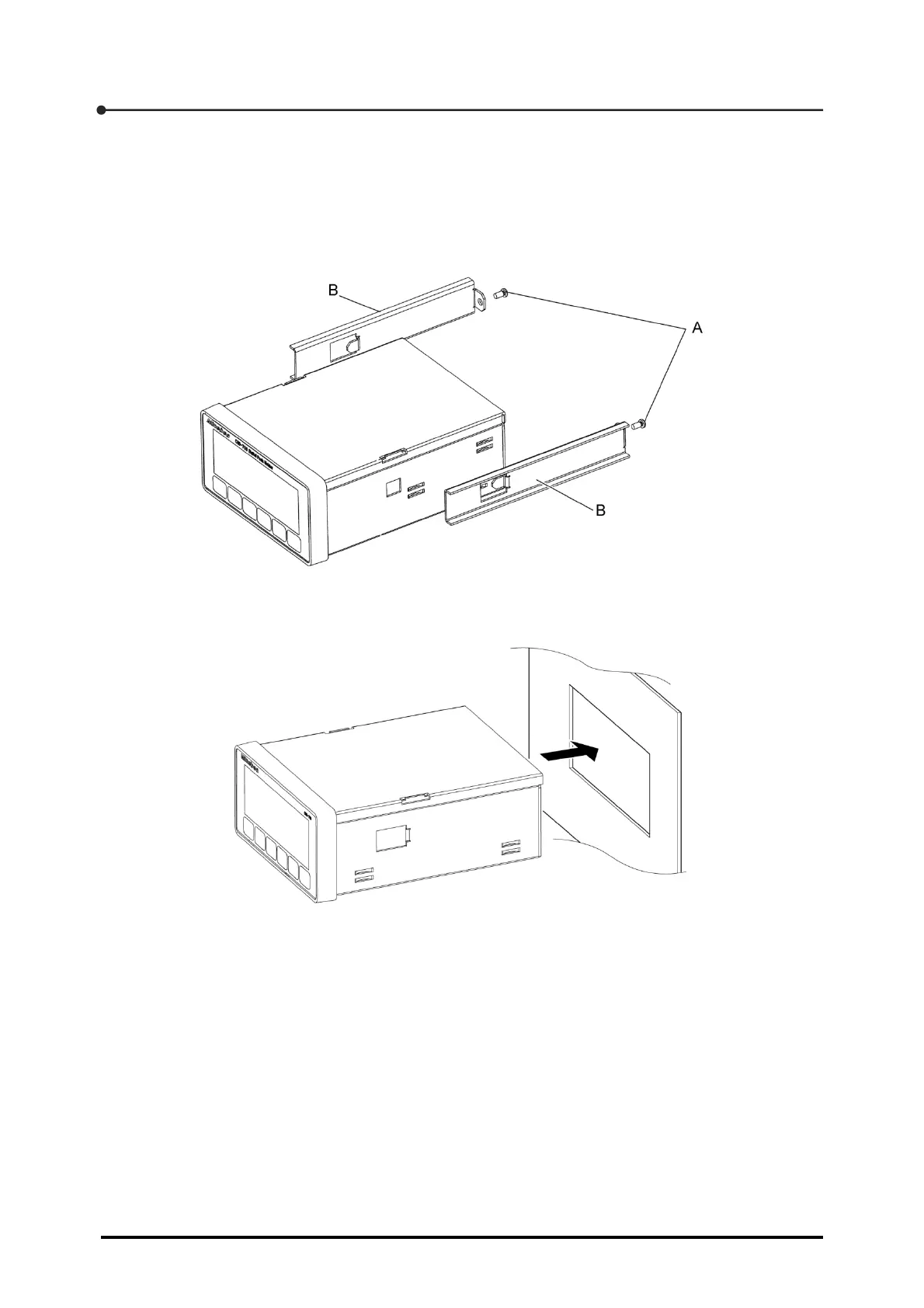

2. Remove the two screws (A) from the rear panel and detach the two panel fittings (B) from both

side panels.

3. Mount the CSD-709 from the front of the panel.
