10 Communications via USB
125
▼ Referencing via command number 99

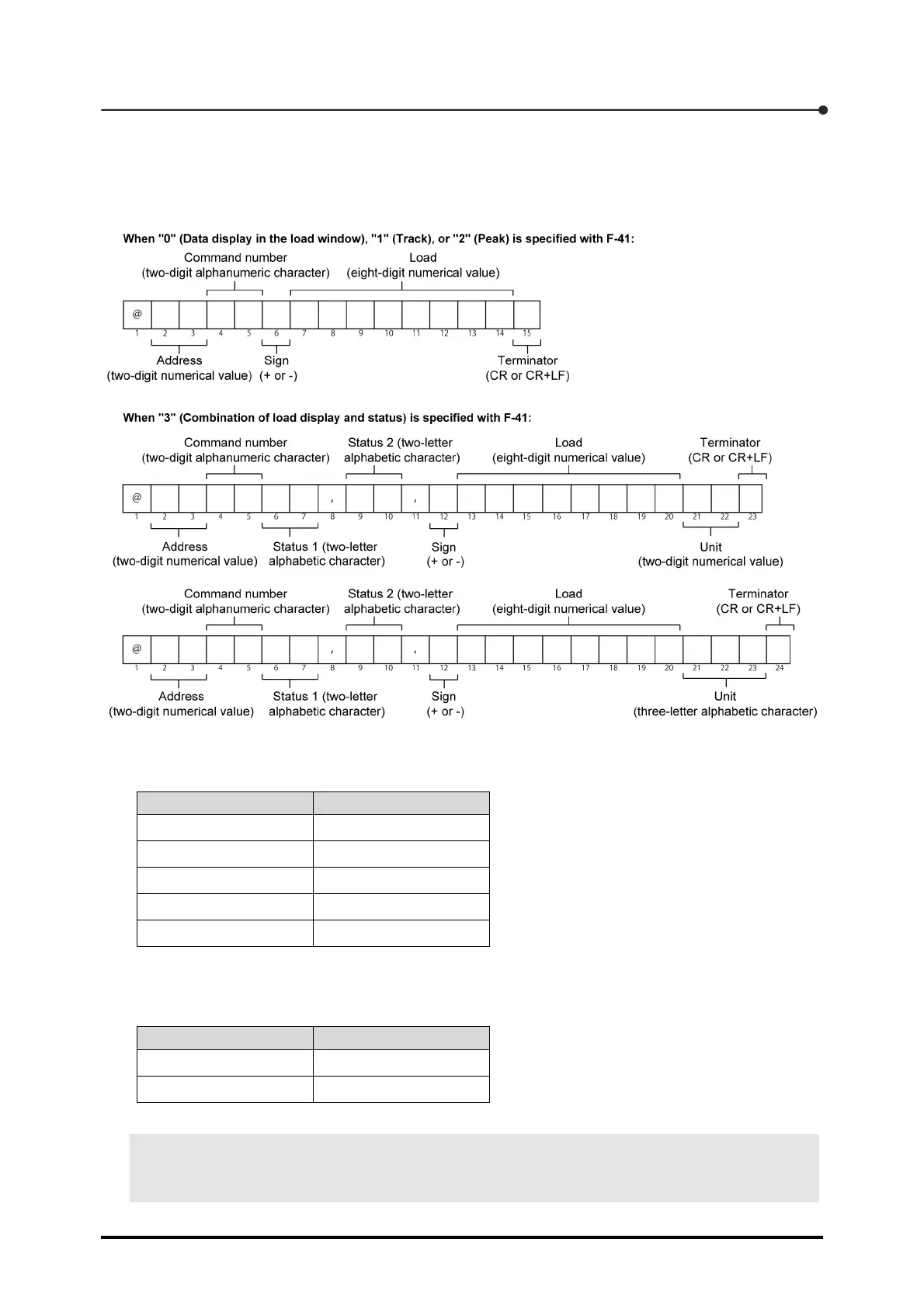

When you specify command number 99 (Execute the stream transfer), the data of the output target
set with function F-41 are returned in the following format, just as in Stream mode:
When you specify [3] (Combination of load display and status) with F-41, the Status 1 field has the
two-letter alphabetic character showing the status of the CSD-709, among those listed below.
Alphabetic character Meaning
OL OL
TR TRACK
PE PEAK
ME MEAS
ED END
Also, the Status 2 field has the two-letter alphabetic character showing the meaning of the numerical
value entered into the Load field (eight-digit numerical value), among those listed below.
Alphabetic character Meaning
PE Peak
TR Track
POINT
Whether the number of digits of unit should be two or three is determined by the setting of function F-44.
