10.3.3 Print command synchronization mode

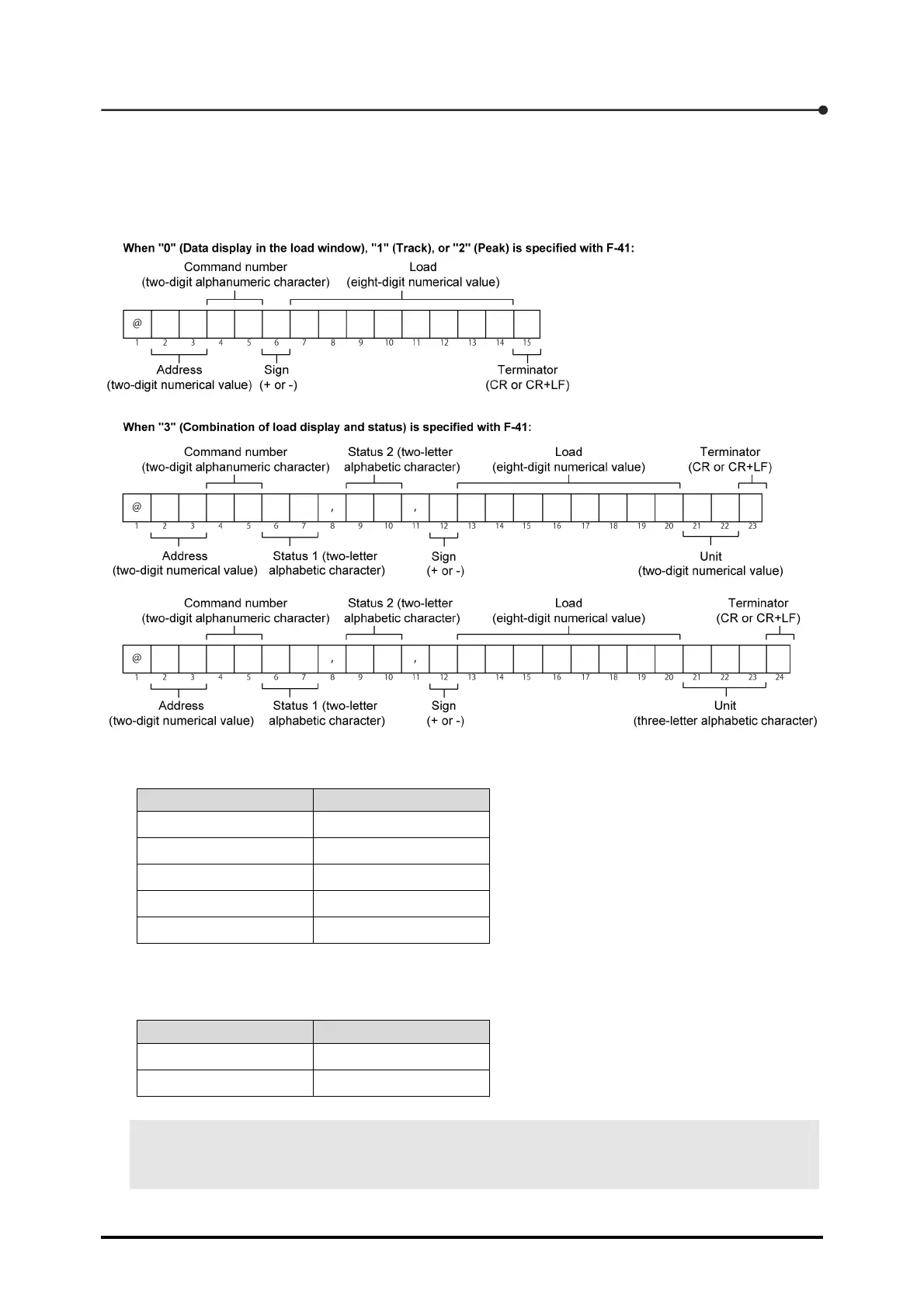

When the Print command synchronization mode is defined as the current operating mode, the CSD-709
synchronizes with the print command, which has been assigned to the F key through the serial interface,
and outputs the data of the output target set with function F-41 in the following format:
When you specify [3] (Combination of load display and status) with F-41, the Status 1 field has the
two-letter alphabetic character showing the status of the CSD-709, among those listed below.
Alphabetic character Meaning
OL OL
TR TRACK
PE PEAK
ME MEAS
ED END
Also, the Status 2 field has the two-letter alphabetic character showing the meaning of the numerical
value entered into the Load field (eight-digit numerical value), among those listed below.
Alphabetic character Meaning
PE Peak
TR Track
POINT
Whether the number of digits of unit should be two or three is determined by the setting of function F-44.
For setting the F key operation, see Section 7.7, "Setting the F key operation".
