Minebea CSD-709 User Manual

1 Overview
12

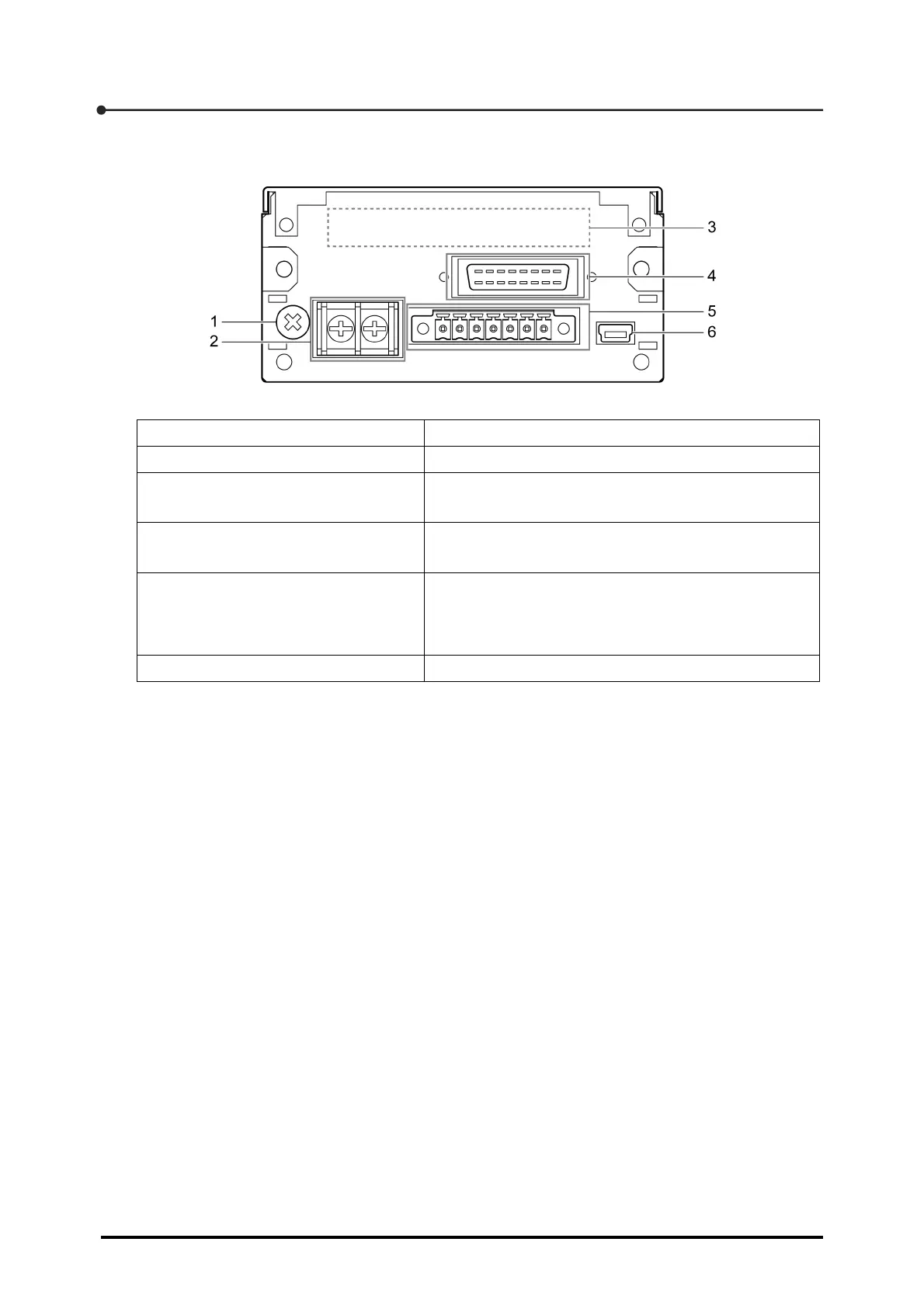

1.4.2 Rear panel
1. Protective ground connector The grounding cable is plugged in here.
2. Power supply connector board The power cable is plugged in here.
3. Connectors for options
The cable suitable for the option mounted is plugged in
here.
4. External control input/output
connector
The external control input/output connector is plugged
in here.
5. Strain-gage-based transducer
connector
The signal cable from the strain-gage-based
transducer or the strain-gage-based transducer
connector to which the monitor output signal cable is
connected is plugged in here.
6. USB interface connector The USB cable is plugged in here.
