6 Settings Related to Comparison
82
Similarly, if [2] (Turn on the open collector output when the comparison target is equal to or lower
than the comparison value) has been set, you can delay the actual turn-on timing using the ON delay
feature.
If [1] (Turn on the open collector output when the comparison target is equal to or greater than the
comparison value) or [2] (Turn on the open collector output when the comparison target is equal to or
lower than the comparison value) has been set, you can also delay actual turn-off timing using data

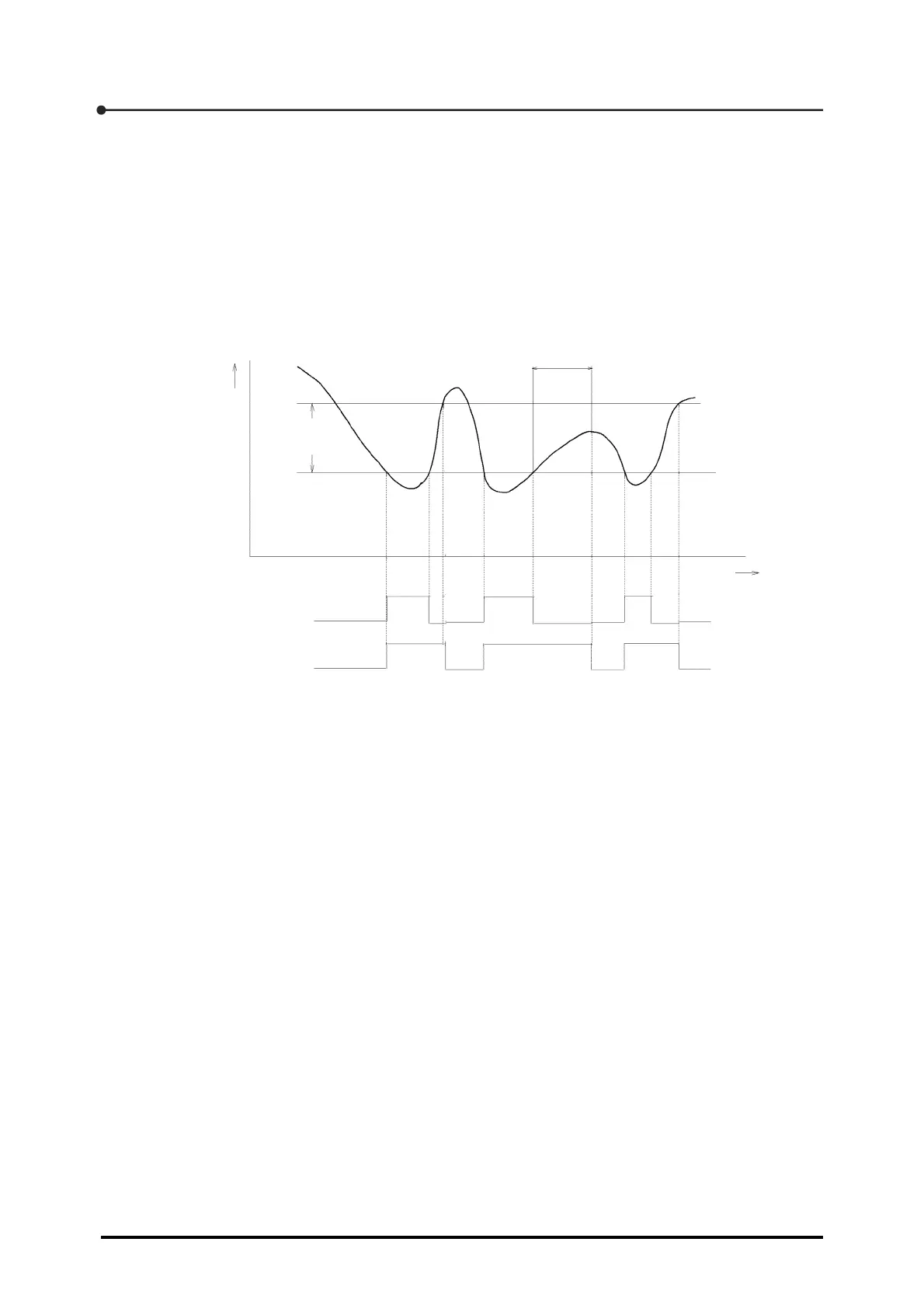

width and duration. This operation is called [OFF delay] By setting the OFF delay appropriately, you
can configure different open collector outputs, as shown below:
The operation based on the ON delay or OFF delay is called [comparator hysteresis].
Time
ON
OFF
ON
OFF
S1 open collector output
when data width and
duration are not set
S1 open collector output
when data width and
duration are set
Hysteresis
data width
S1 setting
Hysteresis duration
Display
