2 - M - 1
LCT-1000 TRAY PAPER FEED/CONVEYANCE SECTION
Mechanism
Feed
1st paper feed
Double feed prevention
No paper detection
Paper size detection
Paper conveyance
Conveyance drive
LCT-1000 TRAY PAPER FEED/CONVEYANCE SECTION
[1] Composition
*1
Method
Roller swiveling
1st paper feed roller, paper feed
solenoid, paper feed clutch
Torque limiter
Photosensor
None
Roller conveyance
Timing belt
*1: Roller swiveling
To prevent the 1st paper feed roller from touching the paper
and causing a paper jam when the paper tray is being
removed, the paper feed roller is designed so that it drops
down and touches the paper only when paper feed is taking
place.
This operation takes place as a result of the LCT paper feed
solenoid driving the paper feed swivel plate.

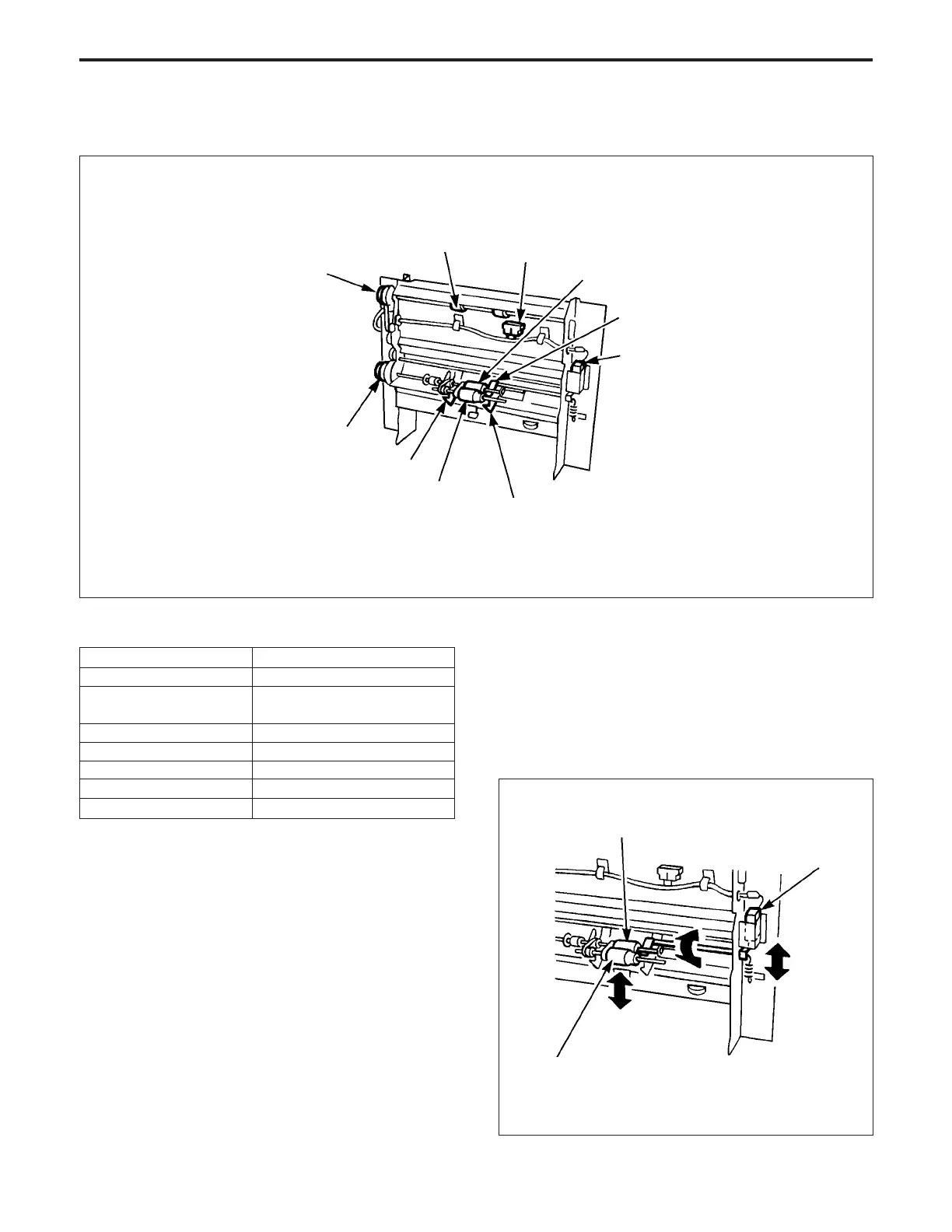

[2] Mechanisms
Upper limit detection actuator
Paper feed roller
No paper detecting actuator
LCT 1st paper feed CL (CL1)
LCT conveyance PS (PS144)
Feed roller
LCT paper feed
SD (SD141)
Paper feed roller
Conveyance roller (upper)
Paper feed swivel plate
LCT paper feed SD (SD141)
Feed roller
LCT Conveyance CL (CL3)
LCT-1500 TRAY PAPER FEED/CONVEYANCE SECTION-1
