5 - 12
[2] Mechanisms
*1: Stopper-less control
a. During paper feed
The original received from the paper feed section is conveyed
to a point 2 mm away from the scale plate by the forward
rotation of the conveyance belt, then stops. In this case, the
conveyance belt stops rotating in the forward direction after
the specified number of pulses from when PS302 (original
passage) detects the trailing edge of the original.

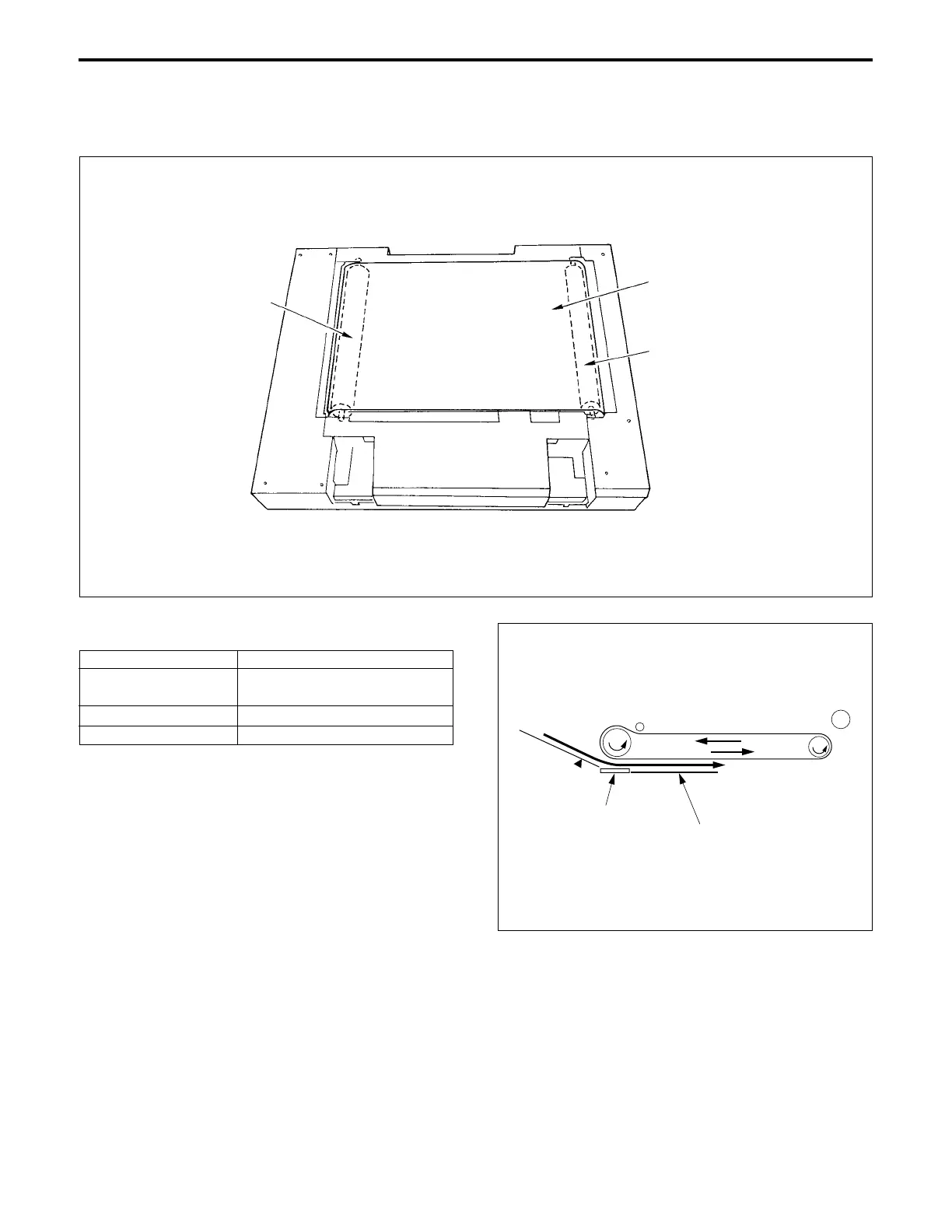

CONVEYANCE SECTION
[1] Composition
Conveyance belt
Drive roller
Driven roller
*1
Mechanism Method
Conveyance belt rotation
Forward/reverse bidirectional
rotation method
Original stopping Stopper-less control method
Scale plate Fixed type
PS302
Original
Scale plate
