CORONA UNIT SECTION

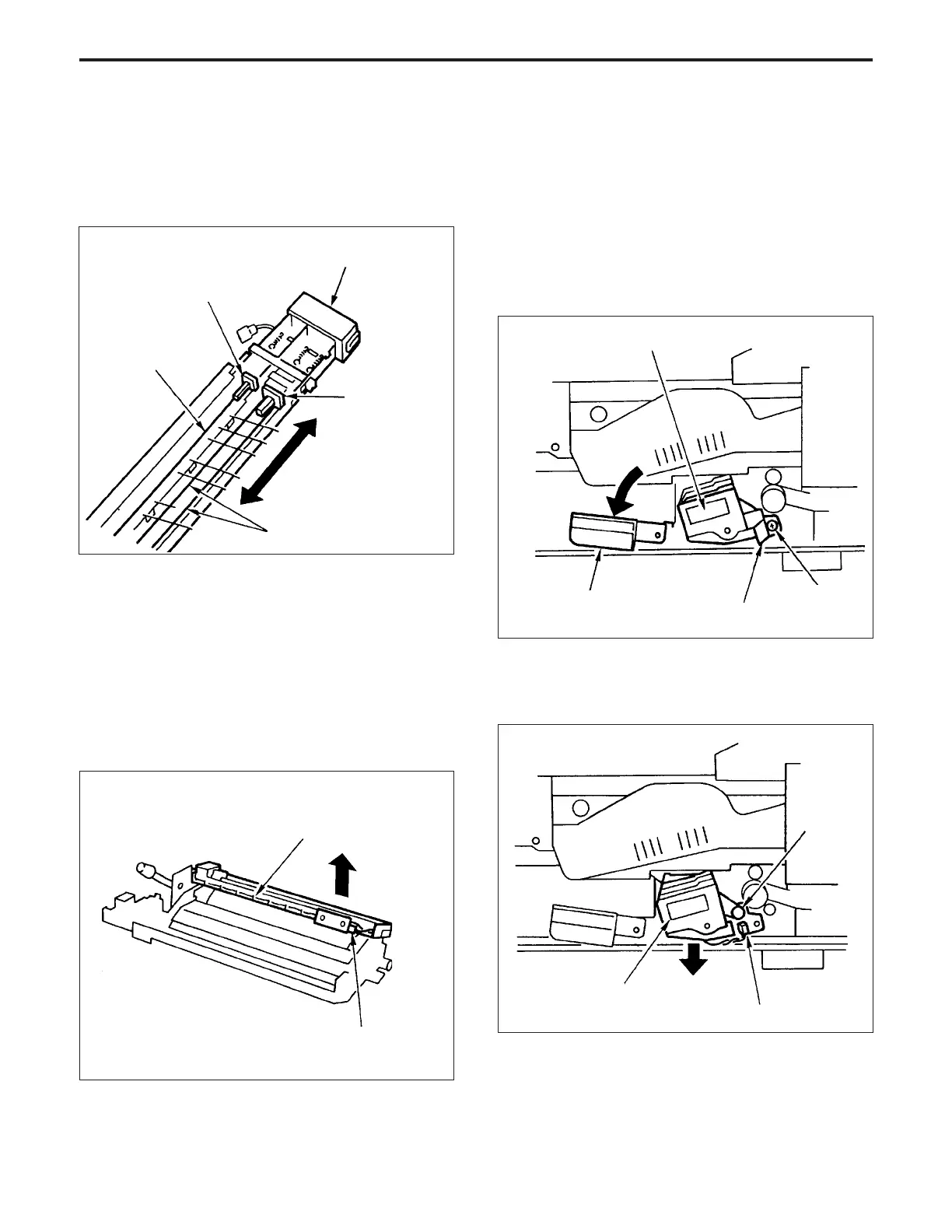

*2: Cleaning the transfer and separation wires
The transfer and separation corona unit has a wire cleaner.
The transfer and separation wire cleaning motor causes
the transfer and separation wire cleaning blocks to move
back and forth, removing dirt from the wires.
2. Removing and Re-installing the Transfer and
Separation Corona Unit
Caution: Be sure that the power cord has been unplugged
from the power outlet.
a. Procedure
(1) Open the front door, and release the conveyance
lever.
(2) Remove the set screw, then remove the transfer and
separation corona unit cover.
(3) Disconnect the connector (CN168).
(4) Remove the set screw, then pull forward and remove
the transfer and separation corona unit.
Set screw
Transfer and separation
corona unit
Connector (CN168)
(5) Re-install the transfer and separation corona unit in the
opposite sequence to removal.
[3] Disassembly and Re-assembly
1. Removing and Re-installing the Charging
Corona Unit
Caution: Be sure that the power cord has been unplugged
from the power outlet.
a. Procedure
(1) Remove the drum unit from the main body.
(2) Disconnect the connector (CN21).
(3) Lift out the charging corona unit.
Connector (CN21)
(4) Re-install the charging corona unit in the opposite
sequence to removal.
Separation wires
Transfer and separation
wire cleaning motor (M8)
Transfer wire cleaning block
Separation wire
cleaning block
Transfer wire
Charging corona unit
Set screw
Transfer and separation
corona unit cover
Conveyance lever
Transfer and separation
corona unit
