5 - 21

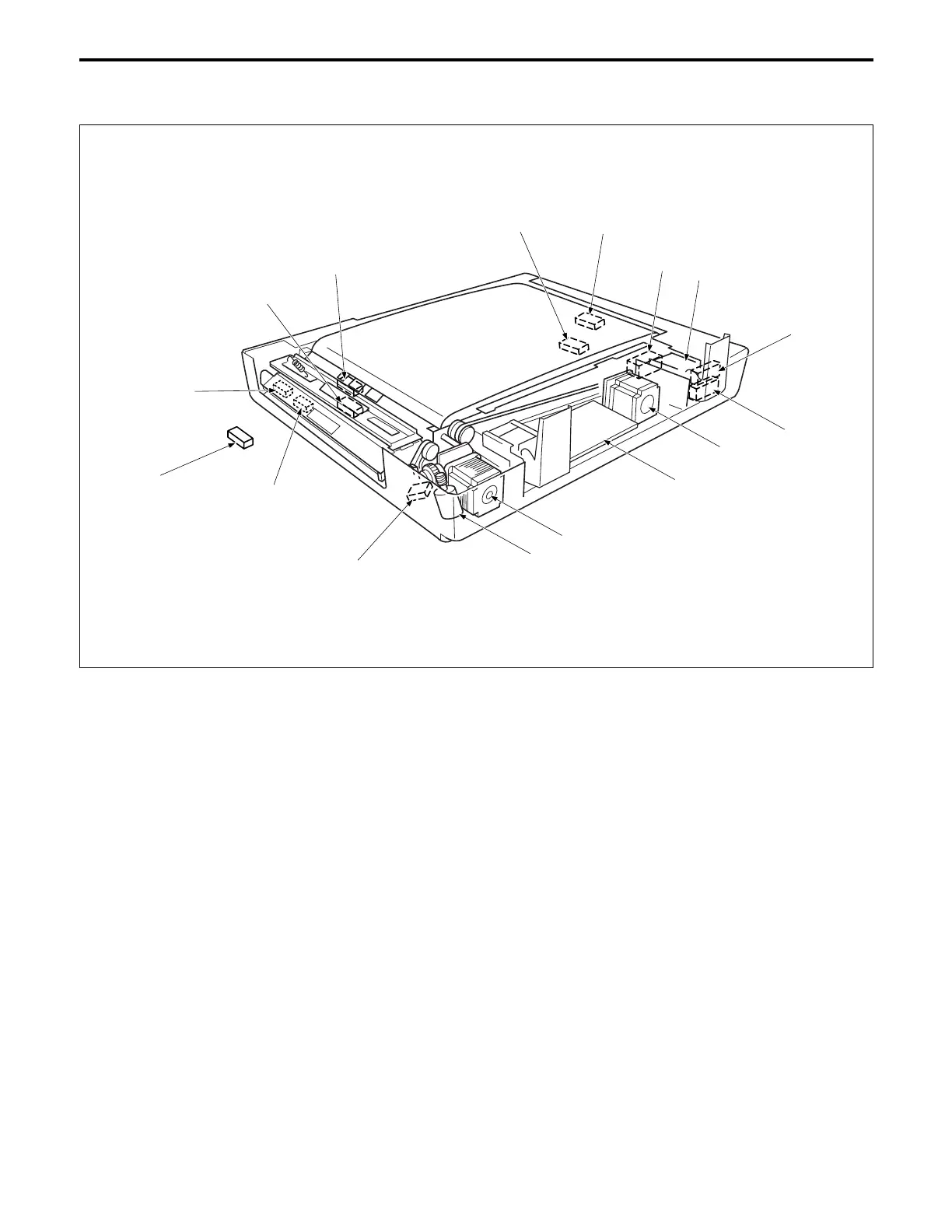

ELECTRICAL PARTS LAYOUT DRAWING
2. Load
! M301 Original feed Motor
@ M302 Original conveyance Motor
# M303 Original exit Motor
$ M304 Original push pressure Motor
% SD301 Original reverse SD
3. Others
^ RADFCB RADF Control board
0
9
1
4
5
2
$
!
^
@
3
8
#
%
6
7
1. Switch Sensor
1 PS301 Original detection PS
2 PS302 Original transmission PS
3 PS303 Original exit cover detection PS
4 PS304 No Original PS
5 PS305 Original feed PS
6 PS306 Original exit PS
7 PS307 Original reversal detection PS
8 PS308 ADF open/close detection PS
9 PS309 Push pressure plate up/down PS
0 PS310 A5R detection PS
