2 - N - 1
LCT-1500 TRAY PAPER FEED/CONVEYANCE SECTION
Mechanism
Feed
1st paper feed
Double feed prevention
No paper detection
Paper size detection
Paper conveyance
Conveyance drive
LCT-1500 TRAY PAPER FEED/CONVEYANCE SECTION

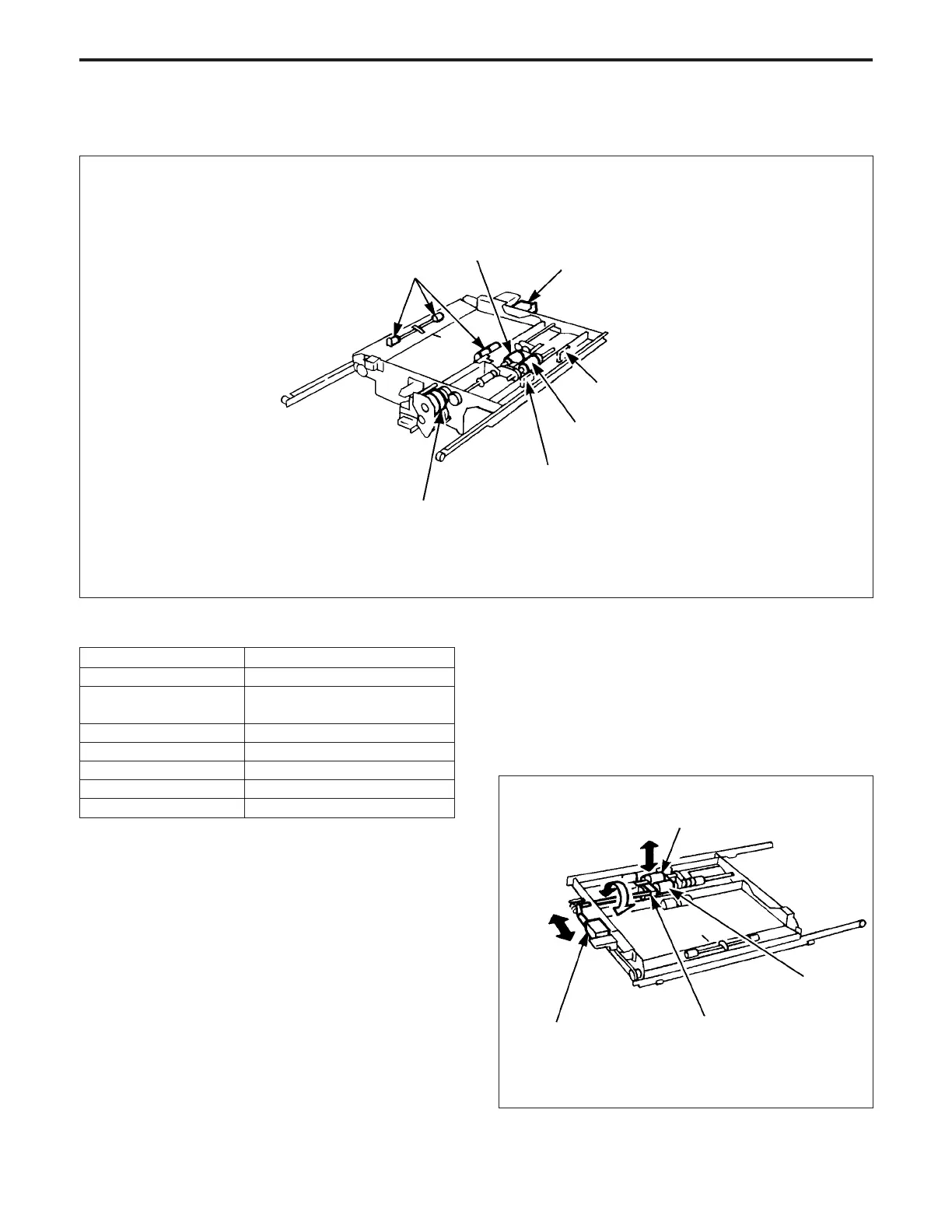

[1] Composition
*1
Method
Roller swivel
1st paper feed roller, paper feed
solenoid
Torque limiter
Photo sensor
None
Roller conveyance
Timing belt
Paper feed
roller
[2] Mechanisms
Horizontal conveyance rollers
Feed roller
LCT paper feed SD (SD140)
Upper limit detection actuator
No paperdetection actuator
LCT 1st paper feed CL (CL2)
*1: Roller swiveling
To prevent the 1st paper feed roller from touching the paper
and causing a paper jam when the paper tray is being
removed, the paper feed roller is designed so that it drops
down and touches the paper only when paper feed is taking
place.
This operation is takes place as a result of the LCT paper
feed solenoid driving the paper feed swivel plate.
Paper feed roller
Feed roller
Paper feed swivel plate
LCT paper feed SD
(SD140)
LCT-1500 TRAY PAPER FEED/CONVEYANCE SECTION-1
