OTHER KINDS OF CONTROL
2 - T - 6
2. Signals
a. Input signals
(1) C(K) JOINT (C(K) → CB)
This signal informs the CB that the count on C(K) has
increased.
(2) PS25 (PS25 → CB)
PS25 state signal.
When this signal is [L], PS25 goes ON, indicating that
the paper has been exited.
b. Output signals
(1) C(T) DRIVE (CB → C(T))
C(T) drive signal.
When this signal changes from [L] -> [H], the count of
C(T) increases by 1.
(2) C(K) DRIVE (CB → C(K))
C(K) drive signal
When this signal changes from [L] -> [H], the count of
C(K) increases by 1.

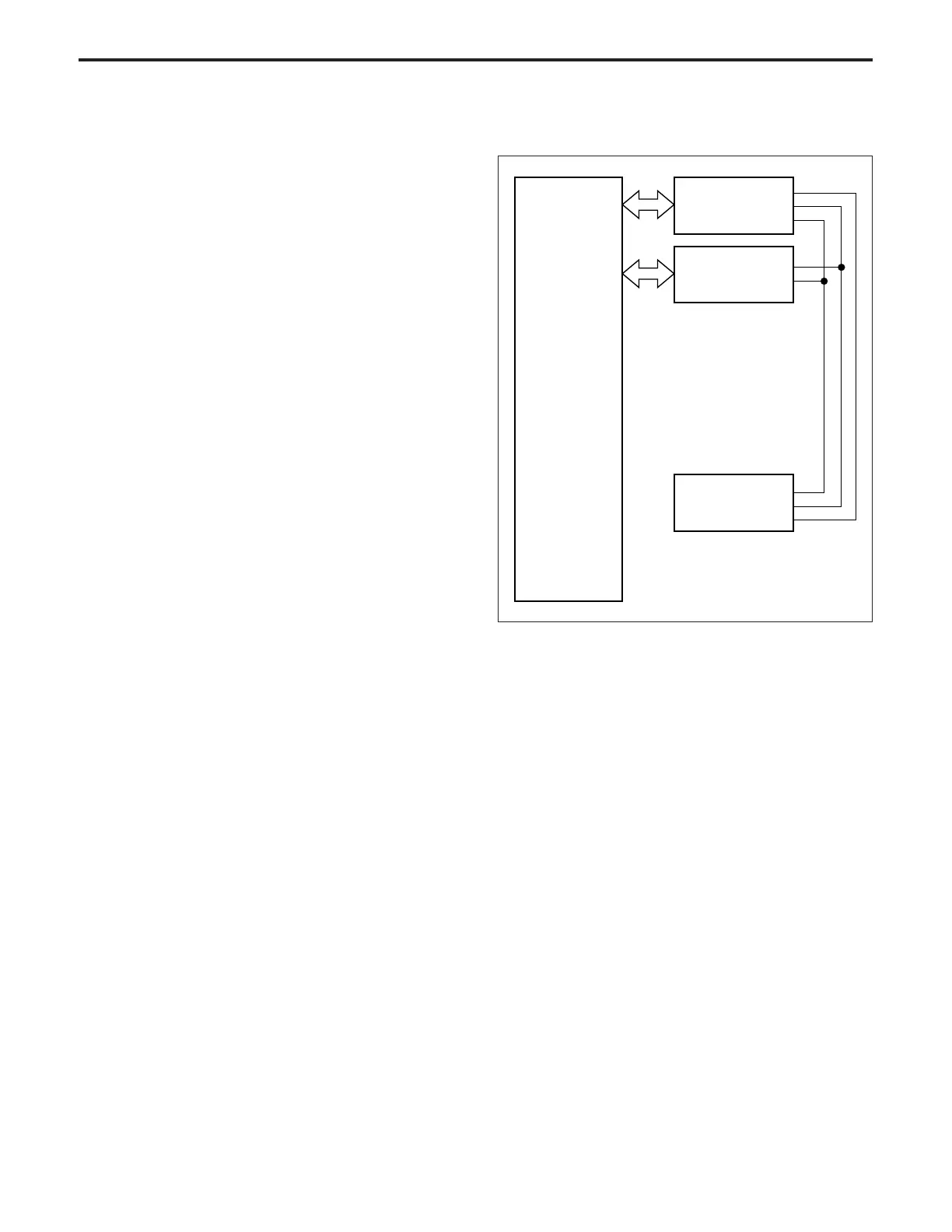

[6] Option Control
CB
Finisher
24VDC
PGND
LCT
40VDC
24VDC
PGND
DCPS
IIn this machine, the LCT and Finisher options are controlled by
the CB (control board).
1. Operation
The Finisher contains a CB. Data is exchanged between
Finisher CB and the main body CB. (For details of the
operation of each option, refer to the Option section of this
manual.)
The DCPS (DC power supply unit) supplies power to the
LCT and Finisher.
