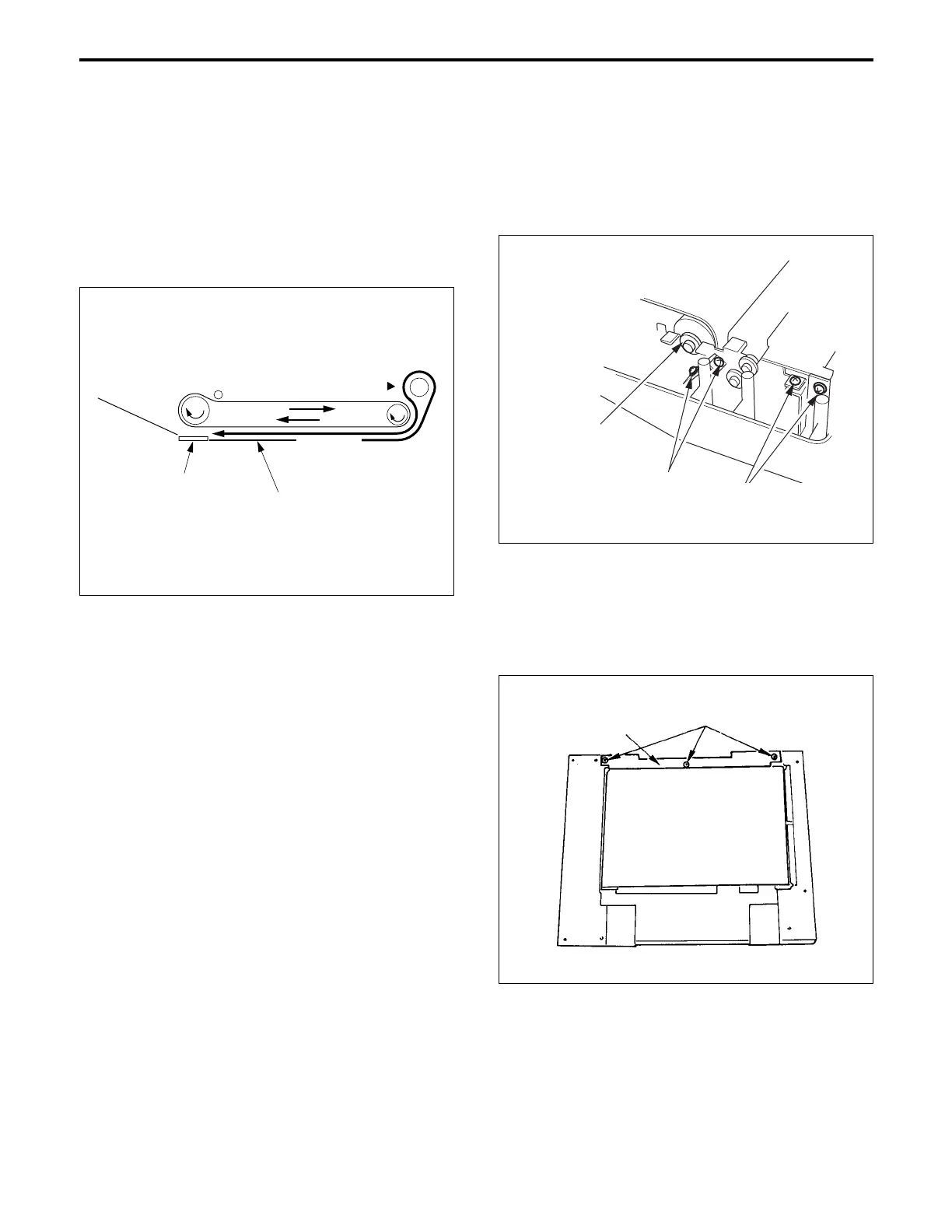

b. During reversal
During original reversal, the original received from the
reversal section is conveyed to a point 2 mm away from the
scale plate by the reverse rotation of the conveyance belt,
then stops. In this case, the conveyance belt stops rotating
in the reverse direction after the specified number of pulses
from when PS307 (original reversal) detects the leading
edge of the original.
2. Replacing the Conveyance Belt
a. Procedure
(1) Remove the three set screws, then remove main body
base plate (B).
PS 307
Scale plate
Original
[3] Disassembly and Re-assembly
1. Screws That Must not be Removed
Do not remove the feed driven roller pressing force
adjustment screws and original push pressure plate
adjustment screws.
Drive roller
Do not
remove. Do not
remove.
Main body base
plate (B)
Set screws
