2 - P - 1
ADU PAPER EXIT/CONVEYANCE SECTION
Mechanism
Paper path selection
Paper conveyance
ADU PAPER EXIT/CONVEYANCE SECTION
[1] Composition
*1
Method
Selector guide
Conveyance roller
*1: Selecting the paper path
The paper that is exited from the fixing unit of the main body
is either exited from the machine or sent to the ADU paper
exit/conveyance section depending upon the setting of the
selector guide.
The selector guide operates according to the ON/OFF state
of the ADU gate solenoid (SD152).

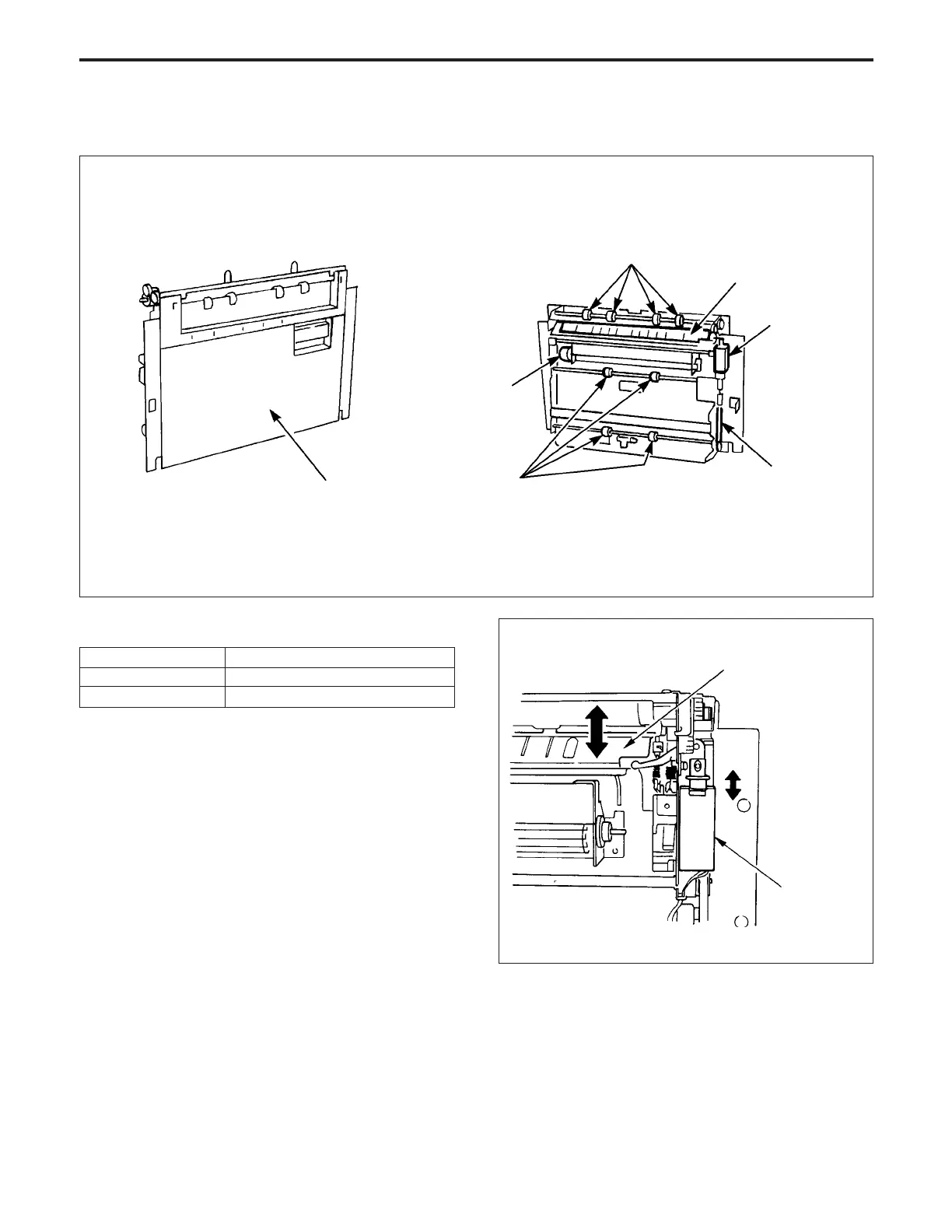

[2] Mechanisms
ADU conveyance open/close door
Timing belt
Paper exit rollers
Selector guide
ADU gate
solenoid
(SD152)
ADU cooling fan
(M152)
Conveyance
rollers
ADU gate
solenoid (SD152)
Selector guide
