5 - 17

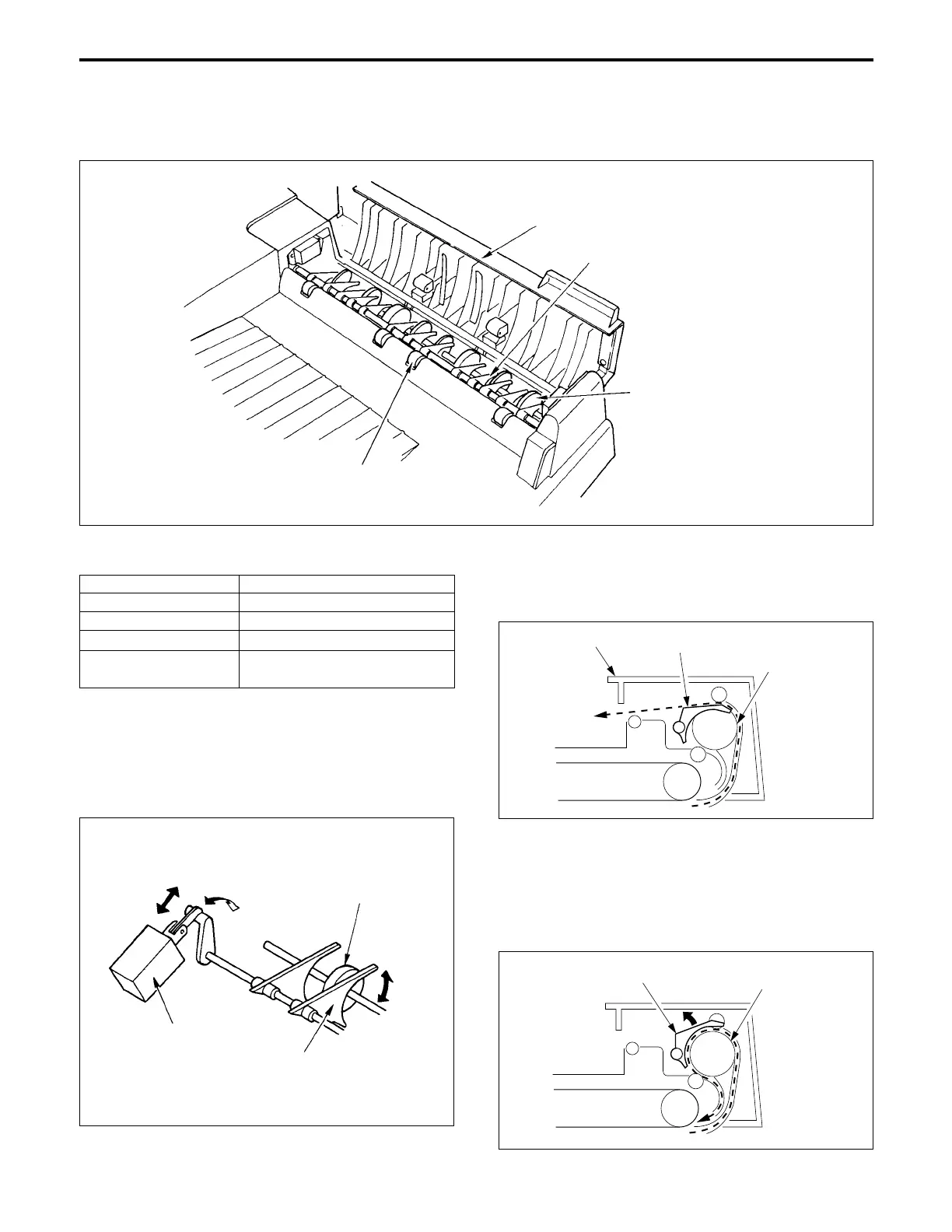

REVERSAL SECTION
[1] Composition
[2] Mechanisms
*1
When the original reversal solenoid goes ON, the switching
guide separates from the conveyance roller. As a result, the
original is reversed then fed once again to the conveyance
belt side.
Paper exit cover
Switching guide
Conveyance roller
Paper exit roller
Mechanism Method
Reversal U-turn reversal
Reversal roller rotation One direction only
Reversal/exit switchover
Switching guide
Paper exit cover Opening/closing type (Opens to
right)
*1: Switching guide
Switchover between original reversal and exit is done by
the switching guide. The switching guide is linked to the
original reversal solenoid (SD301) via the switching guide
shaft and a cam.
ON
OFF
ON
OFF
OFF
ON
Conveyance roller
Switching guide
Original reversal
solenoid (SD301)
When the original reversal solenoid is OFF, the switching
guide is in the lower position at the conveyance roller side.
As a result, the original is exited.
Reversal external
Switching guide
Conveyance roller
Switching guide
Conveyance roller
