CONVEYANCE SECTION
2 - R - 4

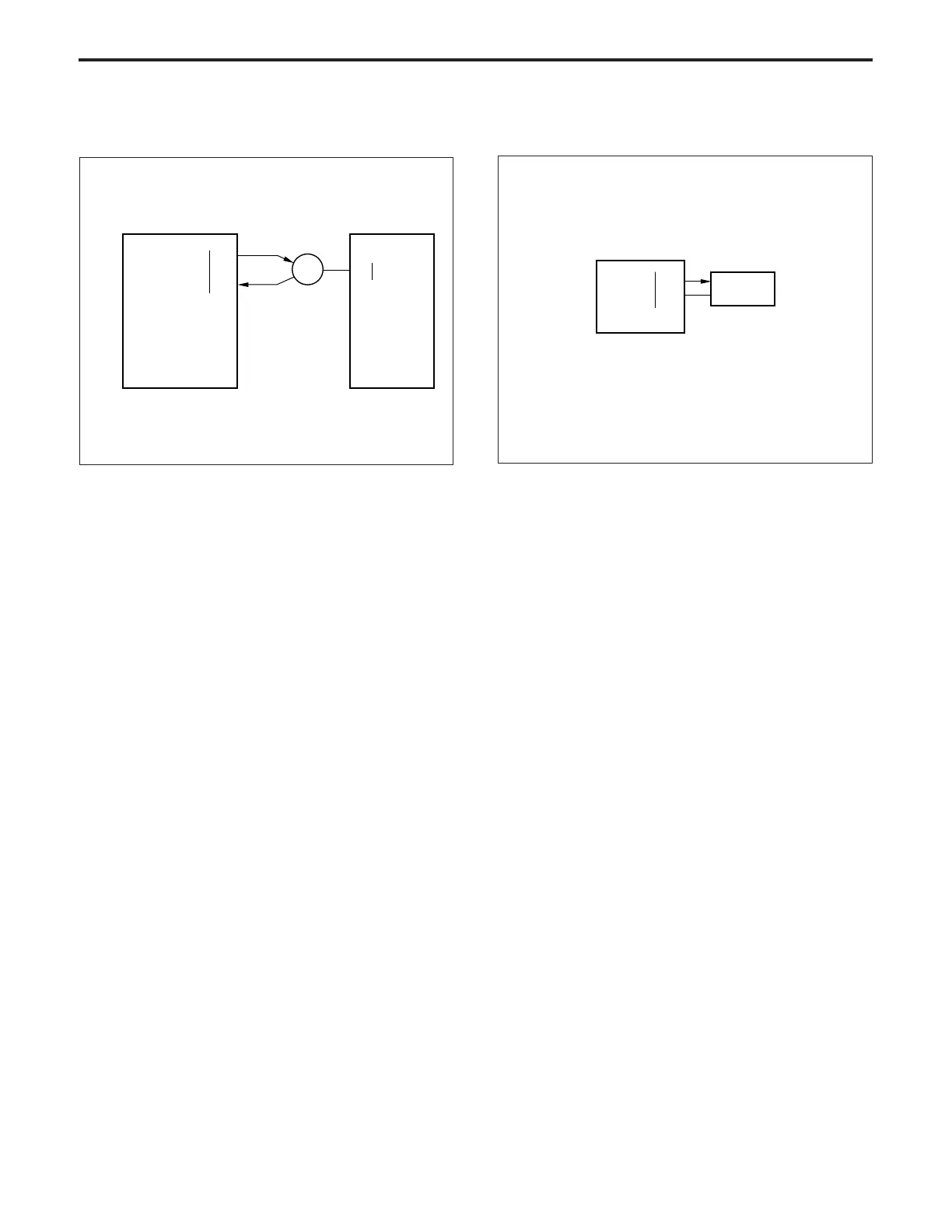

[4] FM14 (conveyance suction) Control
PGND78-7
DCPS
FM14 DRIVE
FM14 LD
65-A10
65-A11
CB
FM14
SD5
SD5 DRIVE
24VDC
6-B10
6-B11
CB
[5] SD5 (conveyance) Control
FM14 (conveyance suction) is driven by the CB (control board).
1. Operation
FM14 is a 24 V drive DC motor. It goes ON and OFF in
synchronism with M4 (main).
2. Signals
a. Input signal
(1) FM14 LD (FM14 → CB)
This signal becomes [L] when FM14 reaches the
specified speed.
b. Output signals
(1) FM14 DRIVE (CB → FM14)
FM14 drive control signal
[L]: FM14 OFF
[H]: FM14 ON
SD5 (conveyance) is driven by the CB (control board).
1. Operation
SD5 is a 24 V drive DC solenoid. In the thick paper mode,
it is turned ON (conveyance section rises) at the start of
copying.
2. Signals
a. Output signal
(1) SD5 DRIVE (CB → SD5)
SD5 drive control signal
[L]: SD5 ON
[H]: SD5 OFF
CONVEYANCE SECTION-1
