Mita PointSource Ai 5555 - Read Section; Composition; Disassembly and Re-Assembly; Mechanisms

2 - E - 1
READ SECTION
READ SECTION

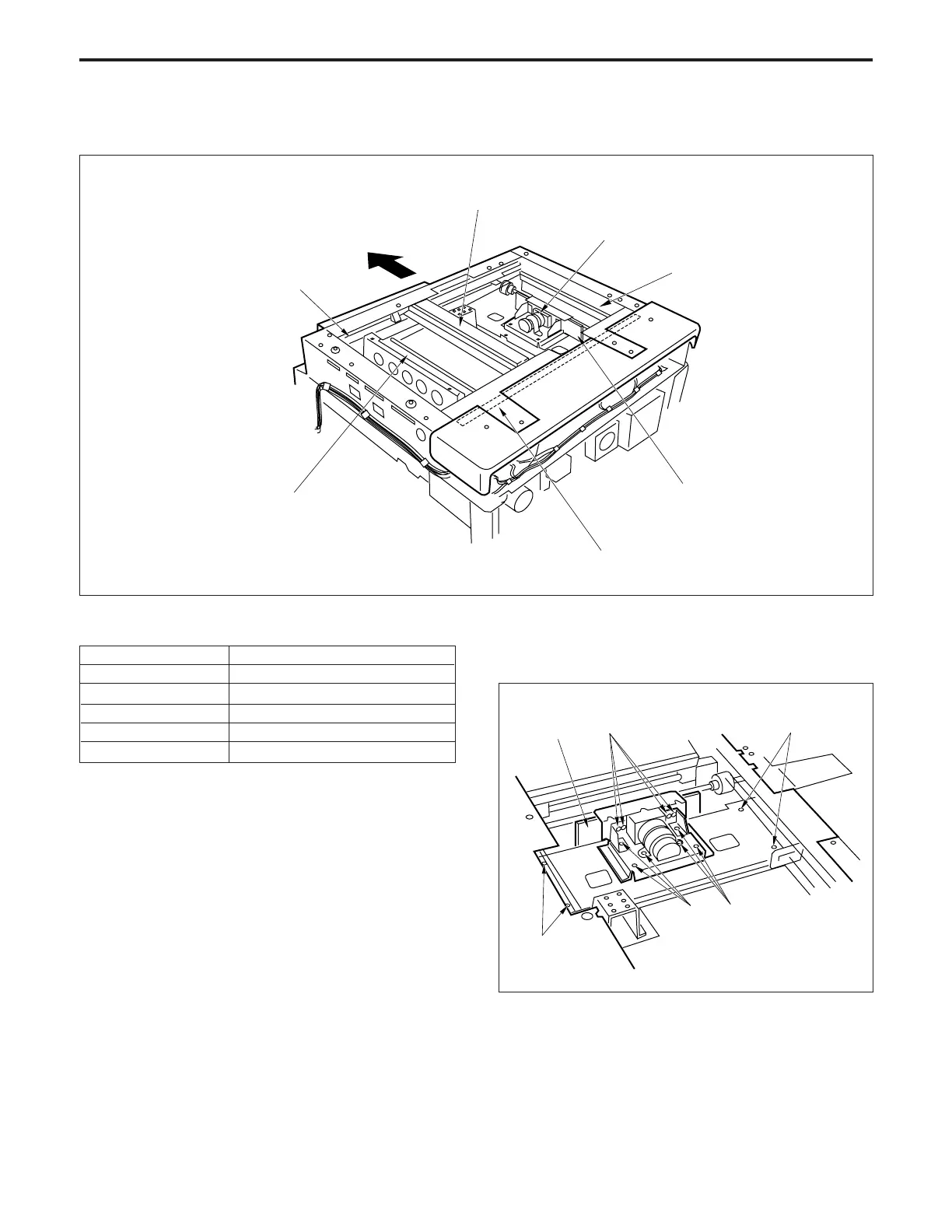

[1] Composition
[2] Mechanisms
Mechanism Method
Light source Halogen lamp (170 W)
Exposure Light source shift slit exposure
Scanning 1st, 2nd and 3rd mirror shift
Lamp power supply Lamp cord
Cooling of optics Cooling of intake air using a fan
[3] Disassembly and Re-assembly
1. Screws that must not be removed
a. The 14 set screws of the CCD unit
V mirror unit
(2nd and 3rd mirrors)
CCD unit
A/D converter board
(ADB)
A/D converter
board (ADB)
Screws that must
not be removed
Screws that must
not be removed
Screws that must
not be removed
Screws that must
not be removed
Optics cooling fan (FM2)
Optics rail (R)
Exposure unit
Optics drive wire
Front
