Mita PointSource Ai 5555 - ADU Paper Feed;Conveyance Drive

2 - B - 4

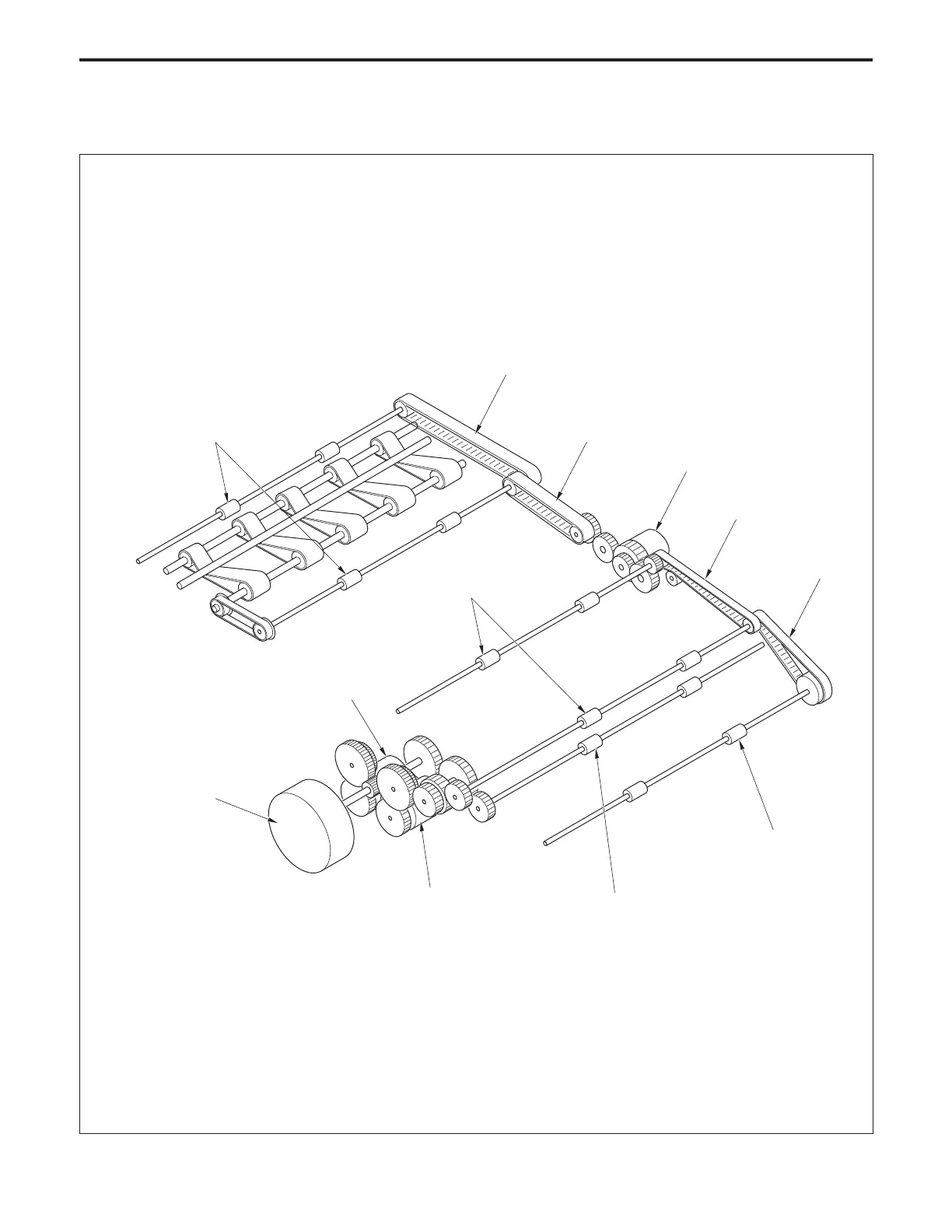

DRIVE SYSTEM DIAGRAM
[4] ADU Paper Feed/Conveyance Drive
Timing belt
ADU timing CL (CL153)
Conveyance roller
ADU reversal CL
(CL152)
ADU paper feed motor
(M151)
Reversal roller
Timing belt
Timing belt
Timing belt
Paper exit rollers
ADU paper feed CL
(CL151)
Paper exit rollers
