5 - 4
PAPER FEED SECTION

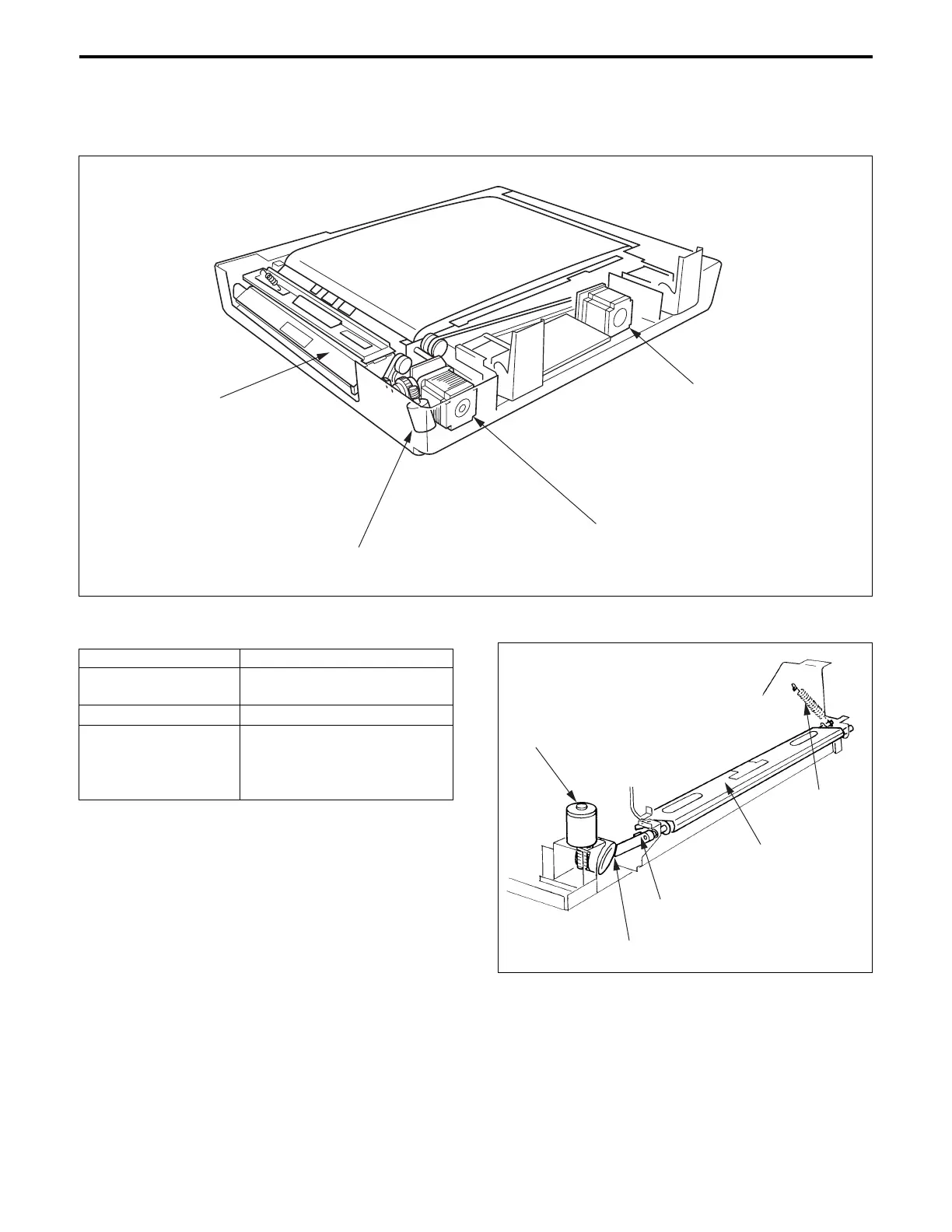

[1] Composition
[2] Mechanisms
1. Paper Feed Drive Section
The drive section performs the following kinds of control
when originals are being fed.
a. Original push pressure plate pressing and release
operations
The drive force from the push pressure motor (M304) is
transferred to the swing lever via the lifting cam.
The swing lever is mounted on the original push pressure
plate. The drive force from the swing lever causes the
original push pressure plate to move up and down. As a
result, the original push pressure plate alternately pushes
against and separates from the original in the original paper
feed tray. The push pressure spring maintains the paper
feed pressure constant.
Push pressure motor (M304)
Drive motor (M301)
Original push
pressure plate
Conveyance motor
(M302)
Mechanism Method
Paper feed Stack automatic feed (upward
feed)
Double feed prevention Double feed prevention roller
Original size detection Original passage time detection
method
(Size detected by the number of
count pulses from PS302.)
Push pressure motor
(M304)
Cam
Swing lever
Original push
pressure plate
Push pressure
spring
