2 - R - 1

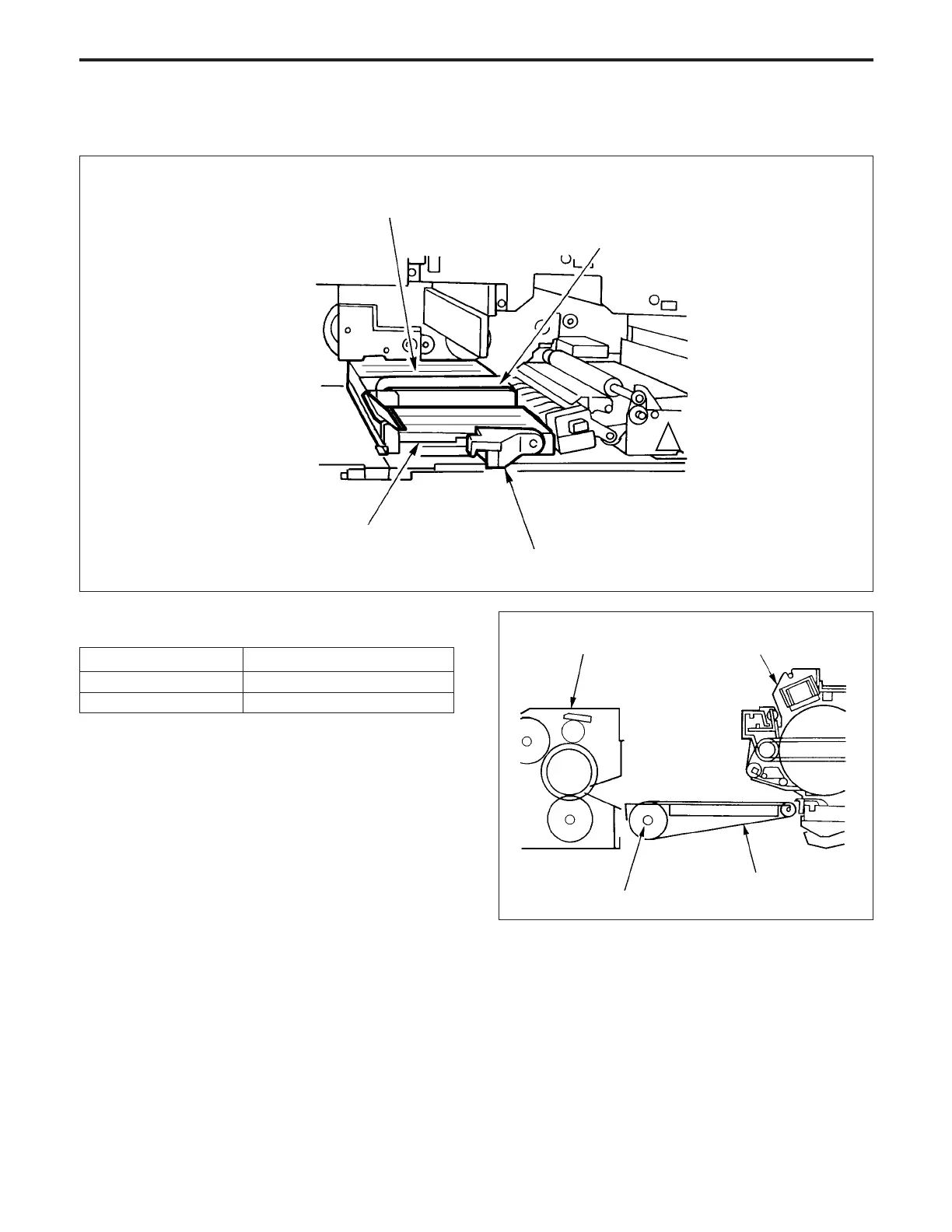

CONVEYANCE SECTION
CONVEYANCE SECTION
Conveyance unit
Conveyance belt
Conveyance lever
*1
*2
Conveyance guide plate
C
[2] Mechanisms
Mechanism Method
Paper conveyance One conveyance belt
Belt lifting mechanism Cam drive
*1: Paper conveyance
The paper fed from the 2nd paper feed section is conveyed
to the fixing unit by the conveyance belt. The conveyance
belt is driven by the main motor. When paper is being
conveyed, it is sucked onto the conveyance belt by the
conveyance suction motor (FM14) installed beneath the
conveyance unit, in order to improve the conveyance
performance.
Conveyance roller
Conveyance belt
Drum unit
Fixing unit
[1] Composition
CONVEYANCE SECTION-1
