2 - G - 6
DRUM UNIT
[6] Paper Guide Plate Control
A constant voltage is applied to the paper guide plate in order
to prevent toner from adhering to it.
1. Operation
a. ON/OFF timing
ON and OFF in synchronism with M4 (drum).
b. Applied voltage
–500 V DC
2. Signal
a. Output signal

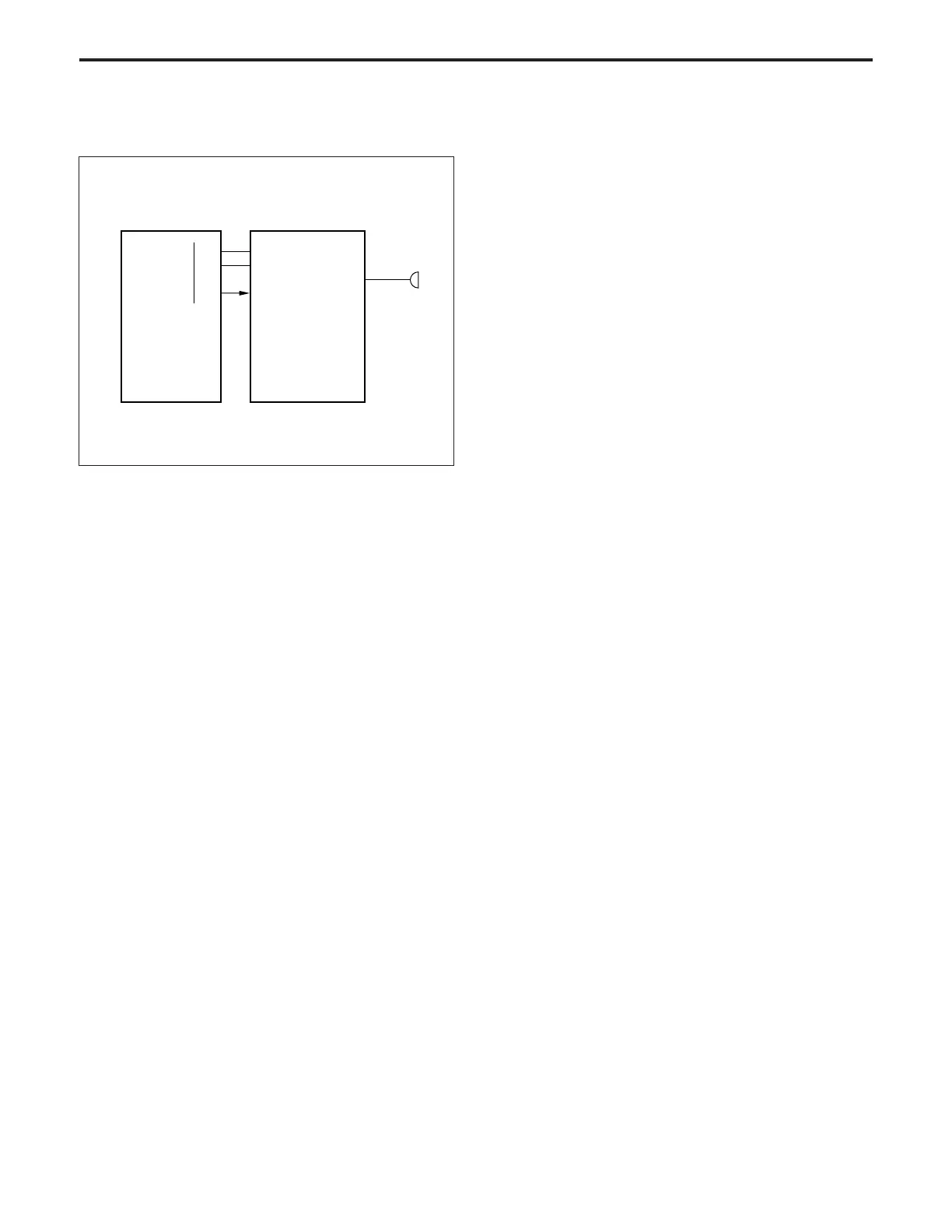

(1) GP CONT (CB → HV1)
Controlling ON/OFF of the voltage applied to the
paper guide plate
[L]: Voltage applied.
[H]: Voltage not applied.
24VDC
PGND
GP CONT
62-A1
62-A2
62-B11
CB
GP
84-1
84-2
84-8
HV1
