b. Control of the paper feed roller
The paper feed roller is controlled by the paper feed motor
(M301).
When the paper feed motor rotates in the forward direction,
the drive force is transmitted to the paper feed roller and the
feed roller via the paper feed drive shaft, causing pre-paper
feed to take place.
c. Control of the registration roller
The resistration roller is controlled by the paper feed roller
(M301). When pre-paper feed takes place, the paper feed
roller rotates in reverse, and the drive force is transmitted to
the resistration drive roller and the registration driven roller
via the resistration drive roller shaft, causing paper feed to
take place.

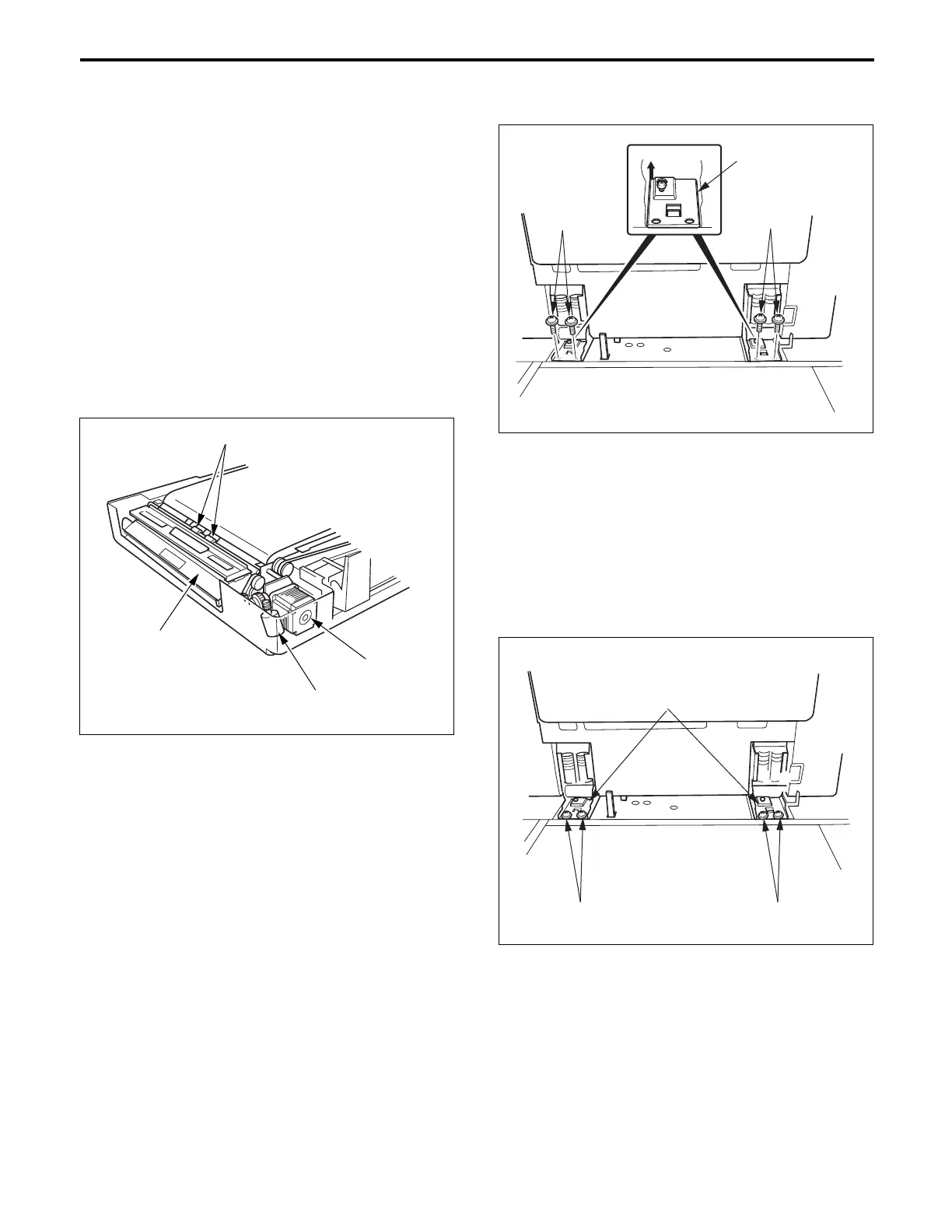

Set screws
Hinge retaining
plate
Set screws
(6) Re-install the above parts in the opposite sequence to
removal.
b. Adjustment
(1) Slacken the four set screws of the hinge retaining
plate.
Hinge retaining plates
Set screws
Set screws
Registration driven roller
Push pressure
motor (M034)
Original push
pressure plate
Paper feed
motor (M301)
[3] Disassembly and Re-assembly
1. Removing and Re-installing the ADF
Caution: Be sure that the power cord has been unplugged
from the power outlet.
a. Procedure
(1) Remove the rear main body cover.
(2) Disconnect the ADF connector (CN102) from the back
of the machine.
(3) Remove the set screw, then remove the original paper
feed tray.
(4) Open the ADF 90°, then remove the two set screws
from each of the left and right hinges.
(5) Remove the hinge retaining plate, then remove the
ADF.
