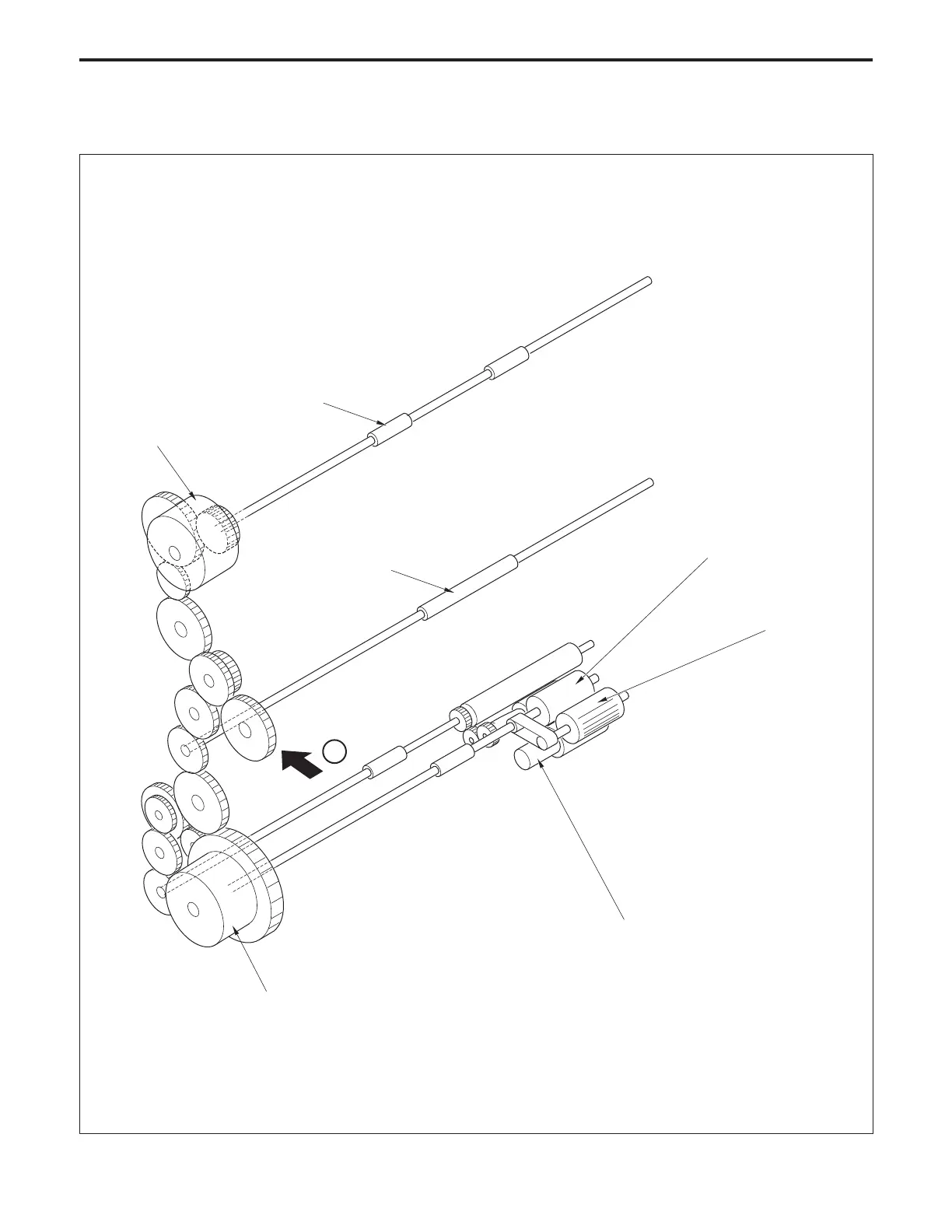

DRIVE SYSTEM DIAGRAM

[6] 1000-Tray Paper Feed/Conveyance Drive

Conveyance roller (upper)

Conveyance roller

(lower)

Feed roller

Paper feed roller

Double feed

prevention roller

LCT first feed MC

(CL 1)

Conveyance (CL 3)

DRIVE SYSTEM DIAGRAM-1
