2 - C - 1
EXTERNAL SECTION
EXTERNAL SECTION

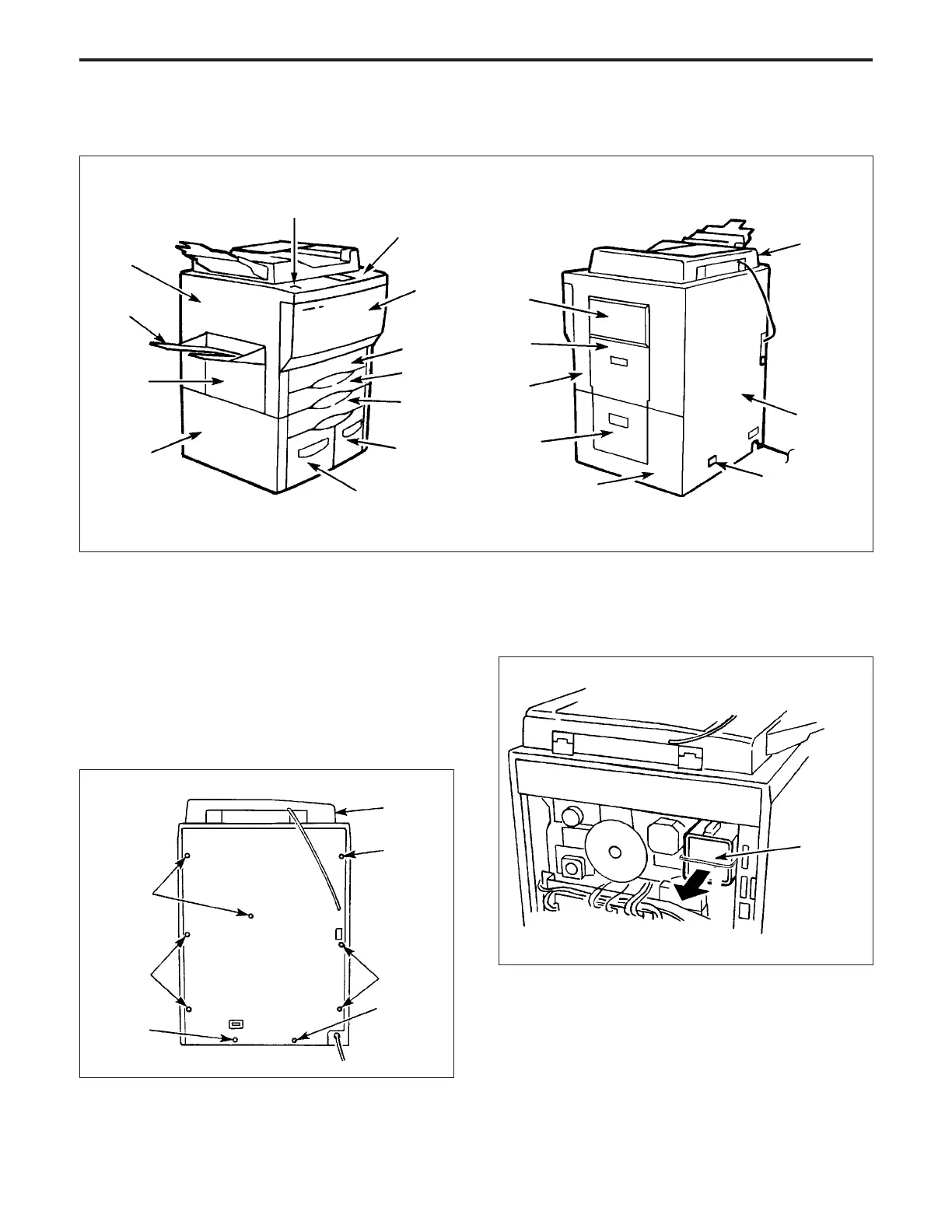

[1] Composition
[2] Disassembly and Re-assembly
Caution: Be sure that the power cord has been unplugged
from the power outlet.
Caution: When replacing the ozone filter, fix the new filter
securely to the inside of the main body.
1. Replacing the ozone filter (K)
a. Procedure
(1) Remove the nine set screws, then remove the rear
cover.
Paper feed
and
conveyance
door
Right side
upper cover
Right side lower cover
ADF
Rear cover
By-pass feed
table
Main switch
Paper exit tray
Left side
upper
cover
ADU
conveyance
door
Left side
lower cover
LCT-1500
tray
LCT-1000
tray
ADU
Lower tray
Upper tray
Front door
Operation panel
LCT
conveyance door
Outer I/F connector
ADF
Set screw
Set screw
Set screws
Set screws
Set screw
(2) Pull forward the ozone filter (K) and remove it.
Ozone
filter (K)
(3) Re-install the ozone filter in the opposite sequence to
removal.
Set screws
To Next Page
