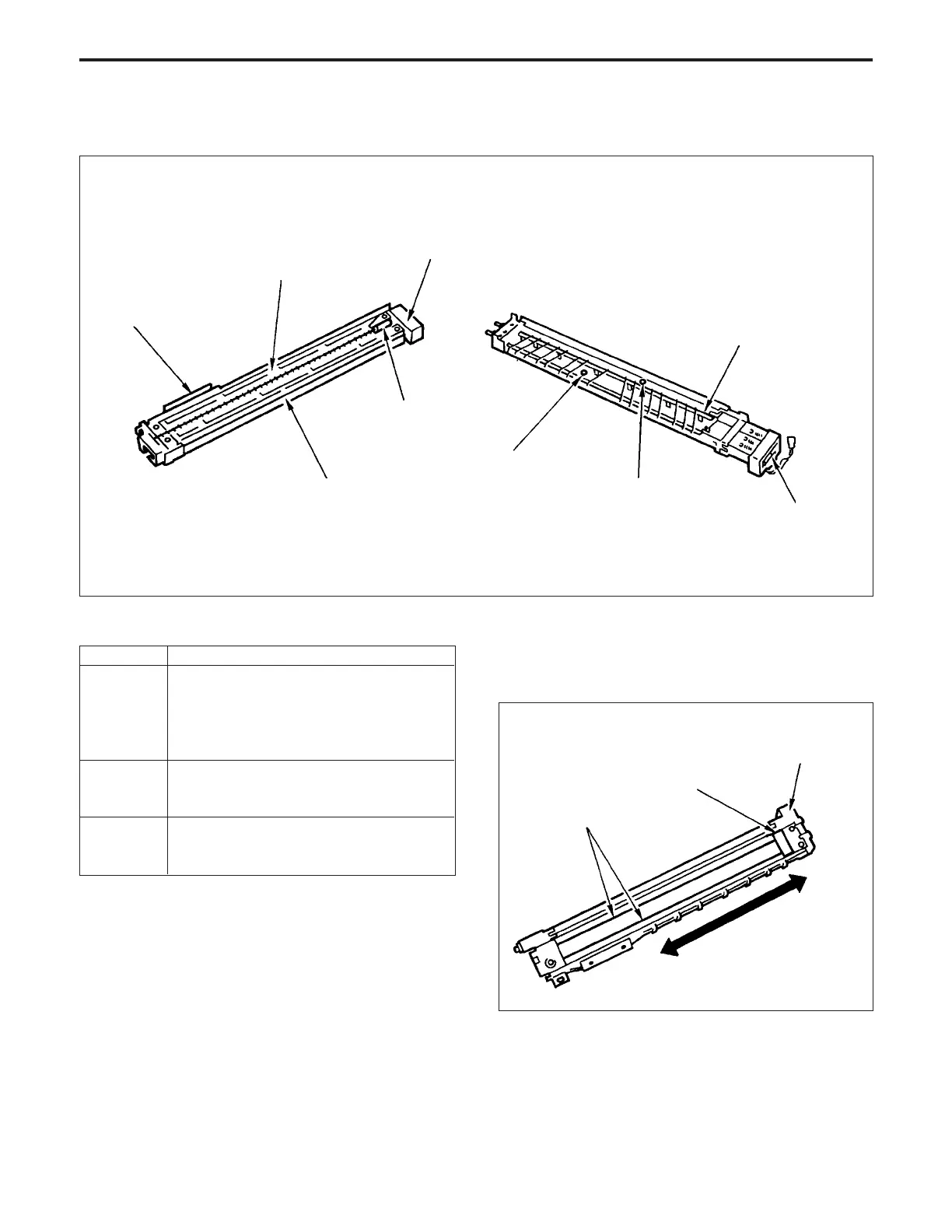

CORONA UNIT SECTION
CORONA UNIT SECTION
[1] Composition
[2] Mechanisms
Mechanism
Charging
Transfer
Separation
Method
Scorotron (DC negative corona discharge)
Charge wire: Tungsten 0.06 mm dia.
(gold-plated skin path)
Grid control: Stainless steel plate
With automatic wire cleaner
DC positive corona discharge
Charge wires: Tungsten 0.06 mm dia.
With automatic wire cleaner
AC corona discharge
Charge wires: Tungsten 0.06 mm dia.
With automatic wire cleaner
*1
*2
*1: Cleaning the charging corona wires
The charging corona unit has a wire cleaner. The charging
wire cleaning motor causes the charging wire cleaning
block to move back and forth, removing dirt from the wires.
<Charging corona unit> <Transfer and separation corona unit>
PCL
Charging wire cleaning knob
Charging wire cleaning
motor (M7)
Charging corona unit
Drum board
Transfer
corona unit
Separation
corona unit
Plunging prevention plate
Transfer and separation
wire cleaning motor (M8)
Charging wire
cleaning block
Charging wires
Charging wire
cleaning motor (M7)
CORONA UNIT SECTION-1
