TONER SUPPLY UNIT
Mechanism
Toner supply
Toner level detection
Toner agitating
Toner box
Toner leakage
prevention
TONER SUPPLY UNIT
[1] Composition
[2] Mechanisms
*1
*2
Method
Screw conveyance
Piezoelectric method 185g±50g
Agitator plate
Capacity 1330g
Toner supply shutter
*2: Toner supply shutter
When installing the toner cartridge, move the toner supply
unit forward.
This causes the toner supply port to close,
preventing leakage of toner. When you return the toner
supply unit to the main body (normal position), the toner
supply port coincides with the developing unit.

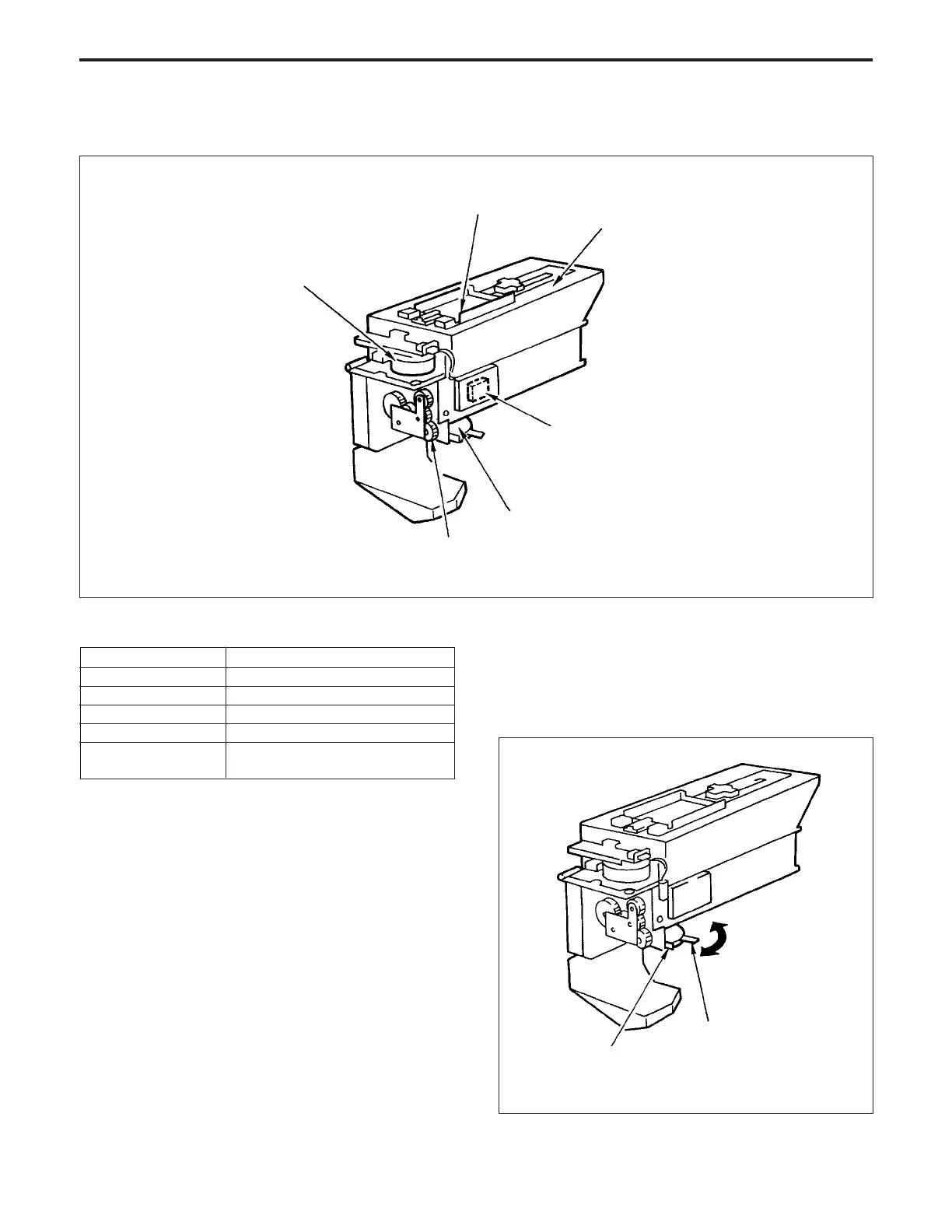

*1: Toner supply
a. The rotational force of the toner supply motor is trans-
mitted via gears to the toner conveyance screw and the
toner agitator shaft, causing the shaft to rotate.
b. The toner that has been agitated by the agitator plate
installed on the toner agitator shaft is supplied to the
developing unit.
Toner supply door
Toner box
Toner level detecting sensor (TLD)
Shutter
Toner conveyance screw
Shutter
Toner supply port
Toner supply motor
(M10)
TONER SUPPLY UNIT-1
