PROCESS

[5] Separation

Toner remaining on the drum is removed by the cleaning blade.

[7] PCL

The PCL erases the potential remaining on the surface of the

drum.

The separation corona unit erases the charge on the paper by

applying an AC discharge from the back of the paper, thus

enabling the paper to separate from the drum under its own

weight.

[6] Cleaning

PCL

Separation corona unit

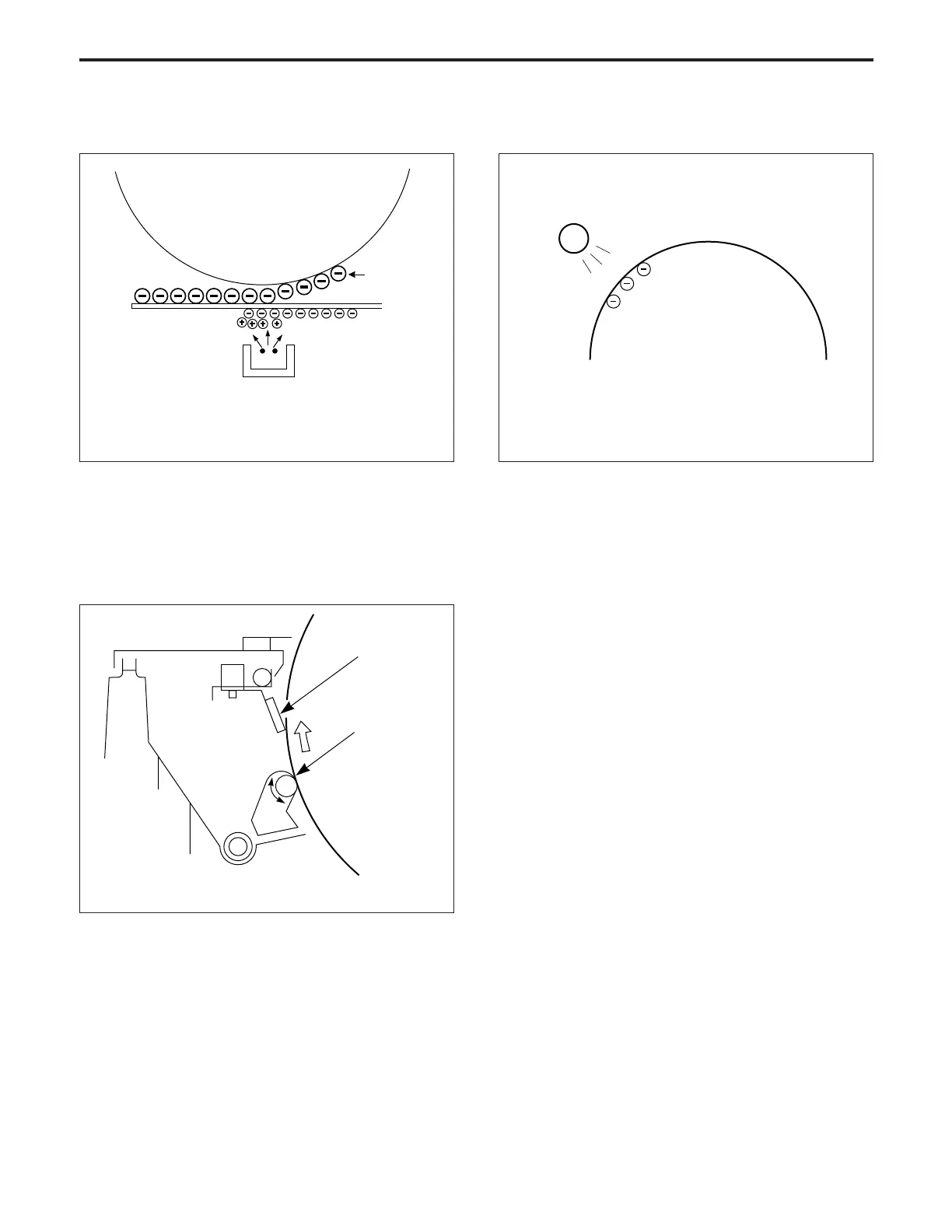

Fig.26

Fig.28

Cleaning blade

Toner collecting roller

Drum

Fig.27

Drum
