ADU PAPER FEED/CONVEYANCE SECTION
ADU PAPER FEED/CONVEYANCE SECTION

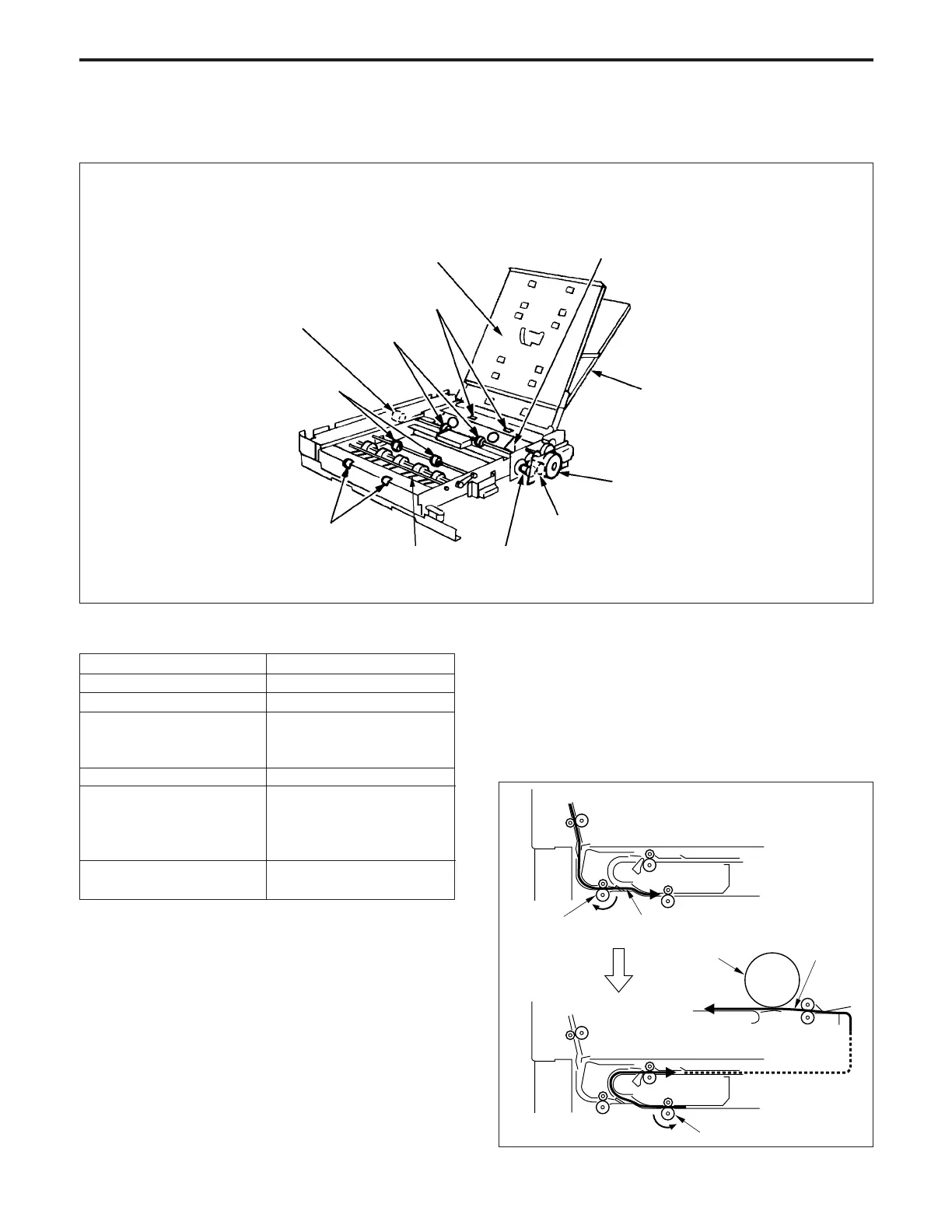

[1] Composition
ADU paper feed motor (M151)
ADU timing clutch (CL153)
Conveyance guide plate (lower)
Paper exit rollers
Paper exit rollers
Paper exit rollers
Paper exit rollers
ADU reversal clutch (CL152)
ADU paper feed clutch (CL151)
Conveyance guide plate (upper)
Reversal roller (at bottom)
[2] Mechanisms
*1: Non-stack paper feed mechanism
The paper in the paper exit/conveyance section is fed to the
paper feed unit by the conveyance rollers. When the
trailing edge of the paper is completely inside the paper
feed unit, it is exited to the conveyance unit by the reversal
roller without being stacked. At this time, the paper is exited
from the trailing edge side, hence the face side and reverse
side are inverted in the conveyance unit.
Mechanism
Paper feed
Paper path selection
Paper conveyance
Conveyance drive
Jam clearance
Applicable sizes of paper
Method
Non-stack selection
Selector gate
Conveyance roller (one)
Reversal roller (one)
Paper exit rollers (four)
Timing belts (four) + gear
Selector gate, conveyance
guide plate (B), opening/
closing of conveyance
guide plate (upper)/(lower)
A3 to A5R/11" × 17" to
5
1
/
2
" × 8
1
/
2
"
*1
*2
*4
Conveyance roller Face side
Drum
Reverse side
Reversal roller
Decurling belt
