ADU PAPER FEED/CONVEYANCE SECTION
• Selector gate section
• Paper feed unit section
• Conveyance unit section

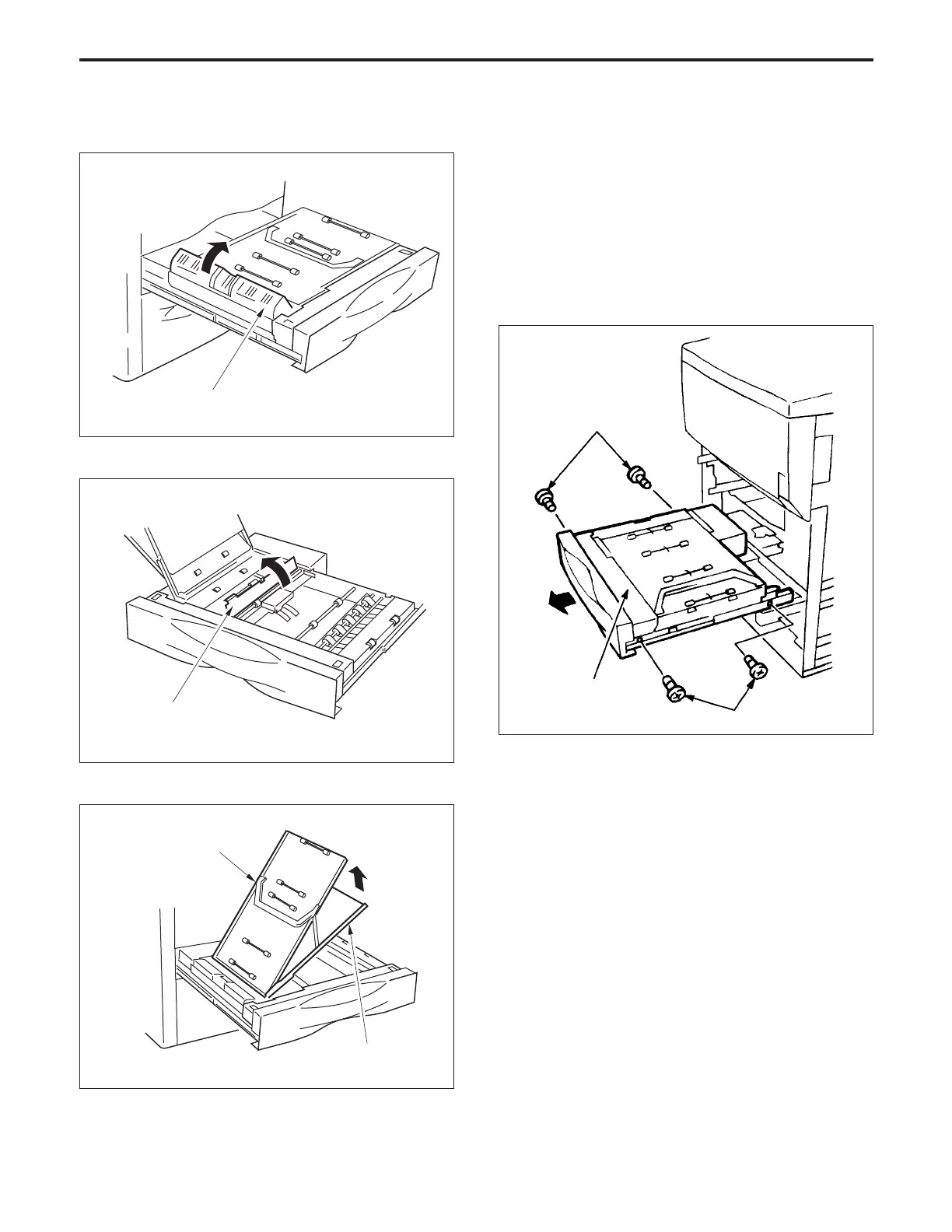

Selector gate
Conveyance guide plate (B)
Conveyance guide plate (upper)
Conveyance guide plate (lower)
[3] Disassembly and Assembly
1. Removing and Re-installing the Paper Feed/
Conveyance Section
Caution: Be sure that the power cord has been unplugged
from the power outlet.
a. Procedure
(1) Withdraw the ADU unit, then remove the four set
screws.
(2) Completely withdraw the ADU unit, then lift out the
ADU unit.
(2) Re-install the paper feed/conveyance section in the
opposite sequence to removal. In this case, however,
install the front left and right set screws first.
Set screws
ADU paper feed/
conveyance section
Set screws
