5 - 14
Conveyance belt

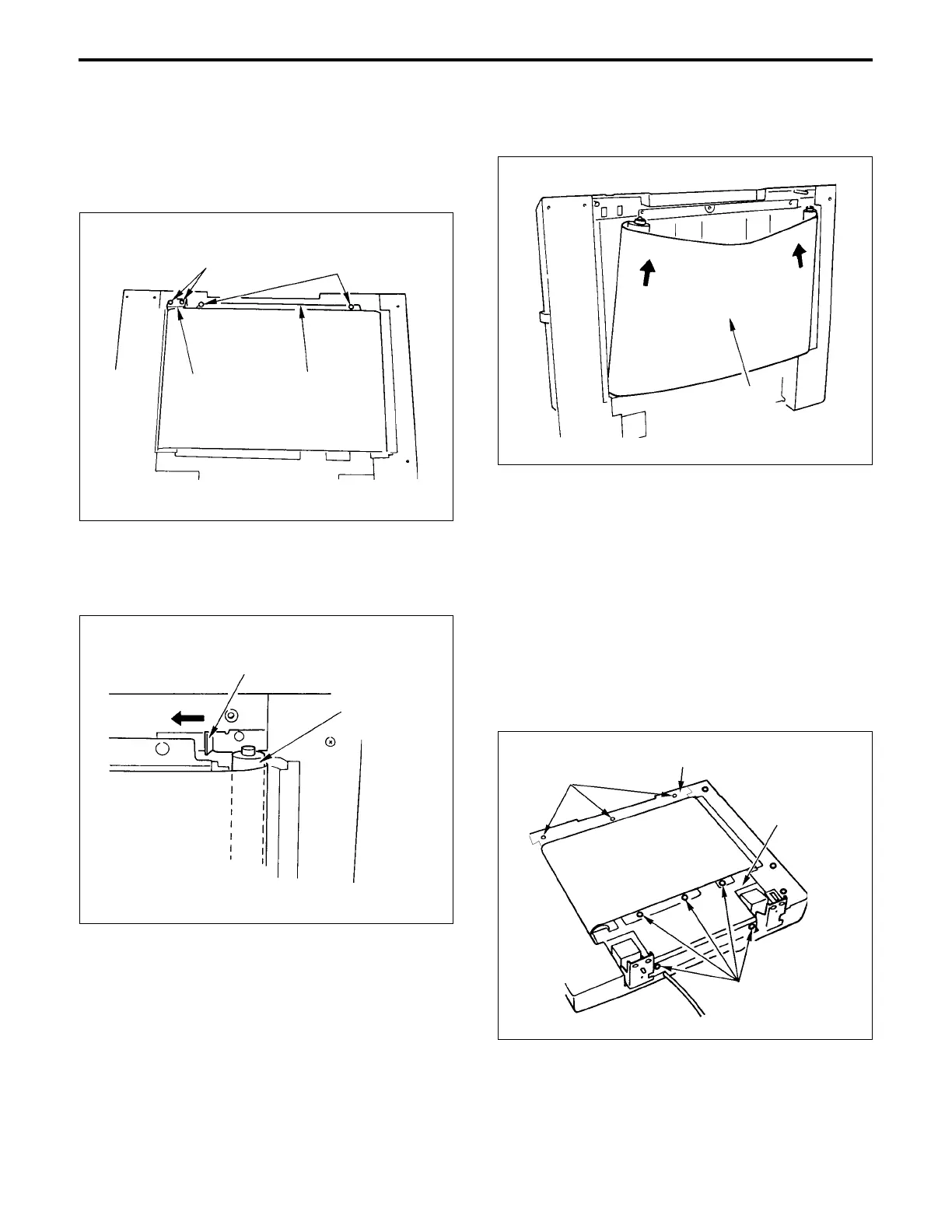

(2) Remove the two set screws fixing the front of the base
plate ass'y.
(3) Remove the two set screws and remove positioning
piece/F.
Positioning
piece/F
Set screws
Set screws
Base plate
ass'y
(4) Pull the tension board/F ass'y in the direction of the
arrow, then remove the driven roller.
Tension board/F ass'y
Driven roller
(5) Remove the conveyance belt.
(6) Re-install the above parts in the opposite sequence to
removal.
Set screws
Body base
plate (C)
Set screws
Body base plate (B)
3. Replacing the Drive Roller
a. Procedure
(1) Remove the five set screws, then remove the body base
plate (C).
(2) Remove the three set screws, then remove the body
base plate (B).
(3)
Remove the conveyance belt. (Refer to 2.Replacing the
conveyance belt)
