FIXING UNIT
2 - S - 1 - 1

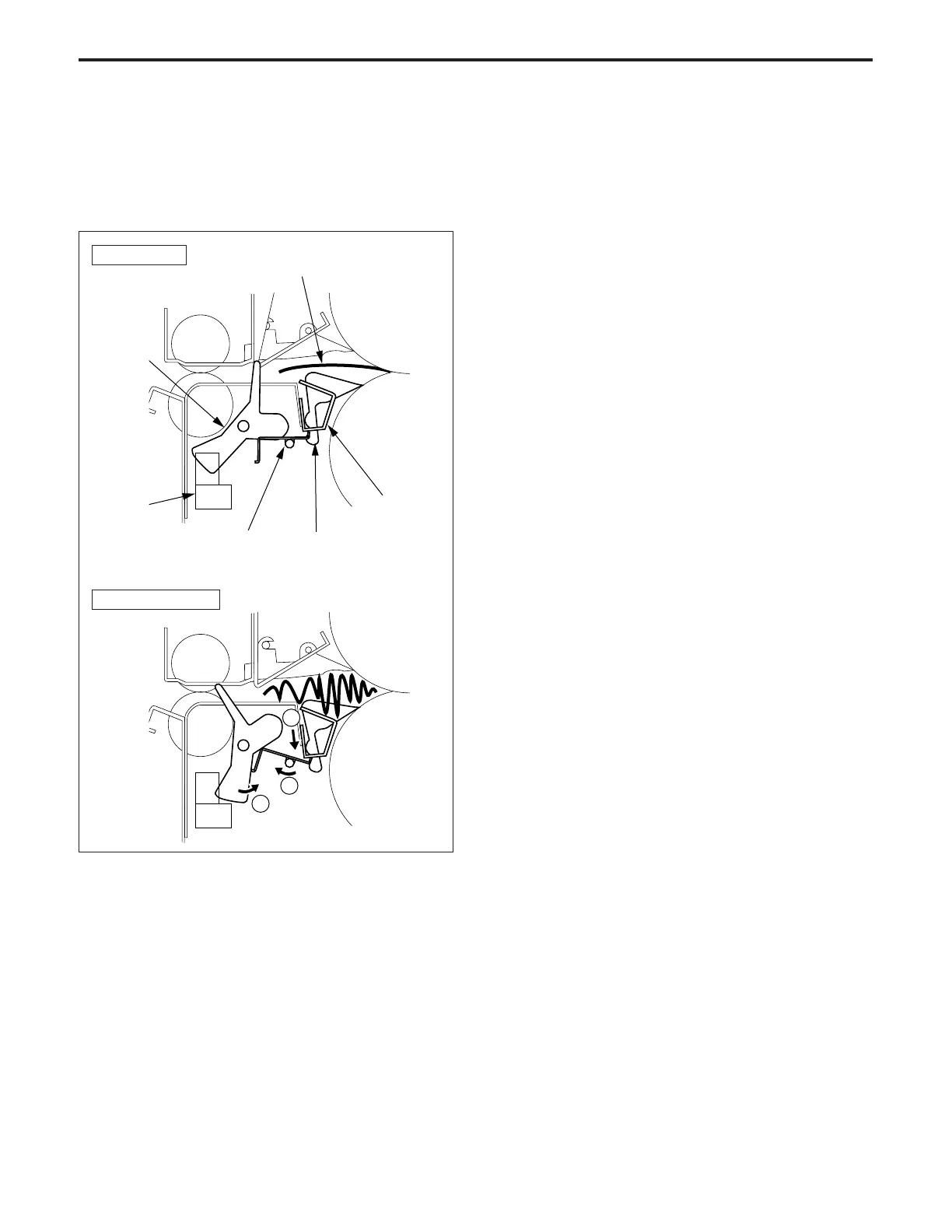

*3: Jam sensor
When a jam occurs in the fixing paper exit section, paper
exit plate/B is pushed down and the photosensor (PS25)
senses the jam by means of the operation of the jam sensor
plate and actuator.
1
2
3
Normal status
Paper
Actuator
Photosensor
Jam sensor
plate
Lower fixing
claw
Paper exit
plate/B
When a jam occurs
