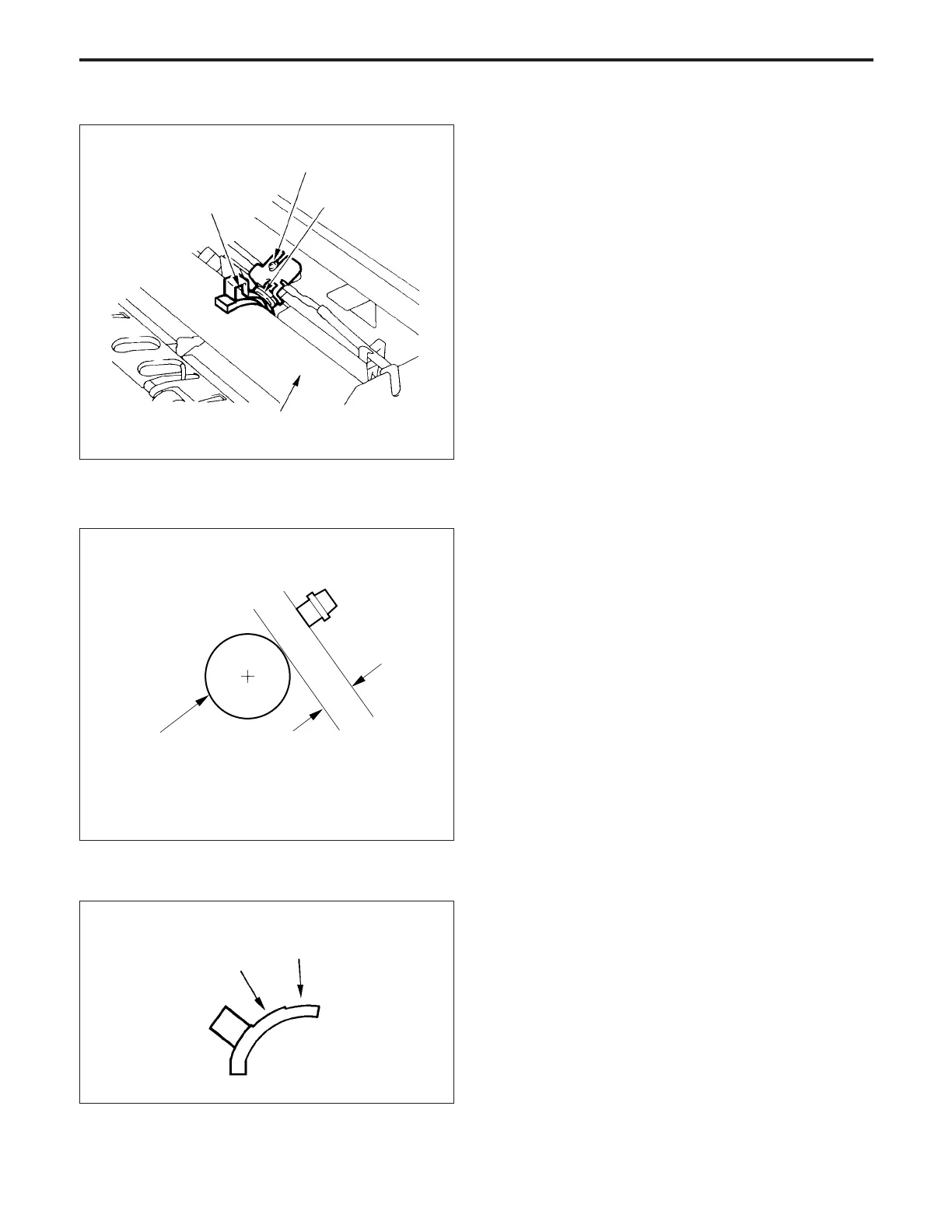

2 - S - 11
FIXING UNIT
Upper fixing roller
Thermostat (upper)
Thermostat positioning
jig (for upper roller)
Set screw
(a) Set the distance “a” between the upper fixing roller
and the thermostat (upper) so that it is equal to the
thickness of the thermostat positioning jig at A .
a
Standard: a = 3.75 ± 0.25 mm
Thermostat
(upper)
Upper fixing roller
(b) When adjusting the distance, should not be al-
lowed to run up over B .
B
A
(2) Coat the set screw of the installed thermostat (upper)
with screw lock agent.
(3) Connect the two fastons.
(4) Install the other parts in the opposite sequence to
removal.
FIXING UNIT-1
