DIAGRAMS
3 - 2

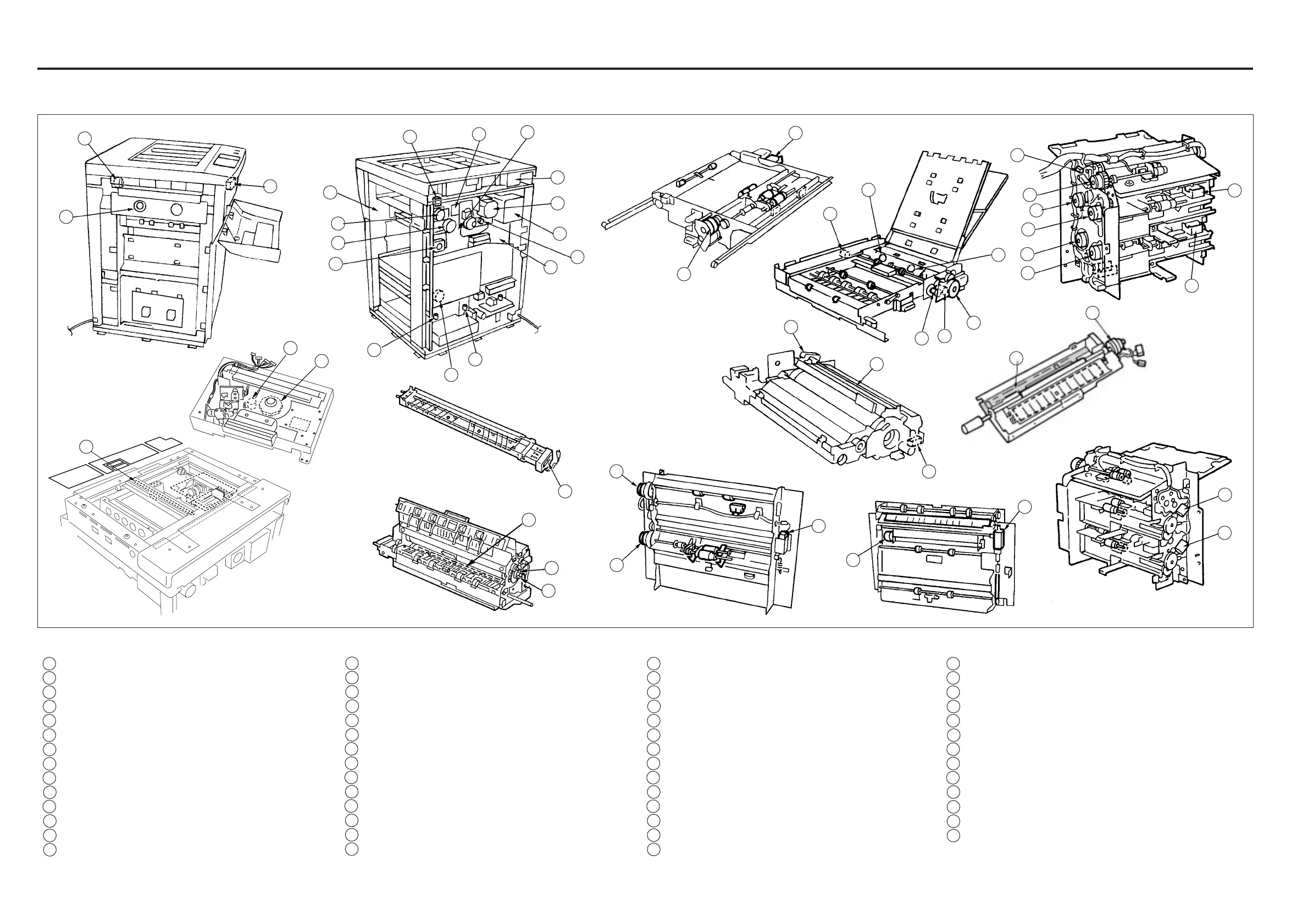

2.Load
1
CL1 LCT paper feed CL (1000)
2
CL2 LCT paper feed CL (1500)
3 CL3 Conveyance CL
4 CL151 ADU paper feed CL
5 CL152 ADU reversal CL
6 CL153 ADU timing CL
7 C(K) Key counter
8 C(T) Total counter
9 FM2 Optics cooling fan
10 FM11 Polygon cooling fan
11 FM14 Conveyance suction fan
12 — —
13 FM16 Main body cooling fan
14 FM22 E-RDH cooling fan
15 FM30 Developing suction fan
16 FM152 ADU cooling fan 1
17 FM153 ADU cooling fan 2
18 L1 Exposure lamp
19 L2 Fixing heater lamp 1
20 L3 Fixing heater lamp 2
21 L4 Fixing heater lamp 3
22 M1 Main motor
23 M3 Developing drive motor
24 M4 Drum motor
25 M5 Polygon motor
26 M7 Charger cleaning motor
27 M8 Transfer/separate cleaning motor
28 M10 Toner supply motor
29 M12 Optics drive motor
30 M17 Upper tray motor
31 M18 Lower tray motor
32 M40 Laser correction motor
33 M35 Developing correction motor
34 M140 LCT paper feed motor
35 M141 LCT tray motor (1500)
36
M142 LCT tray motor (1000)
37 M151 ADU paper feed motor
38 M152 ADU fan motor
39 MC3 2nd paper feed MC
40 MC5 Paper feed MC (upper)
41 MC6 Paper feed MC (lower)
42 MC7 Paper feed MC (by-pass)
43 MC8 Conveyance MC1
44 MC9 Conveyance MC2
45 MC10 Cleaner MC
46 SD1 1st paper feed SD (upper)
47 SD2 1st paper feed SD (lower)
48 SD3 1st paper feed SD (by-pass)
49 SD4 Separation claw SD
50 SD5 Conveyance SD
51 SD140 LCT paper feed SD (1500)
52 SD141 LCT paper feed SD (1000)
53 SD152 ADU gate SD
54 PCL Pre-charging lamp
55 TSL Transfer Synchronization lamp
9
14
8
32
25
18
21
20
19
27
35
34
36
7
10
24
50
29
22
13
45
11
33
23
15
2
51
6
17
16
37
4
5
26
54
39
55
41
43
40
44
42
48
46
47
30
31
53
49
38
52
3
1
DIAGRAMS-1
