DIAGNOSTICS
4 - 49

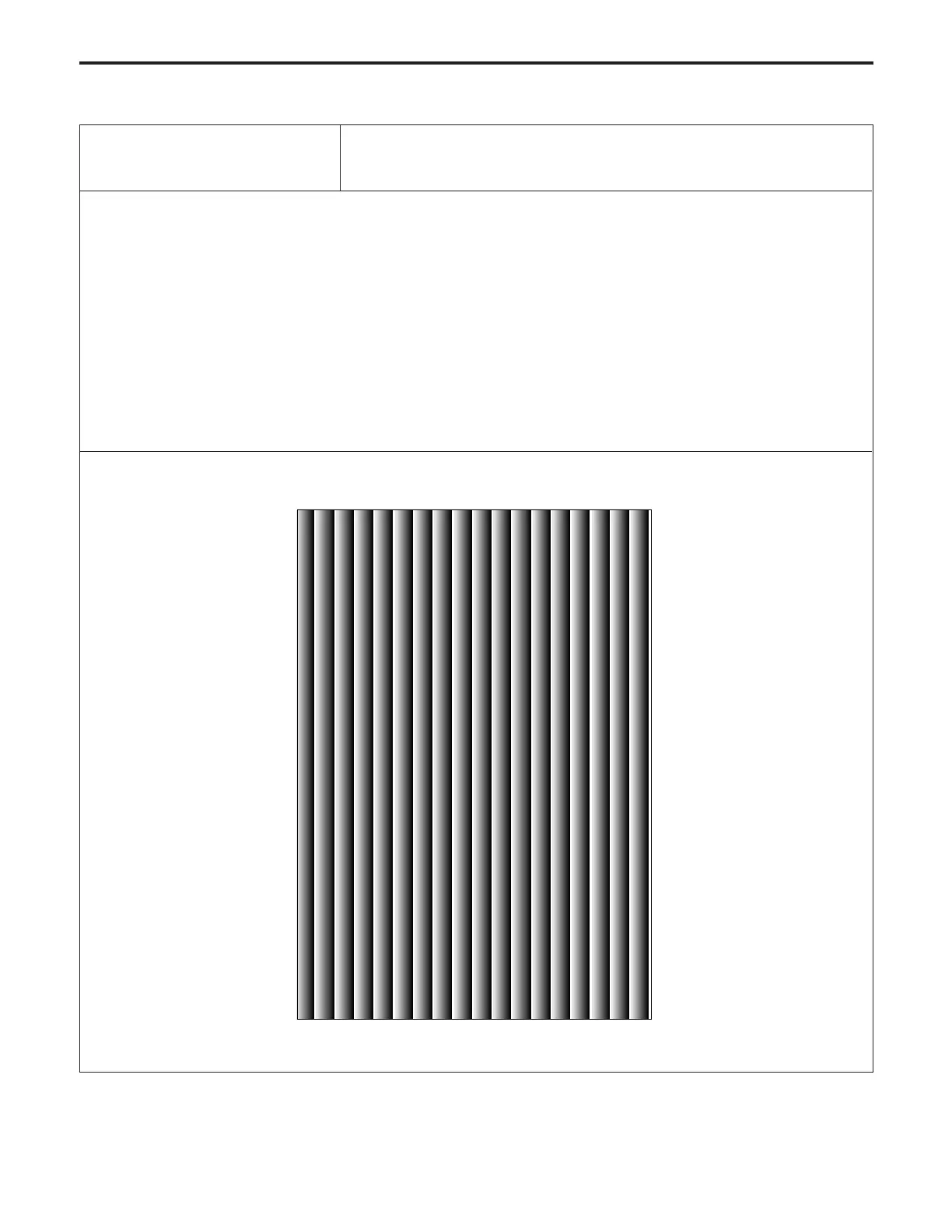

Test pattern
[Check item]
This test pattern is intended to judge whether or not the abnormal section is located before the image process-
ing board. If the test pattern is an 8-bit output and is normal, the fault lies in the CCD board before the image
processing board.
30 Read GA built-in pattern
