DIAGNOSTICS
4 - 51

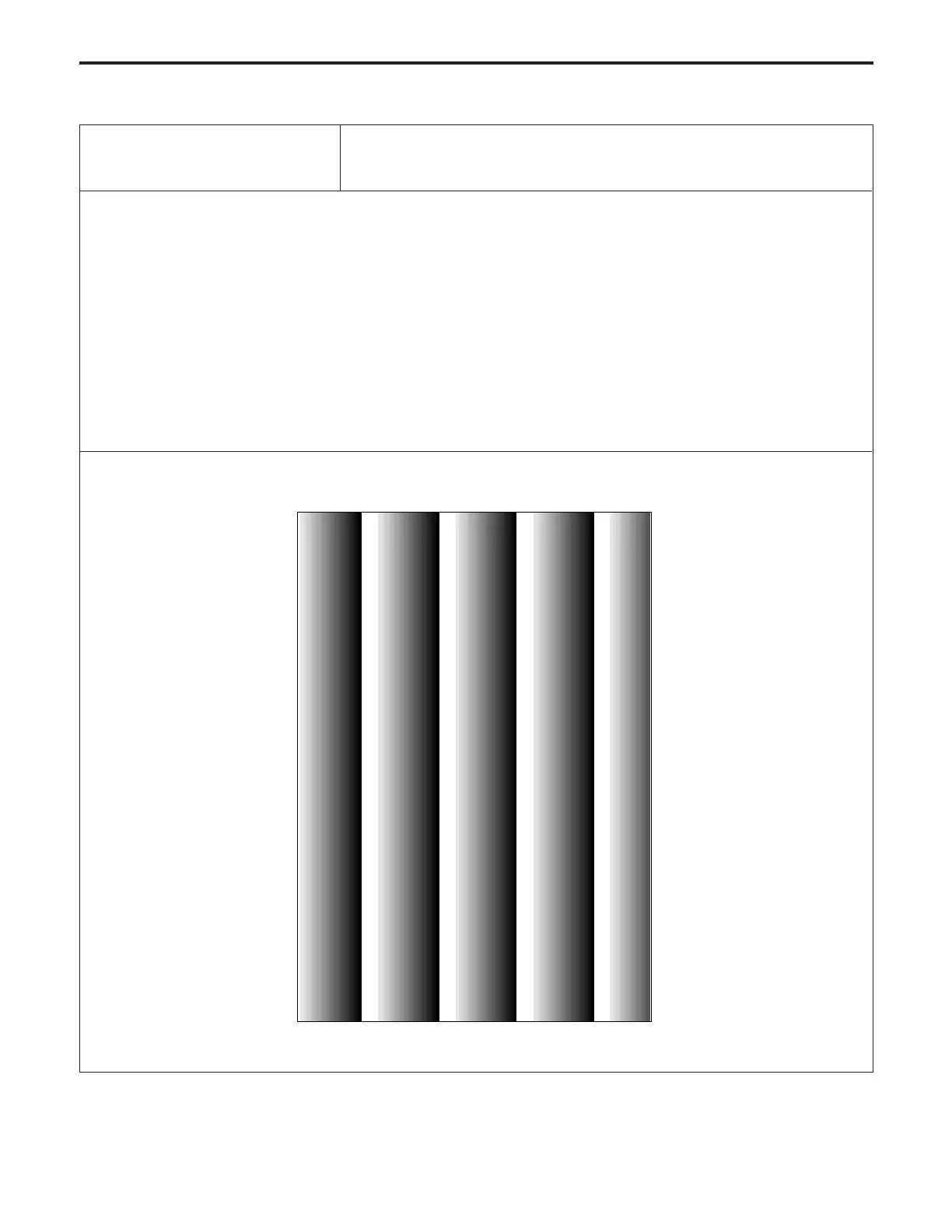

Test pattern
[Check item]
This test pattern is intended to judge whether or not the cause of an abnormality is located in or after the
image processing board. If the test pattern is abnormal, there is an abnormality in or after the image process-
ing board (PWM function or after).
36 Write GA built-in pattern
